CD Automation srl CD3000E-3PH from 25A to 500A User’s Manual
28

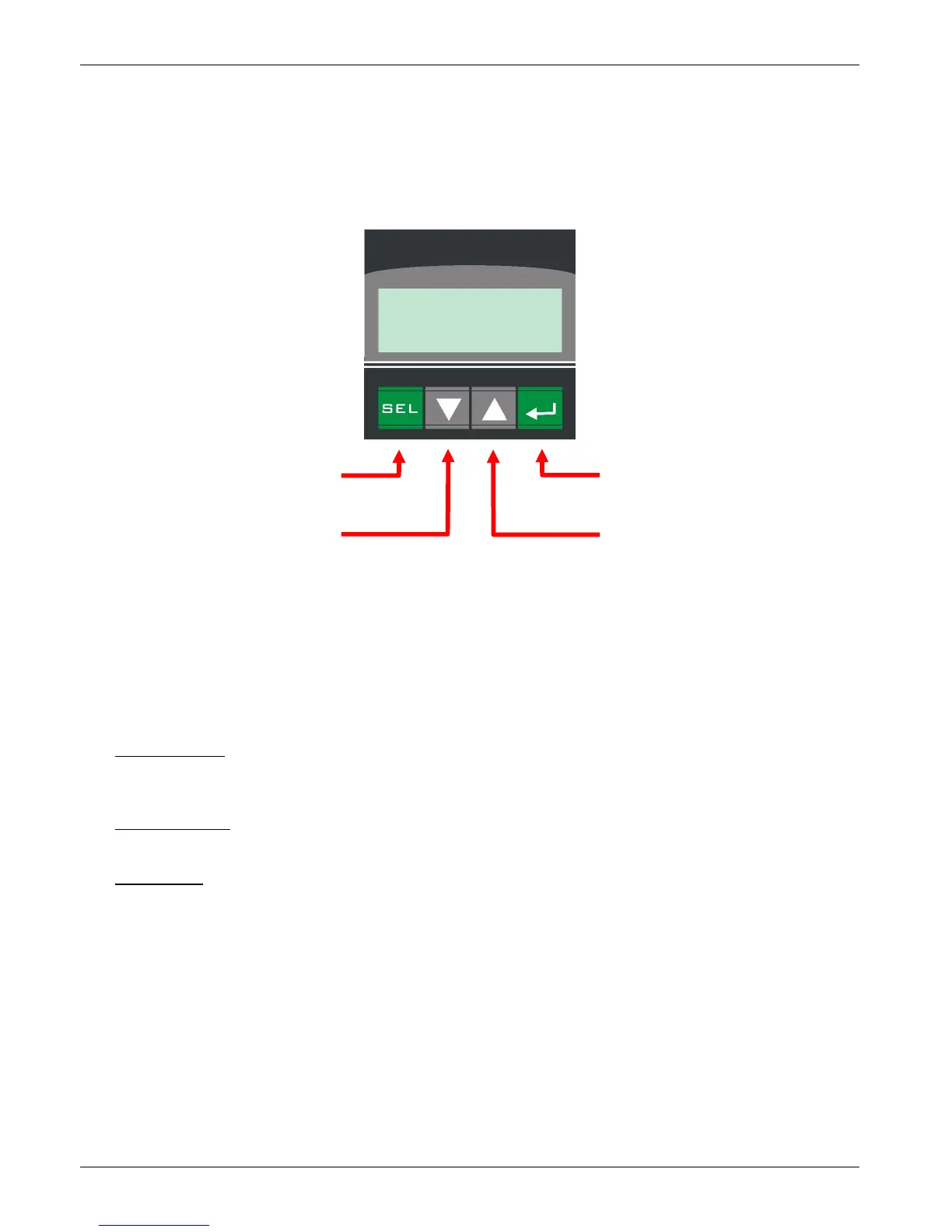

10 Control Panel
The Control Panel is placed on the front of the thyristor unit, on his display you can visualize the alarms,
the input and output signals and all the configuration parameters (see par. 14).
SELECTION Key
ENTER Key
DOWN Key
UP Key
The function keys is the following:
• The SELECTION key is used for enter and exit from the menu.
• The UP key and DOWN key is used to scroll the parameters in the menu and to change data.
• The ENTER key is used to edit the parameters and to save the modified values.
The Control Panel have three menu, and to enter in one of them you must set correctly the parameter
P000  :
• Operator Menu (P000  = 0)
This menù contains a reading parameters that give information on the state of the unit, it include
also the base parameters for quick start, like the value of current and voltage load and the Set-point
data.
• Hardware Menu (P000  = 5)
This menu contains all the configuration parameters for analogic and digital I/O, and the
parameters to set the serial port like the address and the baudrate.
• Setup Menu (P000  = 10)
This menù contains all the setting parameters to configure the thyristor unit, like the firing type, the
current limit, [ecc].
