CD Automation srl CD3000E-3PH from 25A to 500A User’s Manual
19

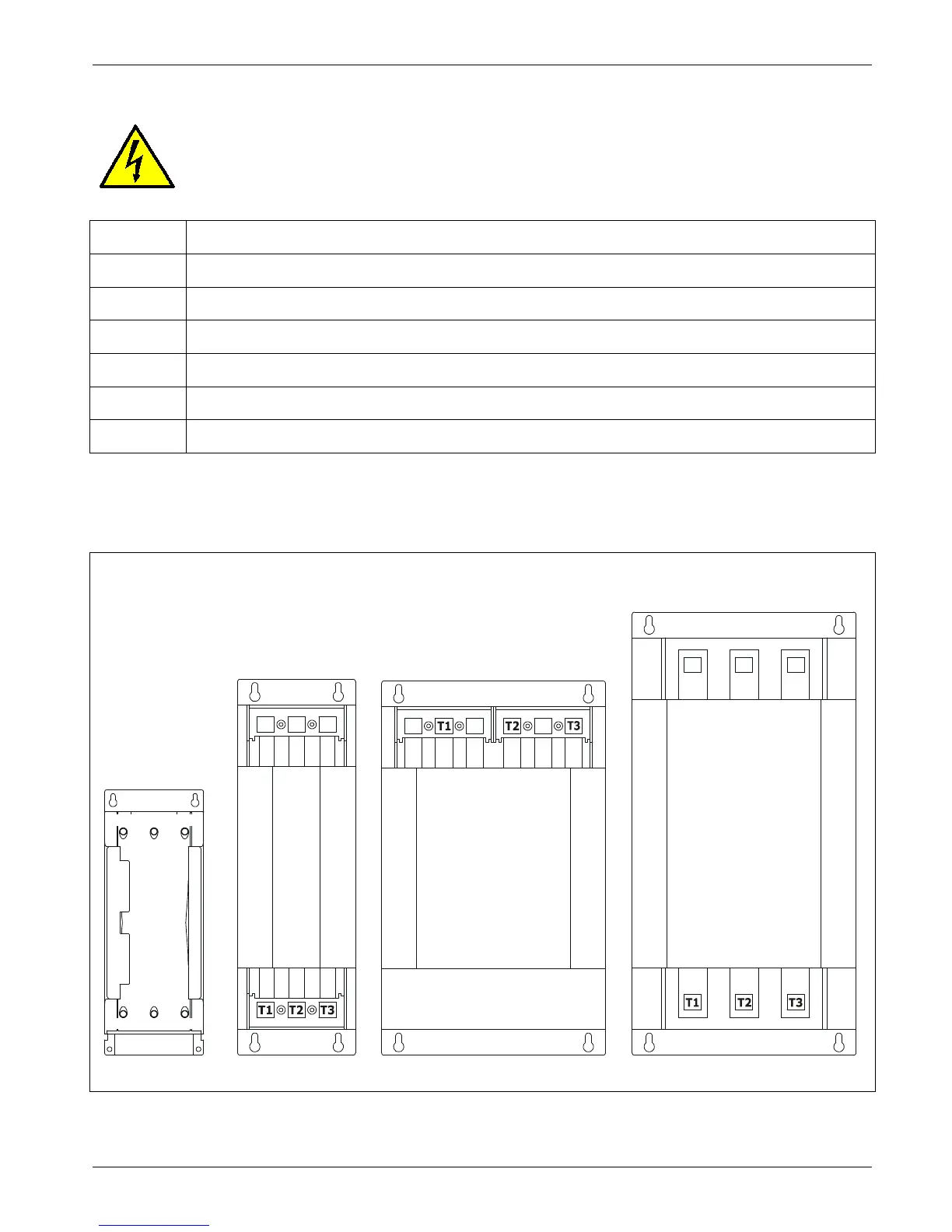

7.2 Power Terminals
Warning: Before connecting or disconnecting the unit check that power and control cables
are isolated from voltage sources.
Terminal Description
L1 Line Input Phase 1
L2 Line Input Phase 2
L3 Line Input Phase 3
T1 Load Output Phase 1
T2 Load Output Phase 2
T3 Load Output Phase 3
Size S09
L1 L2
L3
T1 T2
T3
Size S11
L1
L2
L3
Size S13
L1 L2
L3
Size S14
L2L1 L3
