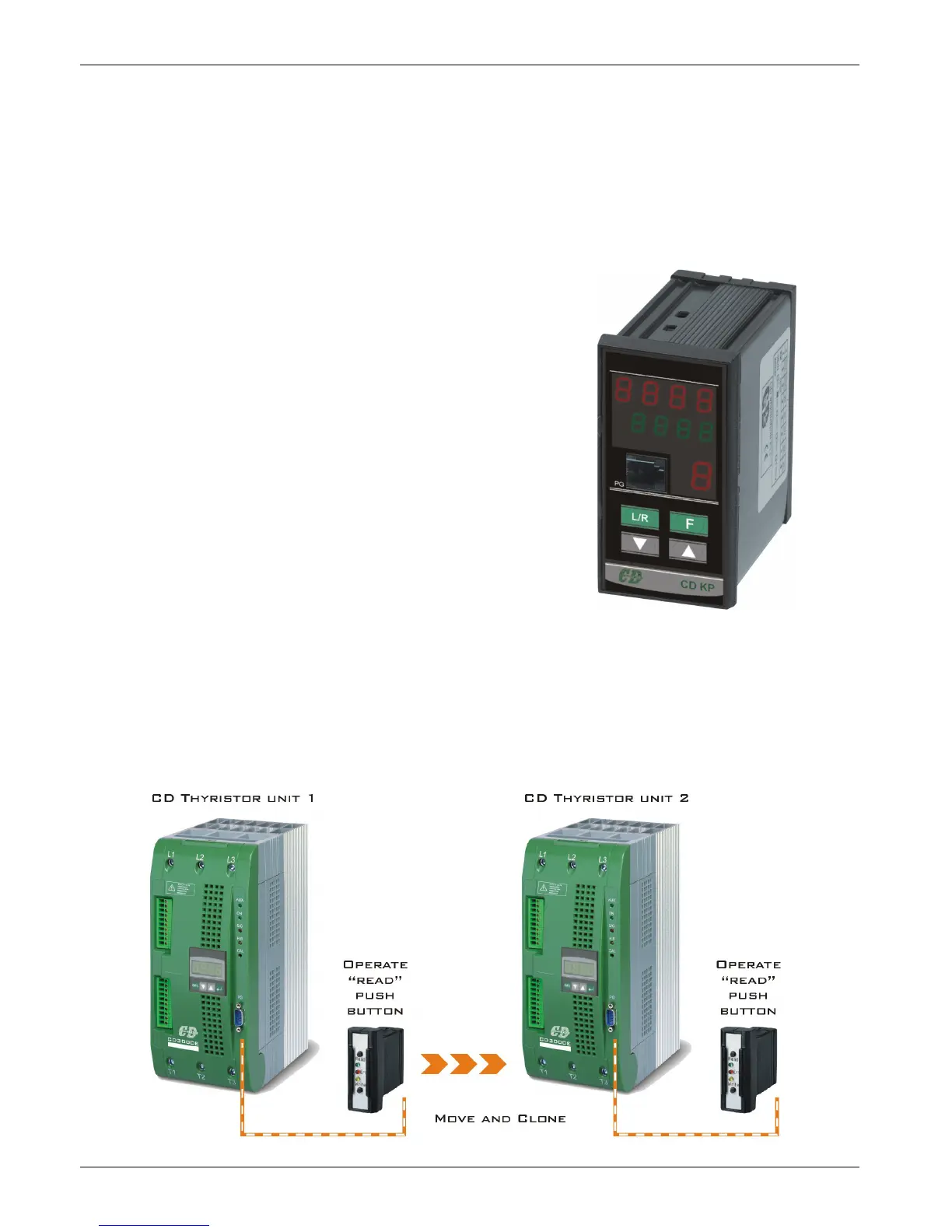

2.2 CD-KP
The CD-KP is designed to be connected with all CD Automation's Thyristor units via RS485
communication. On front unit is possible to read the principal operational parameters of the unit like:
power, tension, current, reference, alarms, etc.
One of these variables can be selected and retransmitted via an isolated output (4÷20mA or 0÷10V)
All the menus (except the operator menu) can be protected by password to avoid accidental change of
configuration parameters by unauthorised personnel.
On front unit is also available a plug-in connector RS485 for connect a PC with the Thyristor units
without open the cabinet and without stop the production process.
Technical Specification:
• Use in Local/Remote
• Set Point Ramp UP - Down
• Scroll selection of:
- Set point
- Power output
- Current
- Voltage
• Display indication for:
- Heater Break alarm
- SCR short circuit
• Password for configuration parameters
• Plug-in connector on front to use software configurator
• Retransmission (4-20mA or 0-10Vdc) of one of these
parameters: Power PV, Current, Voltage.
• Dimension 48x96x92mm (LxAxP)
• Comply with EMC, CE marked
2.3 CD-EASY
CD-EASY is a Memory of support used for maintenance people that is not confident in personal
computer.
With the CD-EASY is possible memorize the configuration of one Thyristor Unit and paste it into another
in few seconds.
CD-EASY could be loaded with the personal configuration of the unit and stored together with the
system drawings in a convenient place, enabling unit reconfiguration within seconds if require.
