4.1.2. Photo Sensor
The W measure with a photosensor is exactely the same as in manual mode, except that the 'START' and 'STOP'
pulses are generated by the sensor. In photo sensor mode, the 'F3' (START & STOP) will not be active.

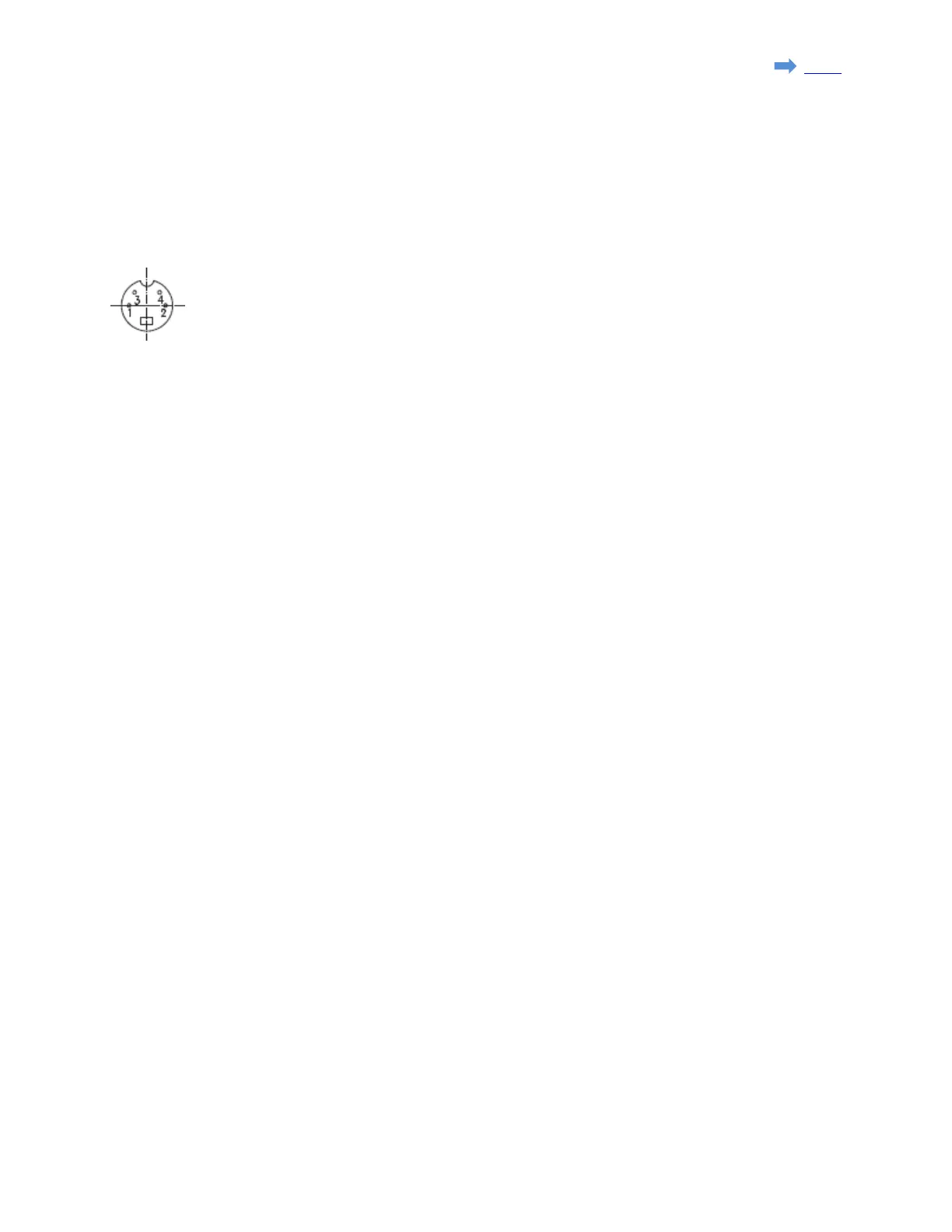

You can connect any photo sensor using a MiniDIN 4-pins connector connected to the left connector of the
CD400.
- Shielding: Ground (GND 0V).
- Pin n°2: photo sensor signal (the signal should be low when the reference
object/reflector is not detected).
4.1.3. Rolling road.
[Under development]
4.1.4. Constant speed.
[Under development]
4.1.5. Draw-wire.
[Under development]
