CDVI ATRIUM A22K - Installing the A22 K PC Board

16
cdvigroup.com
A22K
High Security Access Control 2-Door Module


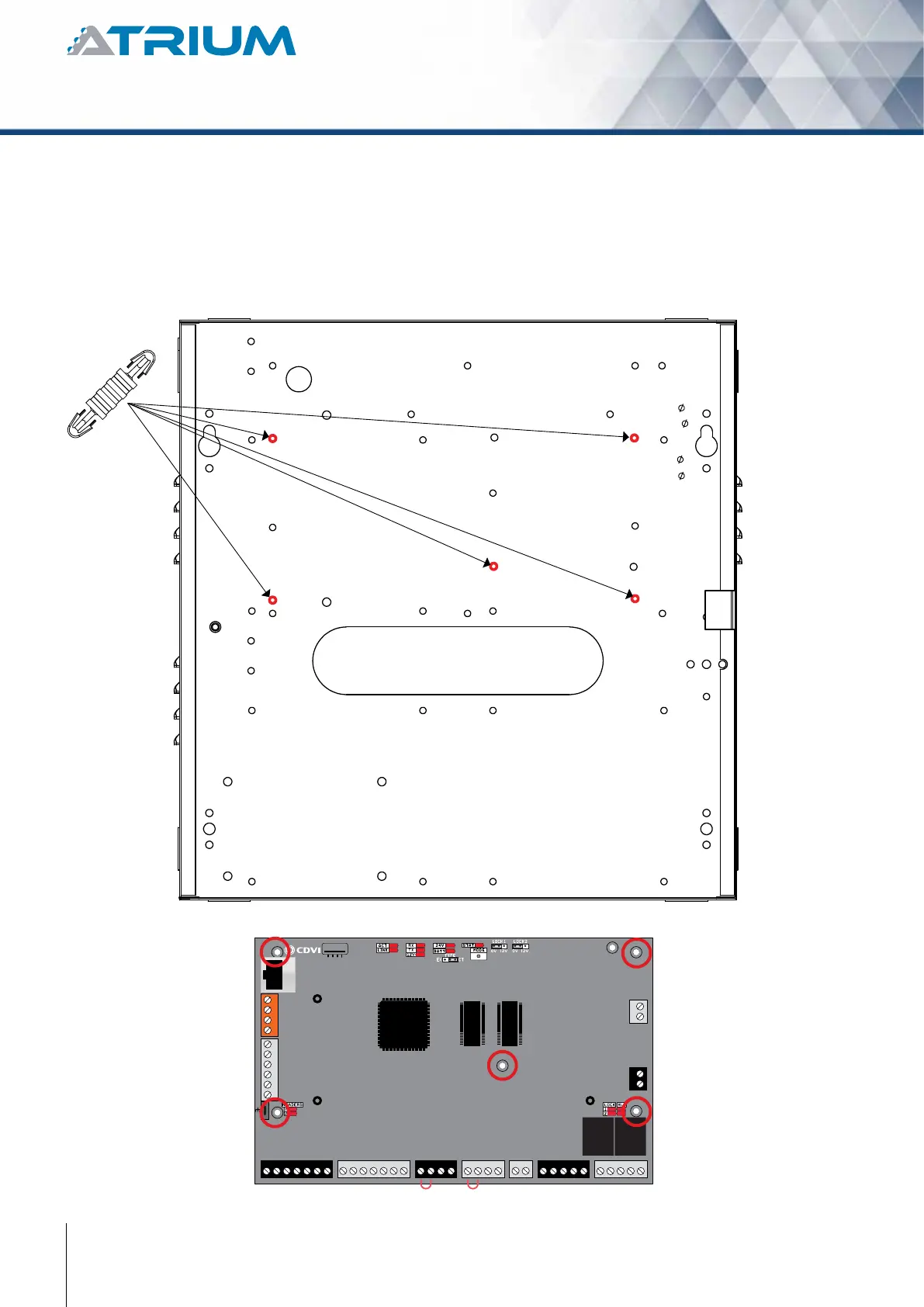

Install the 5 fasteners (PCB holder) supplied respectively to the box holes identied in red in the following
picture. Install the A22K PCB by aligning the fasteners with the corresponding PCB holes and pressing rmly to
secure the PCB in place.
