A22K
High Security Access Control 2-Door Module

Do not power up the A22K until all connections are completed.
The module operates from any 120/240 Vac source using the supplied AC/DC power supply and provides fully
monitored power solutions using:
• Smart Battery Deep discharge prevention with automatic electronic cut-o.
• Programmable & Adaptive battery charging algorithm (250mA (default), 500mA, or 1A).
• Intelligent battery monitoring & charging algorithms allowing optimum performance using standard
lead acid or gel cell type batteries.
• Real Time Monitoring algorithm for ‘Battery Low/Disconnect/Reversal’ and ‘Insucient Main Power’.

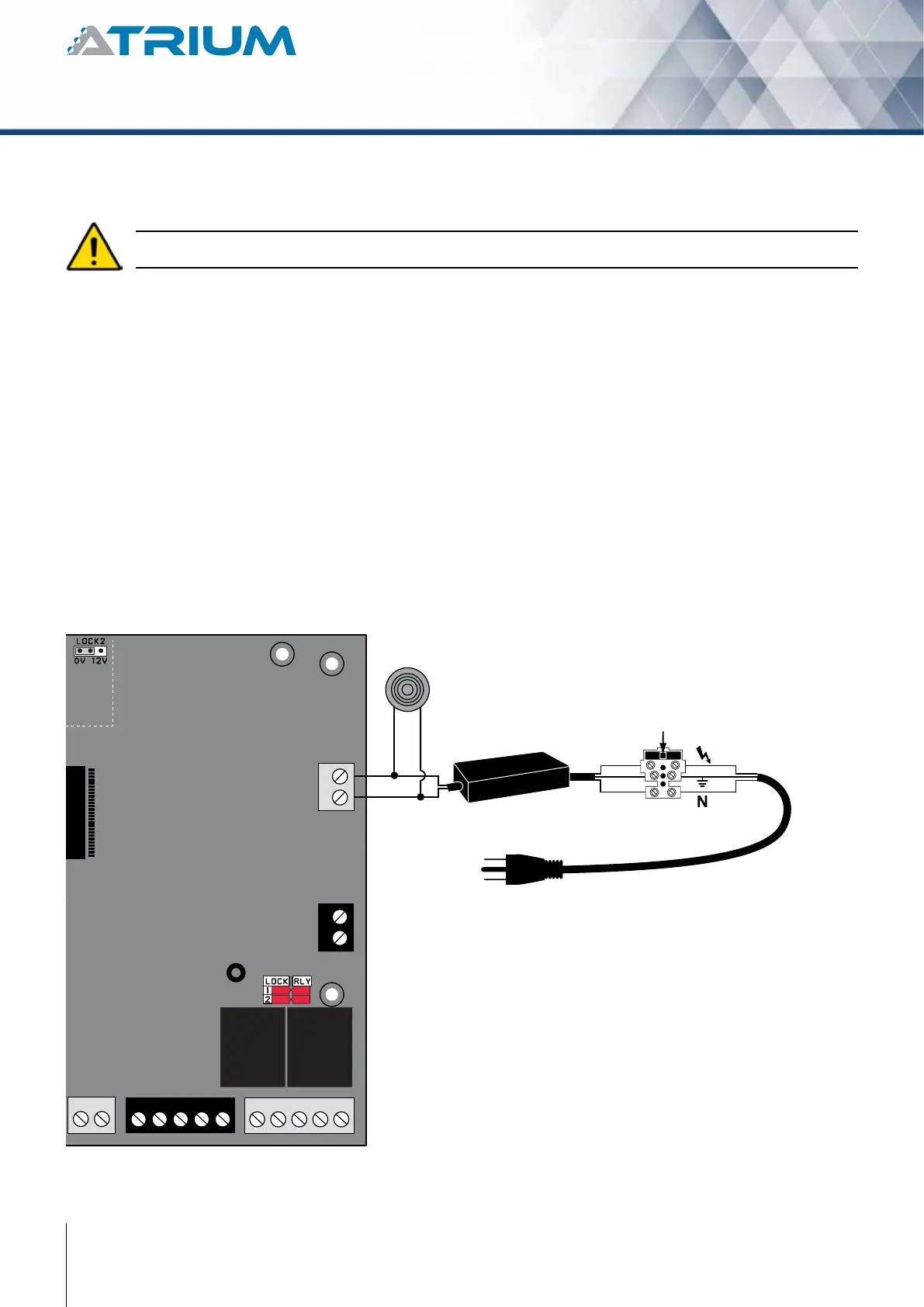

AC Source
The AC to DC power supply is pre-installed in the A22K box but needs to be connected to the PCB. Simply plug
the two pin terminal to the input power supply.
+12V DC
+24V DC
-
+12V DC
-
+12V DC
A+
B-
Input 1
Input 2
Output 1
Output 2
INPUT
POWER
SUPPLY
RS485
LOCAL
BUS
ETHERNET
PORT
SYSTEM STATUS
EXTRA
INPUTS/
OUTPUTS
ETHERNET LOCAL BUS LOCK 1 & 2
JUMPER SETTING
STATUS
24V DC INPUT/
BATTERY/
MODULE TYPE
BATTERY
BACKUP
Red
Power Supply
LED Indicator
Power Supply:
Input: 120-240Vac, 1.2A, 50Hz/60Hz
Output: 24Vdc @ 2.5A
(Do not connect to a receptacle controlled by a switch).
Fuse Rating:
250VAC, 2.5 A
(-55C to +125C)
White
Neutral
Live
Ground
READER DOOR 1
INPUT
DOOR 1
LOCK
DOOR 1
LOCK
DOOR 2
INPUT
DOOR 2READER DOOR 2
ENCLOSURE
TAMPER
SWITCH
INPUT
BUZ GRN RED D1 D0 GND 12V BUZ GRN RED D1 D0 GND GNDC112V 12VREX1 GND
GND C1 NO1 NC1LK1+ LK1- C2 NO2 NC2LK2+ LK2-TMP
C2 12VREX2
See “Recommended Wiring” section for more information on wiring type, size, and maximum length.

