A22K
High Security Access Control 2-Door Module


See “Recommended Wiring” section for more information on wiring type, size, and maximum length.
+12V DC
+24V DC
-
+12V DC
-
+12V DC
A+
B-
Input 1
Input 2
Output 1
Output 2
INPUT
POWER
SUPPLY
RS485
LOCAL
BUS
ETHERNET
PORT
SYSTEM STATUS
EXTRA
INPUTS/
OUTPUTS
ETHERNET LOCAL BUS LOCK 1 & 2
JUMPER SETTING
STATUS
24V DC INPUT/
BATTERY/
MODULE TYPE
BATTERY
BACKUP
Electromagnetic Door Lock
(Door 2)
Door Strike
(Door 1)
+
-
+
-
Lock Output Jumper Settings
There are two jumpers, one for each lock output, LK1 and LK2.
Each output provides 750mA at 12VDC
Default setting:
The lock output will be at 0Vdc in
normal state and toggles to
12Vdc during the unlock time.
(De-energize lock output)
The lock output will be at 12Vdc in
normal state and toggles to 0Vdc during
the unlock time. This is the typical
setting for electromagnetic door lock.
(Energize lock output)
Jumper Side View
or
Jumper Side View
12V0V 12V0V
READER DOOR 1
INPUT
DOOR 1
LOCK
DOOR 1
LOCK
DOOR 2
INPUT
DOOR 2
READER DOOR 2
ENCLOSURE
TAMPER
SWITCH
INPUT
BUZ GRN RED D1 D0 GND 12V BUZ GRN
RED D1 D0 GND GNDC112V 12VREX1 GND GND C1 NO1 NC1LK1+ LK1- C2 NO2 NC2LK2+ LK2-TMPC2 12VREX2
+12V DC
+24V DC
-
+12V DC
-
+12V DC
A+
B-
Input 1
Input 2
Output 1
Output 2
INPUT
POWER
SUPPLY
RS485
LOCAL
BUS
ETHERNET
PORT
SYSTEM STATUS
EXTRA
INPUTS/
OUTPUTS
ETHERNET LOCAL BUS LOCK 1 & 2
JUMPER SETTING
STATUS
24V DC INPUT/
BATTERY/
MODULE TYPE
BATTERY
BACKUP
Electromagnetic Door Lock
(Door 2)
Door Strike
(Door 1)
External
Power
Supply
(Vdc)
External
Power
Supply
(Vdc)
+
-
+
-
+
-
+
-
READER DOOR 1
INPUT
DOOR 1
LOCK
DOOR 1
LOCK
DOOR 2
INPUT
DOOR 2READER DOOR 2
ENCLOSURE
TAMPER
SWITCH
INPUT
BUZ GRN RED D1 D0 GND 12V BUZ GRN RED D1 D0 GND GNDC112V 12VREX1 GND GND C1 NO1 NC1LK1+ LK1- C2 NO2 NC2LK2+ LK2-TMPC2 12VREX2
If your external power supply and
locks use AC voltage, replace the
diode with the included varistor.
12V0V
12V0V



The output is at 0 V to keep
the door locked and toggles to
12 VDC during the unlock time.




The output is at 12 VDC to keep
the door locked and toggles to 0V
during the unlock time.

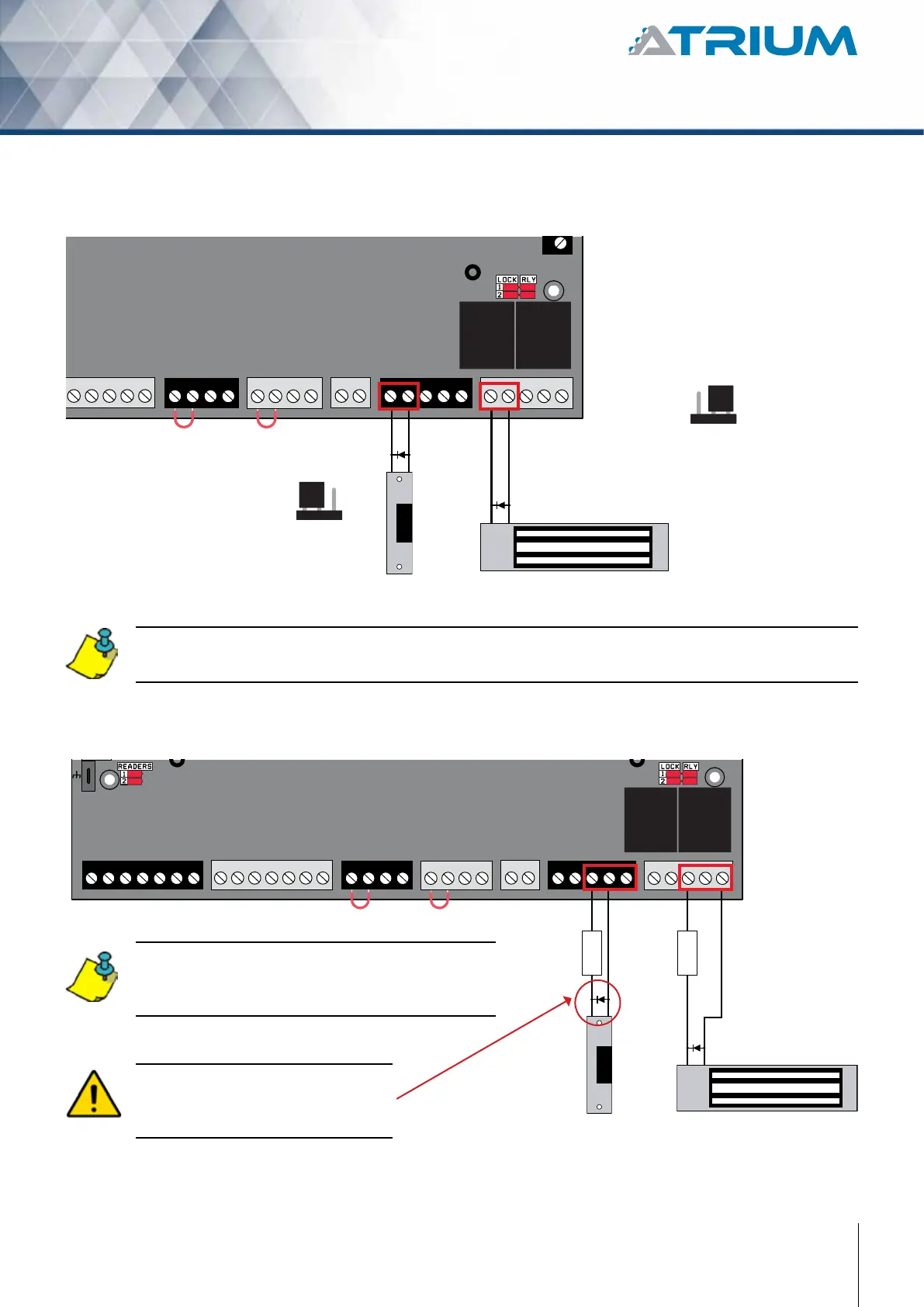

Each lock output provides 750mA at 12VDC. When a dierent voltage or more current is required,
refer to the diagram below on how to connect an external power supply.
Use the A22K on-board dry contact relay, one per
door, for external power supply connection. By
default the on-board relay follow the unlock time.
