32
cdvigroup.com
A22K
High Security Access Control 2-Door Module
+12V DC
+24V DC
-
+12V DC
-
+12V DC
A+
B-
Input 1
Input 2
Output 1
Output 2
INPUT
POWER
SUPPLY
RS485
LOCAL
BUS
ETHERNET
PORT
SYSTEM STATUS
EXTRA
INPUTS/
OUTPUTS
ETHERNET LOCAL BUS LOCK 1 & 2
JUMPER SETTING
STATUS
24V DC INPUT/
BATTERY/
MODULE TYPE
BATTERY
BACKUP
Ethernet @ 10/100 Mbps
Maximum 100m (300ft.)
Red
Power Supply
LED Indicator
White
PoE+ Splitter
POES
From PoE+ source
(Data + Power)
Ethernet Port
(Data)
DC power output
(24 Vdc)

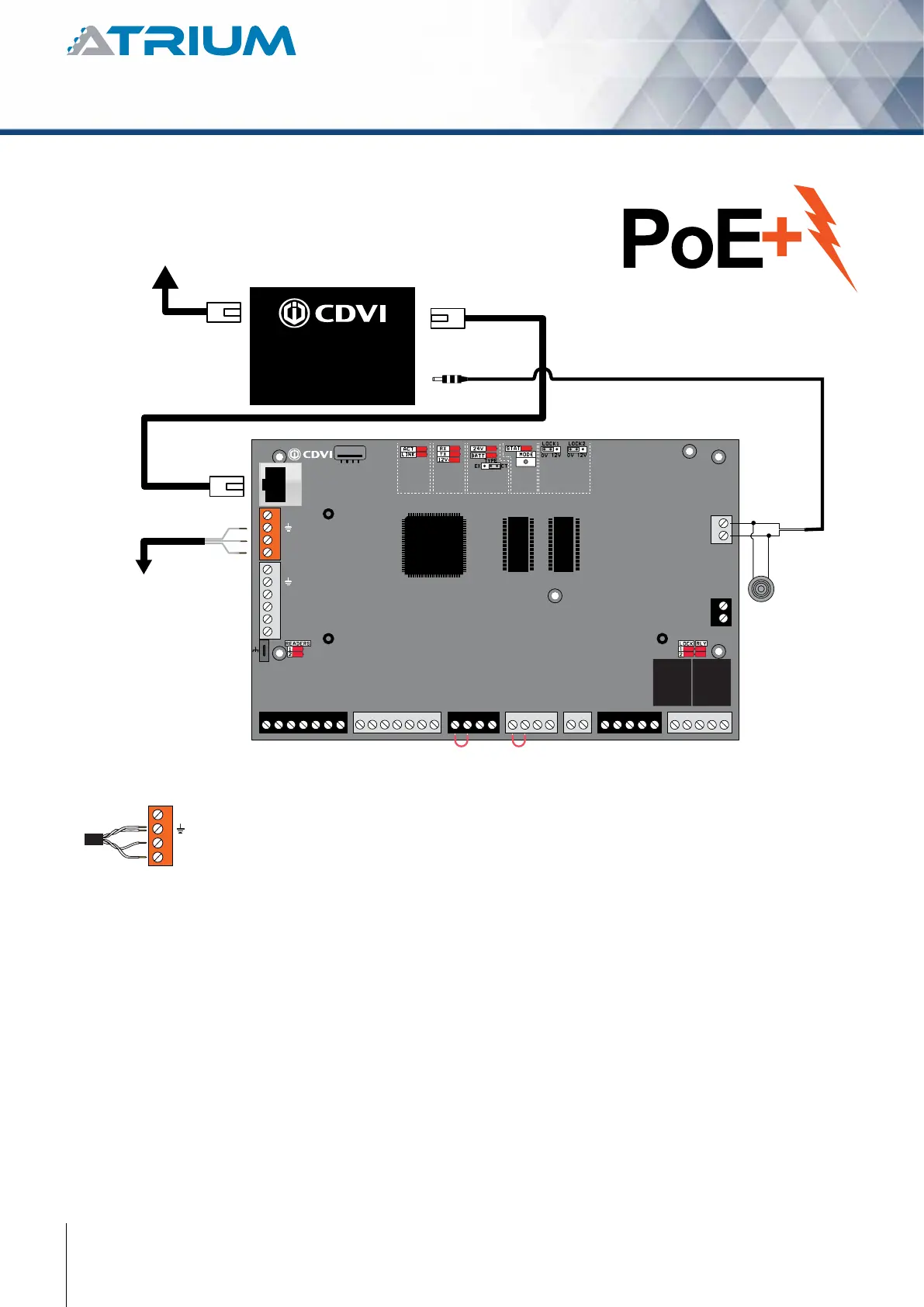

The pre-assembled PoE+ Splitter
seperate data and power coming
from PoE+ source, example:
PoE+ switcher or injector
Furthest RS485 module at
maximum 1220m (4000 ft).
+12V DC (Not use)
A+
B
-
RS485 Port
The RS485 port is used to connect
and communicate with an A22K set
as “Expander” or any RS485
ATRIUM modules.
Up to 4 A22K set as “Expander”
can be connected per RS485 port.
We highly recommended to use a
twisted pair wiring as shown below.
It will avoid any communication
problem that may occur in noisy
environments.
A22K RS485 port
connector
READER DOOR 1
INPUT
DOOR 1
LOCK
DOOR 1
LOCK
DOOR 2
INPUT
DOOR 2READER DOOR 2
ENCLOSURE
TAMPER
SWITCH
INPUT
BUZ GRN RED D1 D0 GND 12V BUZ GRN RED D1 D0 GND GNDC112V 12VREX1 GND GND C1 NO1 NC1LK1+ LK1- C2 NO2 NC2LK2+ LK2-TMPC2 12VREX2
Power Over Ethernet
