12
cdvigroup.com
CTV900A
2-Door Controller
INSTALLATION MANUAL
INSTALLING THE 2-DOOR CONTROLLER PC BOARD

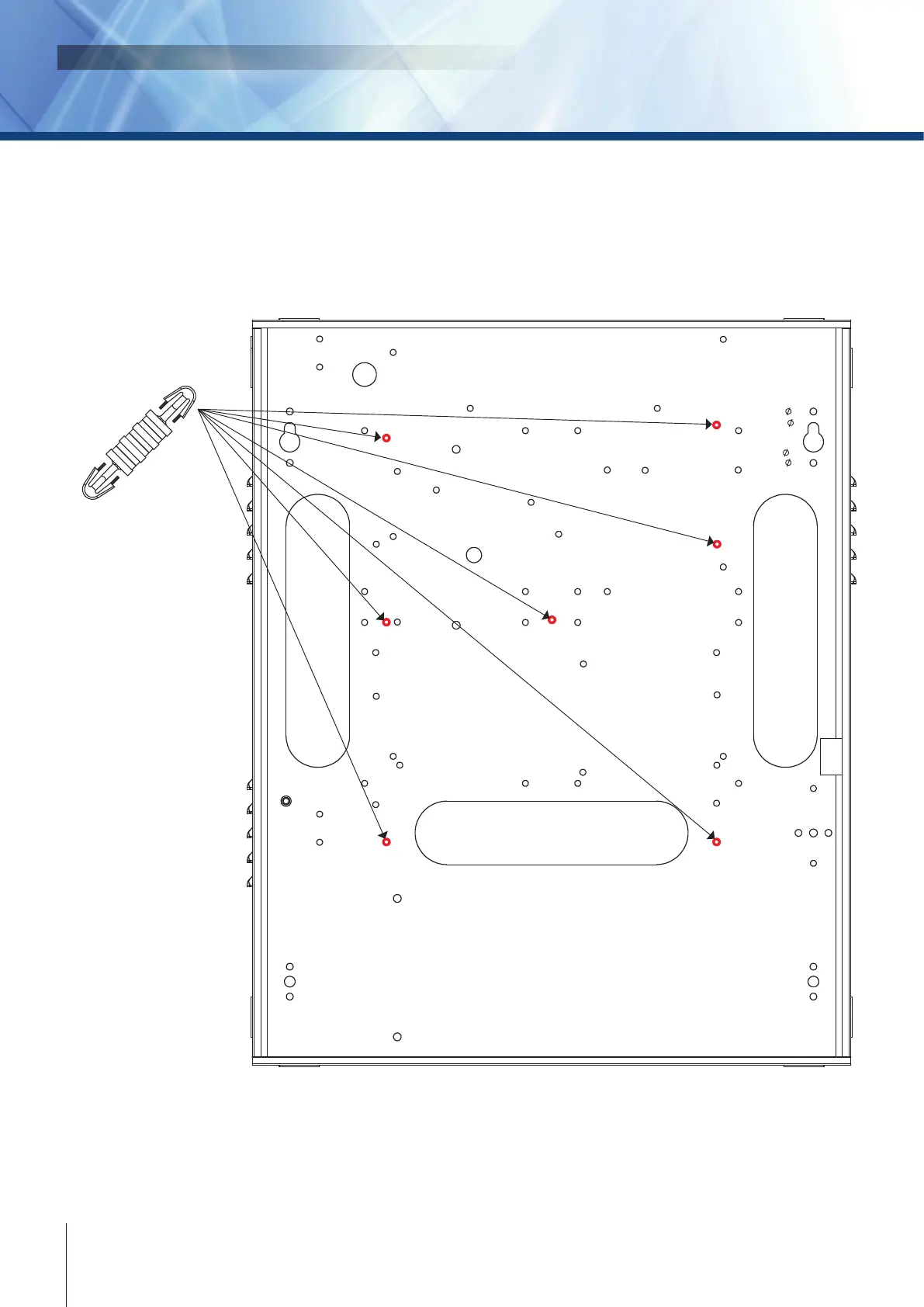

Install the 7 fasteners (PCB holder) supplied respectively to the box holes identied in red in the following
picture.
