CTV900A
2-Door Controller
INSTALLATION MANUAL
1] PRODUCT PRESENTATION

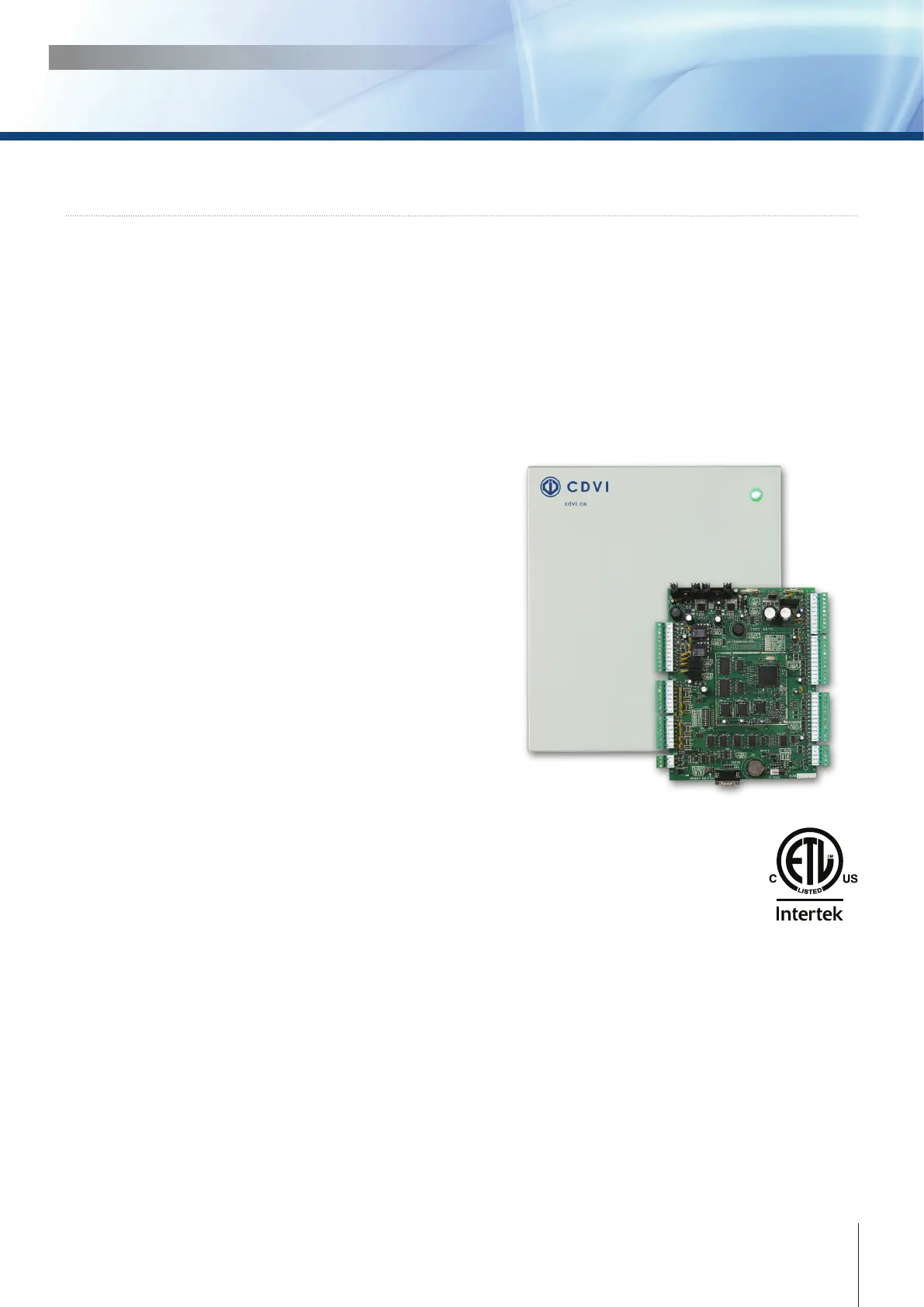

The CTV900A is at the heart of every Centaur access control system. The Centaur Server, hardware expansion
modules, multi-purpose inputs, card readers, keypads and outputs are connected directly to the CTV900A.
Multi-controller systems are networked via the RS485 communication bus (or using the optional CAETHRA over
a TCP/IP network). Distributed database architecture allows each controller to make split-second decisions
without the need for the Centaur server. Lightning-quick, robust and remarkable stability make the CTV900A
the professional’s choice.
• Control 2 doors (Reader In / REX Out) or 1 Door (Reader In / Reader Out)
• Add up to 6 more doors to the CTV900A using the CAA470A expansion module
• 10,920 on-board card database
• 512 Schedules
• 256 Access Levels
• 128 holidays
• 2048 Event Buer
• Fully distributed database architecture
(100% O-line operation)
• Online upgradeable ash rmware
(Upload rmware via the CENTAUR Server)
• Capable to create up to 2000 user groups
• 16 on-board inputs (*using Zone Doubling)
• 2 on-board 12 Vdc or
24 Vdc eld-selectable lock outputs
• 2 on-board Form C dry contact relay outputs
(N/O - N/C)
• E-Bus technology add-on hardware modules can
be up to 1220m (4000ft) away from the CTV900A
• 2.5A switching power supply
• Supports common Wiegand, Track 2 ABA (mag stripe) and BCD (keypad) formats
• Easy maintenance with snap-o terminal blocks
• Battery backup functionality (2 x 12V 7AH gel-type batteries)
• Lithium battery protection in case of complete power failure
• Comprehensive LED status indicators
