CDVI Centaur CTV900A - Connecting Readers and Keypads

23
cdvigroup.com
CTV900A
2-Door Controller
INSTALLATION MANUAL
CONNECTING READERS AND KEYPADS
Each CTV900A controller supports up to two readers and two keypads. With some congurations this can be
expanded to a maximum of four readers and four keypads. If you are using the Anti-Passback mode, you will

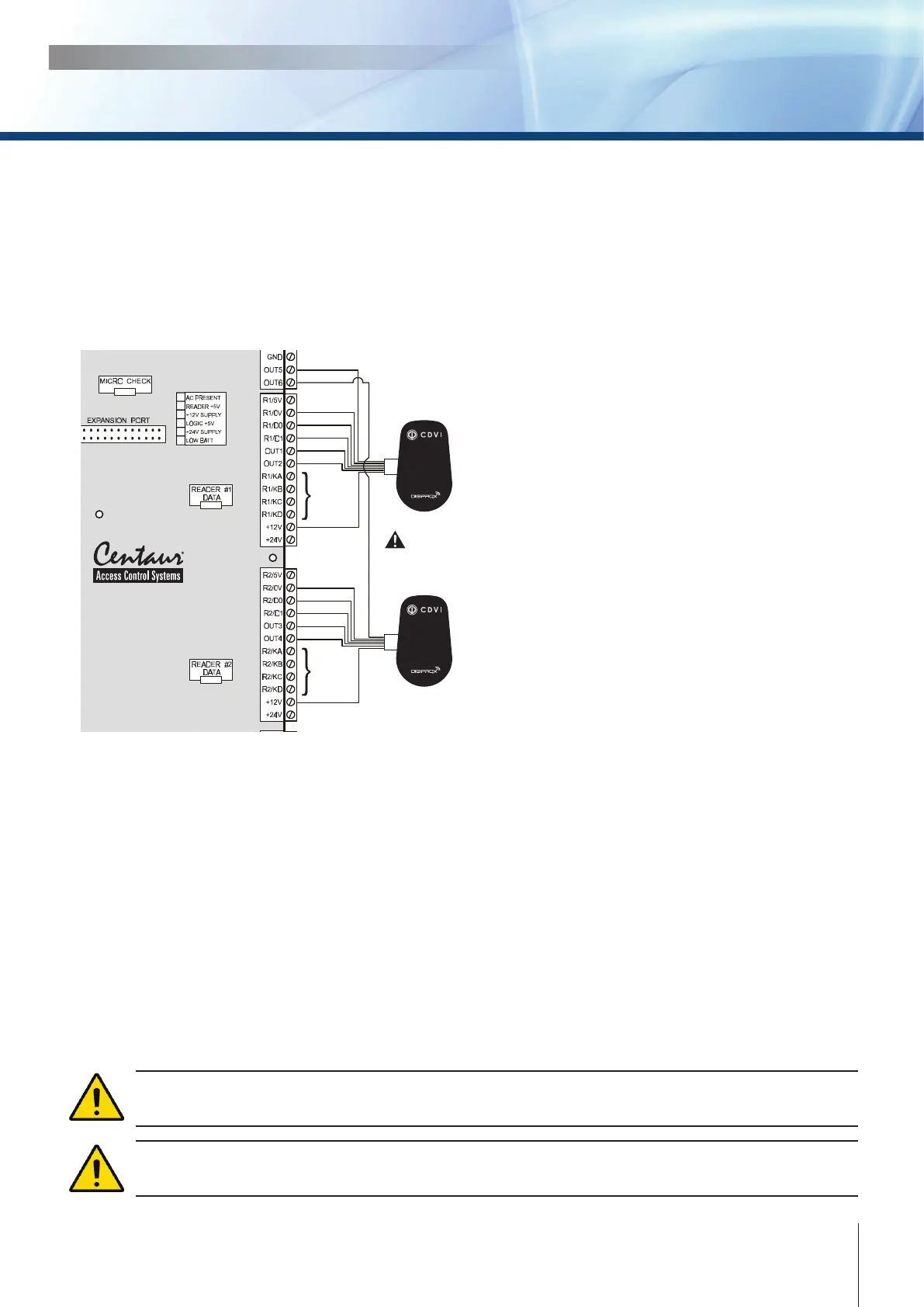

be limited to two controlled doors or one entry/exit door. Most Wiegand keypads and readers are connected as
shown below. When installing a keypad with a Wiegand output, the keypad’s “D0” and “D1” wires should be
connected to the same terminals as the reader’s (the reader output must be open collector). Depending on the
required application more than one keypad and/or reader can be connected to the same terminals.
CTV900A
2-Door Controller
TAMPER
TAMPER
Keypad
2
Keypad
1
Reader and keypad
wiring may differ
from diagram.
Please consult your
dealer for details.
NANOPB
Mini
Proximity
Reader 1
NANOPB
Mini
Proximity
Reader 1
Red
Black
Green
White
Orange
Yellow
Red
Black
Green
White
Orange
Yellow
Brown
Brown
See chapter 2 “Recommended Wiring” for more information on wiring type, size, and maximum length.
For an up-to-date list of which keypads and readers are supported, refer to the CENTAUR Software
Manual or visit our web site at www.cdvigroup.com.
The 2-Door Controller provides 12Vdc output. Connecting a device (keypad or reader) requiring a
dierent voltage may damage the reader or keypad and invalidate the 2-Door Controller warranty.
Below you will nd examples of the many door congurations that are possible:
• Controlled entry with free exit (request for exit via detector or button)
• Keypad only entry with free exit
• Controlled entry and exit by using 2 readers per door (no entry or exit registration)
• Controlled entry and exit by using 2 readers and 2 keypads per door (no entry or exit registration)
• Reader entry with keypad exit (single or multiple codes)
• Controlled entry and exit with Anti-Passback & registration of entry and exit (uses 2 reader ports and 2 doors)
Compatible readers and keypads:
•NANOPW (White) and NANOPB (Black)
•STARPW (White) and STARPB (Black)
•SOLARPW (White) and SOLARPB (Black)
•DGLP FN WLC26
•DGLP WLC26
•DGLI F WLC26 (Mullion Vandale Proof)
•DGLI WLC26 (Vandale Proof)
•DGLP60WLC (Long Range)
•KCPROXWLC (Reader & Keypad)
•DGLM (Magstripe)
And most popular Wiegand
readers & keypad
