CEM MARS 6 Synthesis - Back and Side View

6
Instrument Overview

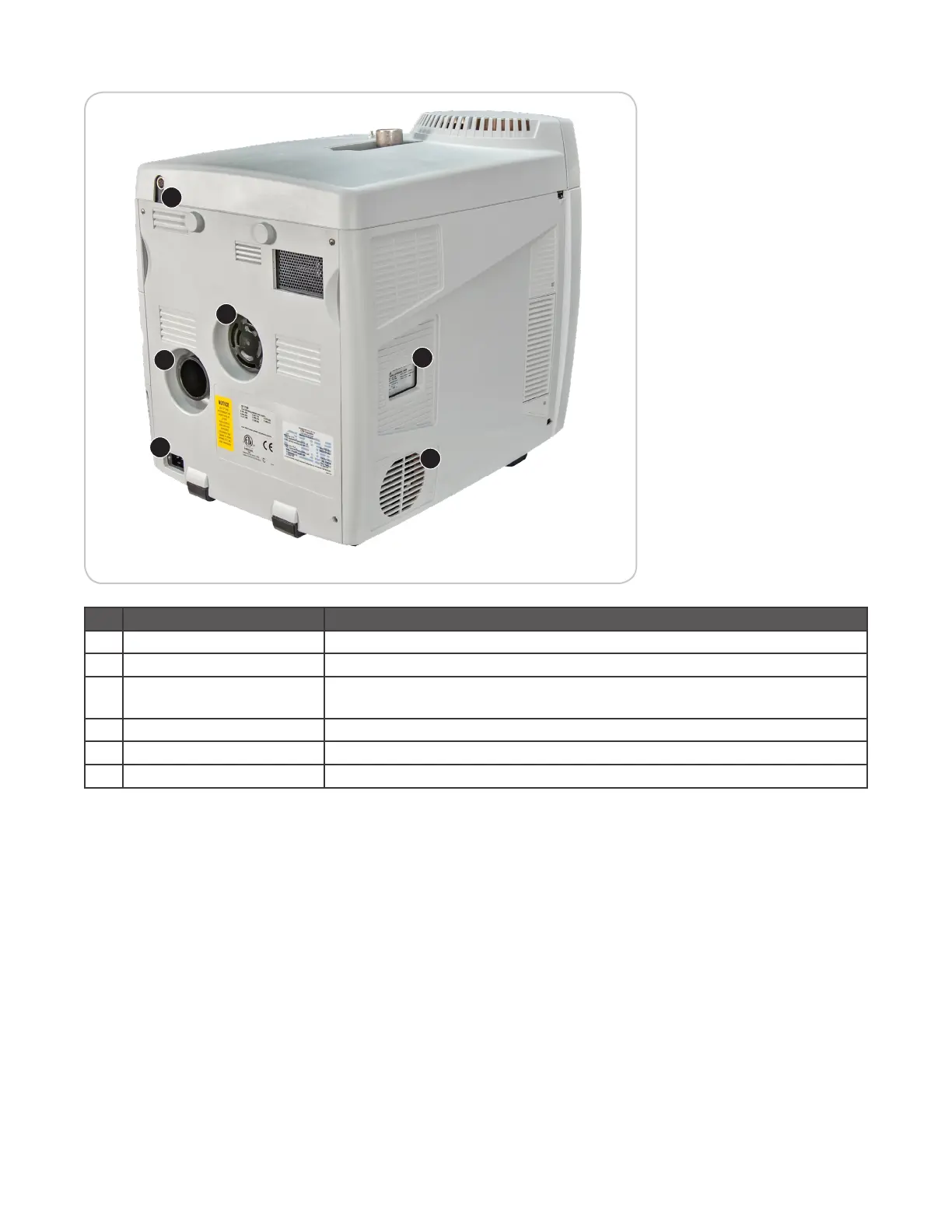

Back and Side View
1
2
3
4
5
6
Item Description
1 Power Cord Receptacle Receives the female end of the power cord
2 Cavity Exhaust Outlet Exhausts fumes from the microwave cavity
3 Cavity Exhaust Blower Directs air from the microwave cavity to the exhaust outlet at the rate of 3.6 m
3
/minute (125
ft
3
/minute)
4 External Sensor Port Permits interface of optional instrument features
5 High Voltage Cooling Fan Draws room air past the magnetron
6 Nameplate Lists model, serial number, operating voltage, frequency, and current draw
