Hardware Installation

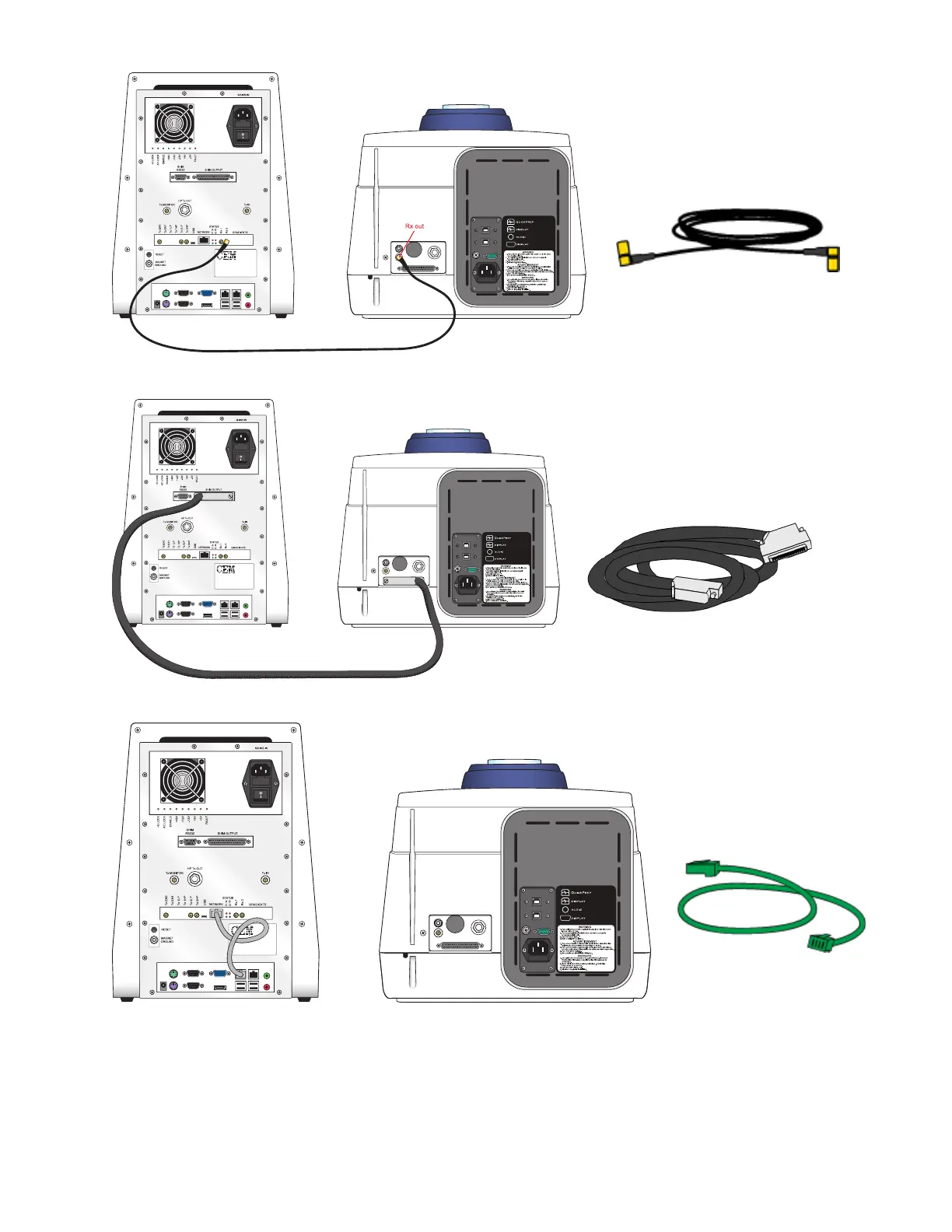

7. Connect the SMB long cable to the processor box and the magnet as illustrated below.
8. Connect the shim cable to the processor box as illustrated below.
9. Connect the crossover CAT 5 Ethernet cable to the processor box as illustrated below.
