Software Setup

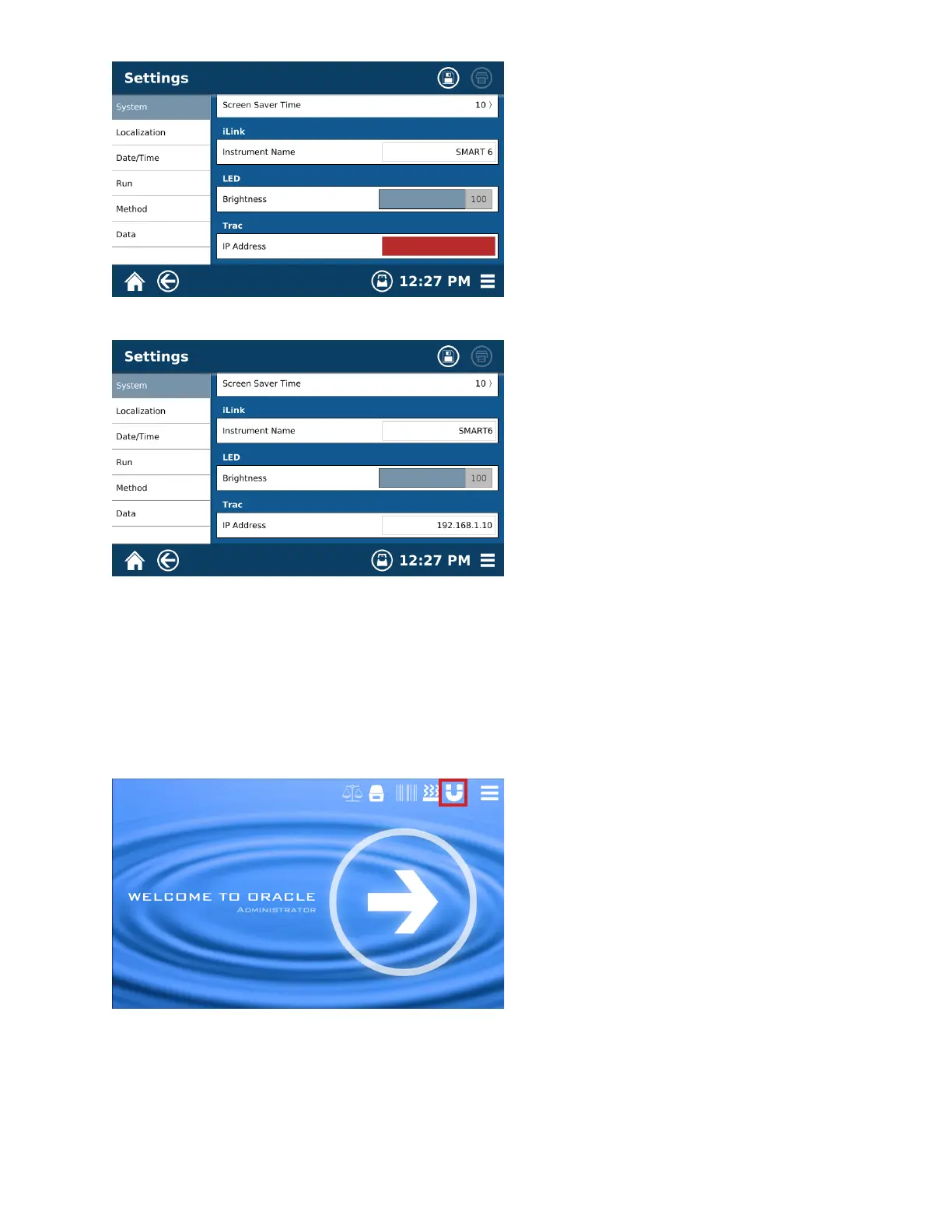

2. Touch the IP Address entry bar and type the following IP address into the system: 192.168.1.10.

3. Press the Save icon in the top right corner.

ORACLE Software Connection

1. Once the SMART 6 IP Address has been set, go to the ORACLE and log in under the “Administrator”. The pass-

word (case-sensitive) is: oracleadmin.

2. Conrm the ORACLE software has connectivity to the coreboard. This can be done by clicking on the “Magnet

Temperature” icon along the top of the ORACLE screen to check for magnet temperature. If XX is displayed,

see instructions on initiating the connection.

3. If the ORACLE is communicating with the coreboard, select the “Main Menu” icon in the top right corner of the

screen.

4. Select “Settings” then the “Tools” header.
