page 28 www.centsys.com
OPERATOR INSTALLATION - INWARD-OPENINGSECTION 6
VANTAGE SMART
operator
Wall
Bracket

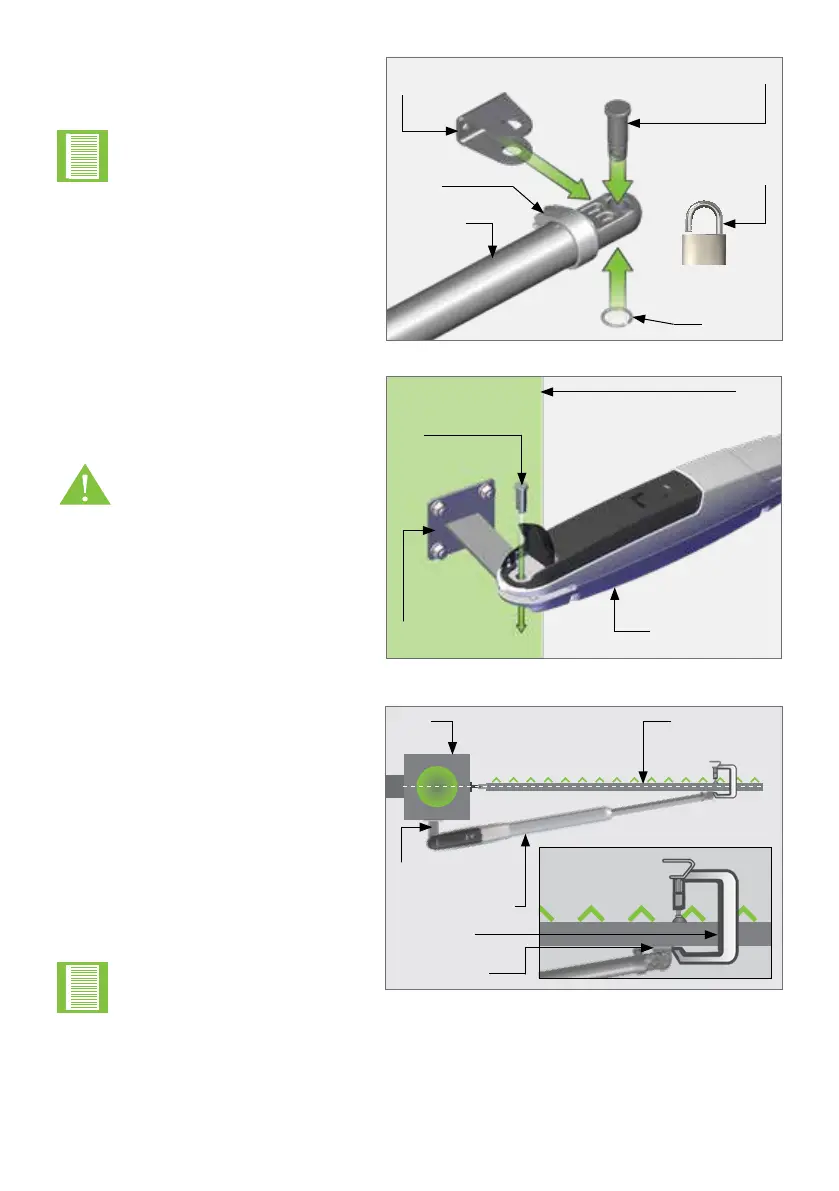

FIGURE 22
Wall
Pin
Fit the motor end of the operator to
the Wall Bracket.
Fit the Gate Bracket to the VANTAGE
SMART and secure it with a snap
ring.
FIGURE 21
PinGate
Bracket
Origin
clamp
VANTAGE
SMART
operator
Padlock
Snap ring
G-clamp
Gate in closed
position
G-clamp or
spot weld
Gate Bracket
VANTAGE SMART
operator
Wall
Wall
Bracket
FIGURE 23
Manually rotate the piston to the fully
extended position, and then retract it
by half to one full turn.
With the gate in the closed position,
use a G-clamp or spot weld the Gate
Bracket in position to temporarily
hold the Gate Bracket in place.
The G-clamp should only
be used to secure the Gate
Bracket in place, and should
never be used as a means of
securing the operator piston
arm as this could result in
damage.
Support the operator to
prevent damage.
As additional security to the
snap ring, t a padlock and
the optional padlock shield.
To Next Page
