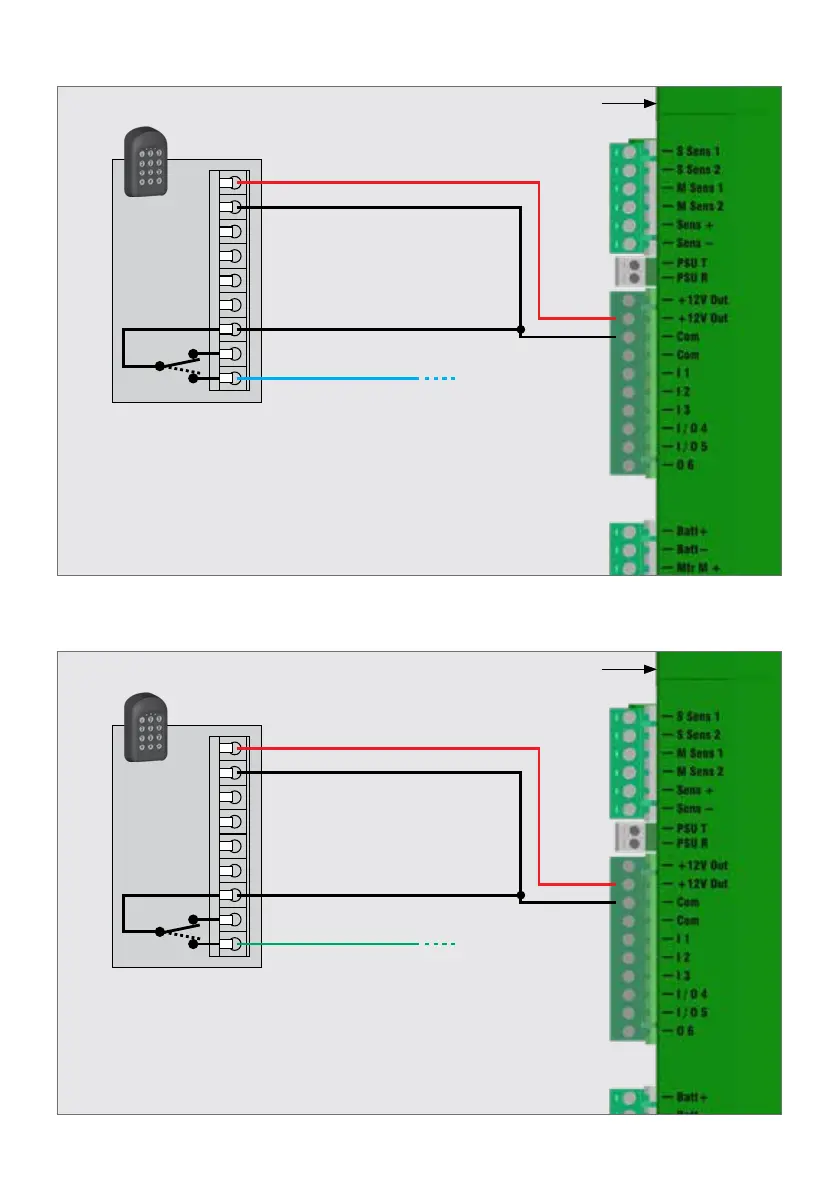

8.2.15. Holiday Lockout Keyswitch/Keypad
Vx SMART
Controller
FIGURE 54
*Congured in App
Holiday Lock Out (I1),
Holiday Lock Out (I2),
Holiday Lock Out (I3),
Holiday Lock Out (IO4), or
Holiday Lock Out (IO5)
Keyswitch
/ Keypad
NO
NC
COM
12V/24V -
NO
12V/24V +
*
ELECTRICAL SETUPSECTION 8
8.2.16. Pedestrian Keyswitch
Vx SMART
Controller
FIGURE 55
*Congured in App
PED (I1),
PED (I2) (Default),
PED (I3),
PED (IO4), or
PED (IO5)
Keyswitch
/ Keypad
NO
NC
COM
12V/24V -
NO
12V/24V +
*
