CENTURION SYSTEMS VANTAGE 400 SMART - 8.2.14. External Radio Receiver & Loop Detector; App Configurations for Radio Receiver and Loop Detector

page 44 www.centsys.com
ELECTRICAL SETUPSECTION 8

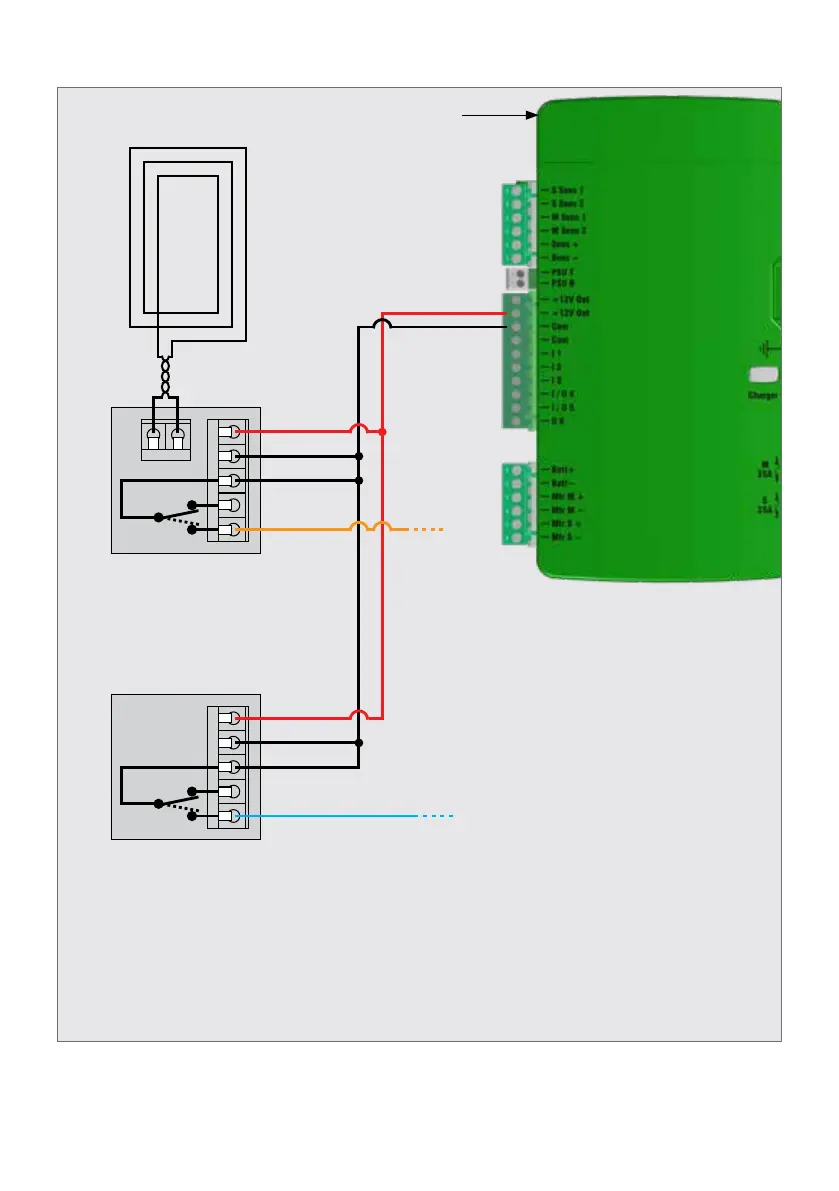

8.2.14. External Radio Receiver & Loop Detector
Vx SMART
Controller
FIGURE 53
*Congured in App
TRG (I1) (Default),
TRG (I2),
TRG (I3),
TRG (IO4), or
TRG (IO5)
**Congured in App
FRX (I1),
FRX (I2),
FRX (I3),
FRX (IO4), or
FRX (IO5)
Loop Detector
External Radio
Receiver
NO
NO
NC
NC
COM
COM
Free-exit Loop
12V/24V -
12V/24V -
COM
COM
NO
NO
12V/24V +
12V/24V +
**
*
