CENTURION SYSTEMS VANTAGE 400 SMART - 2. SPECIFICATIONS; Physical Dimensions; Technical Specifications (Main Operator)

page 9 www.centsys.com
SPECIFICATIONSSECTION 2

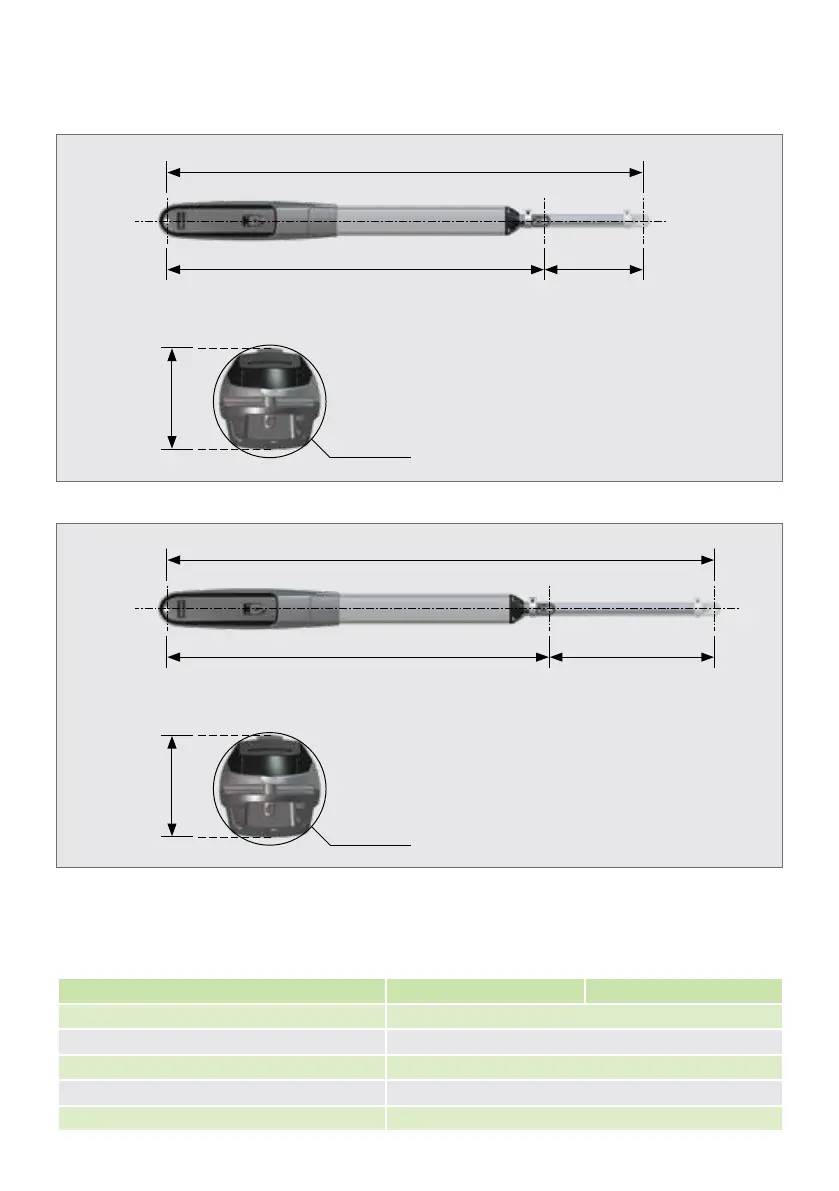

FIGURE 1. VANTAGE 400 SMART PHYSICAL DIMENSIONS
FIGURE 2. VANTAGE 500 SMART PHYSICAL DIMENSIONS
2. SPECIFICATIONS
2.1. Physical Dimensions
1. The current values can be used to determine current consumption for battery life backup calculations.
1370mm (extended)
1570mm (extended)
400mm
extended
piston stroke
500mm
extended
piston stroke
970mm (retracted)
1070mm (retracted)
Ø100mm
Ø100mm
95mm95mm
VANTAGE 400 SMART VANTAGE 500 SMART
Input voltage 90V - 240V AC ± 10%, 50/60Hz
Motor voltage 12V DC
Motor power supply Battery-driven (standard capacity - 7.2Ah)
1
Battery charger
2
1.8A @ 13.8V
Current consumption (Mains) 170mA
2.2. Technical Specications
2.2.1. Main Operator
