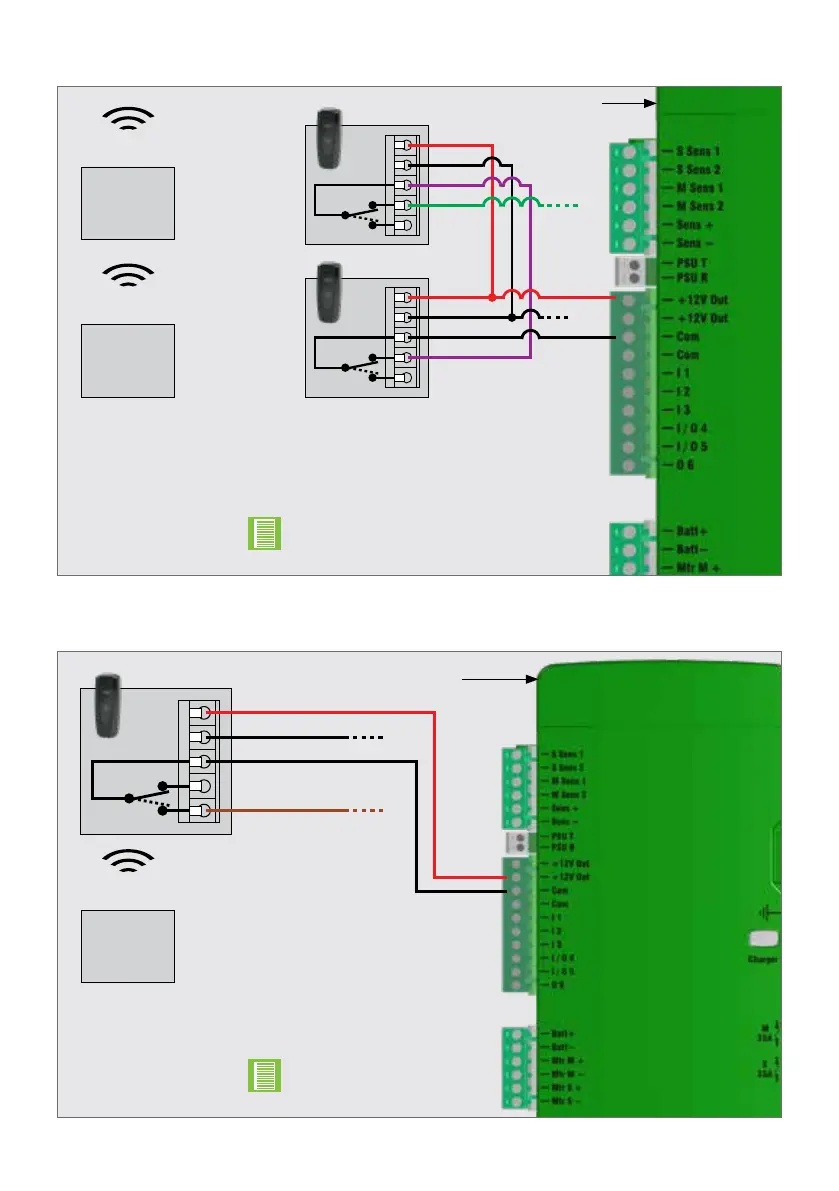

8.2.8. Double Wired Closing Safety Beams (PHOTON)
Vx SMART
Controller
FIGURE 47
12V/24V -
12V/24V -
12V/24V +
COM
COM
NC
NC
IRB Receiver
IRB Receiver
NO
NO
NC
NC
COM
COM
*Congured in App
IRBC (I1),
IRBC (I2),
IRBC (I3) (Default),
IRBC (IO4), or
IRBC (IO5)
**Congured in App (Beam Test)
Beam Common (IO5), or
Beam Common (O6)
**
*
IRB
Transmitter
IRB
Transmitter
12V/24V +
8.2.9. Wired Opening Safety Beams (PHOTON)
Vx SMART
Controller
FIGURE 48
12V/24V +
12V/24V -
COM
NO
IRB Receiver
**
NO
NC
COM
*Congured in App
IRBO (I1),
IRBO (I2),
IRBO (I3) (Default),
IRBO (IO4), or
IRBO (IO5)
**Congured in App (Beam Test)
Beam Common (IO5), or
Beam Common (O6)
*
IRB
Transmitter
ELECTRICAL SETUPSECTION 8
If beam test is not required,
wire the beam directly to COM.
If beam test is not required,
wire the beam directly to COM.
