ELECTRICAL SETUPSECTION 8

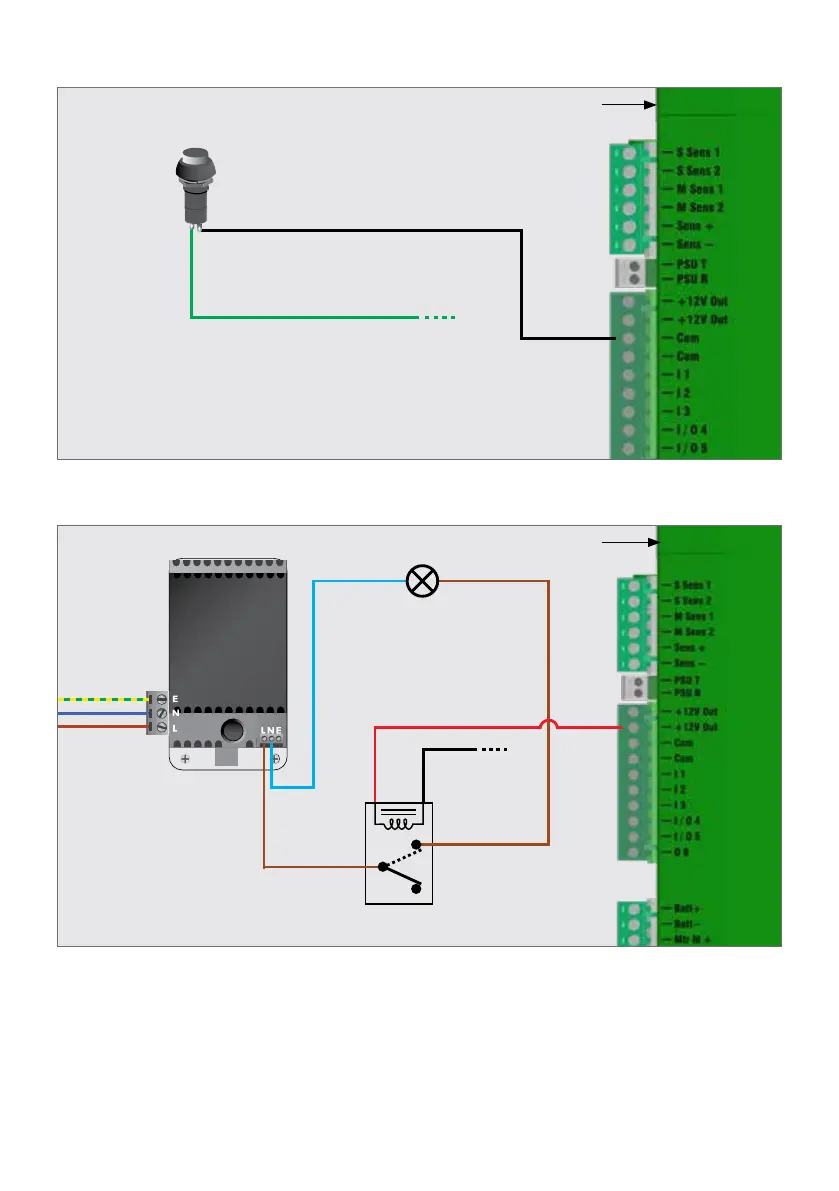

8.2.19. Pillar Light Pushbutton - Normally-Open
FIGURE 58
Vx SMART
Controller
*Congured in App
LIGHT (I1),
LIGHT (I2),
LIGHT (I3),
LIGHT (IO4), or
LIGHT (IO5)
*
Pillar Light
Push button
(Normally-Open)
8.2.20. Pillar Light Wiring
FIGURE 59
Charger
90V-240V
Mains in
NO
+
-
NC
COM
240V Contact
12V
Relay
Coil
Pillar Light
*
*Congured in App
LIGHT (IO4)
LIGHT (IO5), or
LIGHT (O6)
Vx SMART
Controller
