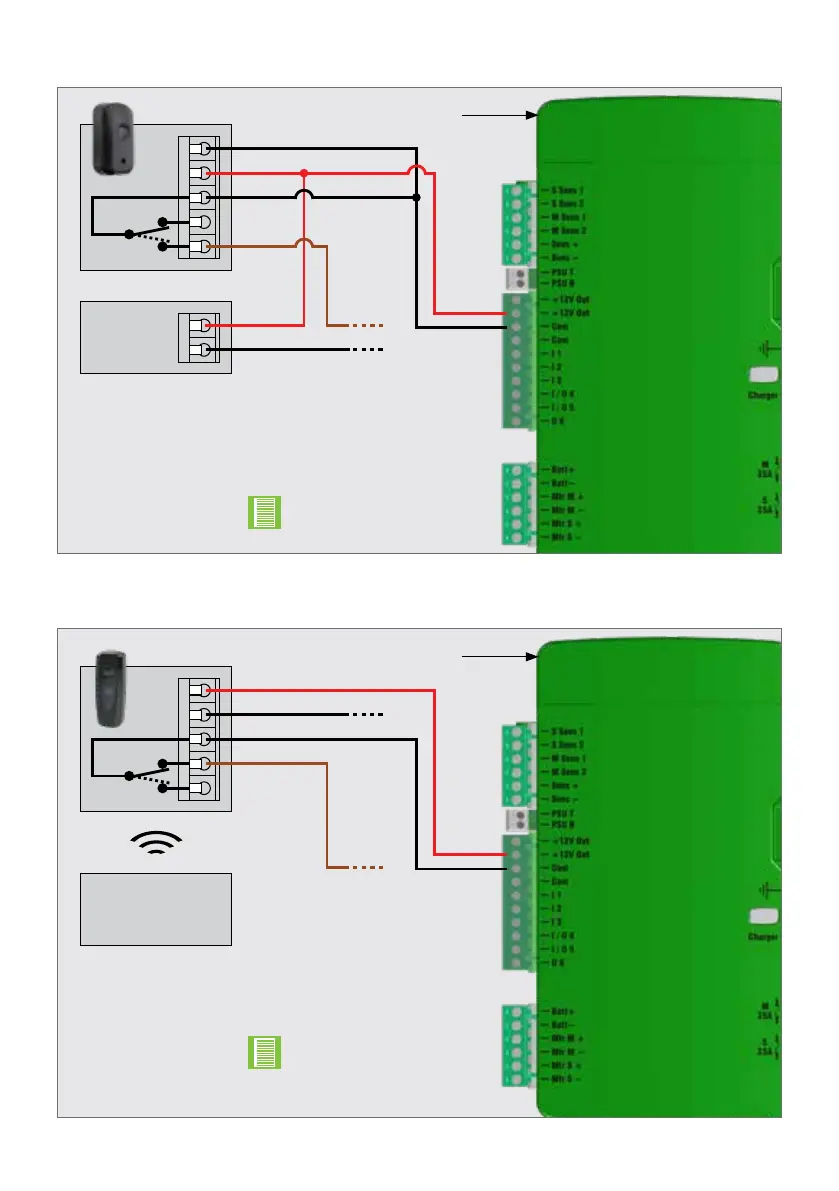

8.2.6. Wired Opening Safety Beams (i5)
8.2.7. Wired Closing Safety Beams (PHOTON)
Vx SMART
Controller
FIGURE 45
FIGURE 46
ELECTRICAL SETUPSECTION 8
12V/24V -
12V/24V -
12V/24V +
12V/24V +
COM
NO
IRB Receiver
IRB Transmitter
**
NO
NC
COM
*
*Congured in App
IRBO (I1),
IRBO (I2),
IRBO (I3) (Default),
IRBO (IO4), or
IRBO (IO5)
**Congured in App (Beam Test)
Beam Common (IO5), or
Beam Common (O6)
Vx SMART
Controller
12V/24V -
COM
NC
IRB Receiver
IRB Transmitter
**
NO
NC
COM
*
*Congured in App
IRBC (I1),
IRBC (I2),
IRBC (I3) (Default),
IRBC (IO4), or
IRBC (IO5)
**Congured in App (Beam Test)
Beam Common (IO5), or
Beam Common (O6)
12V/24V +
If beam test is not required,
wire the beam directly to COM.
If beam test is not required,
wire the beam directly to COM.
