page 32 www.centsys.com

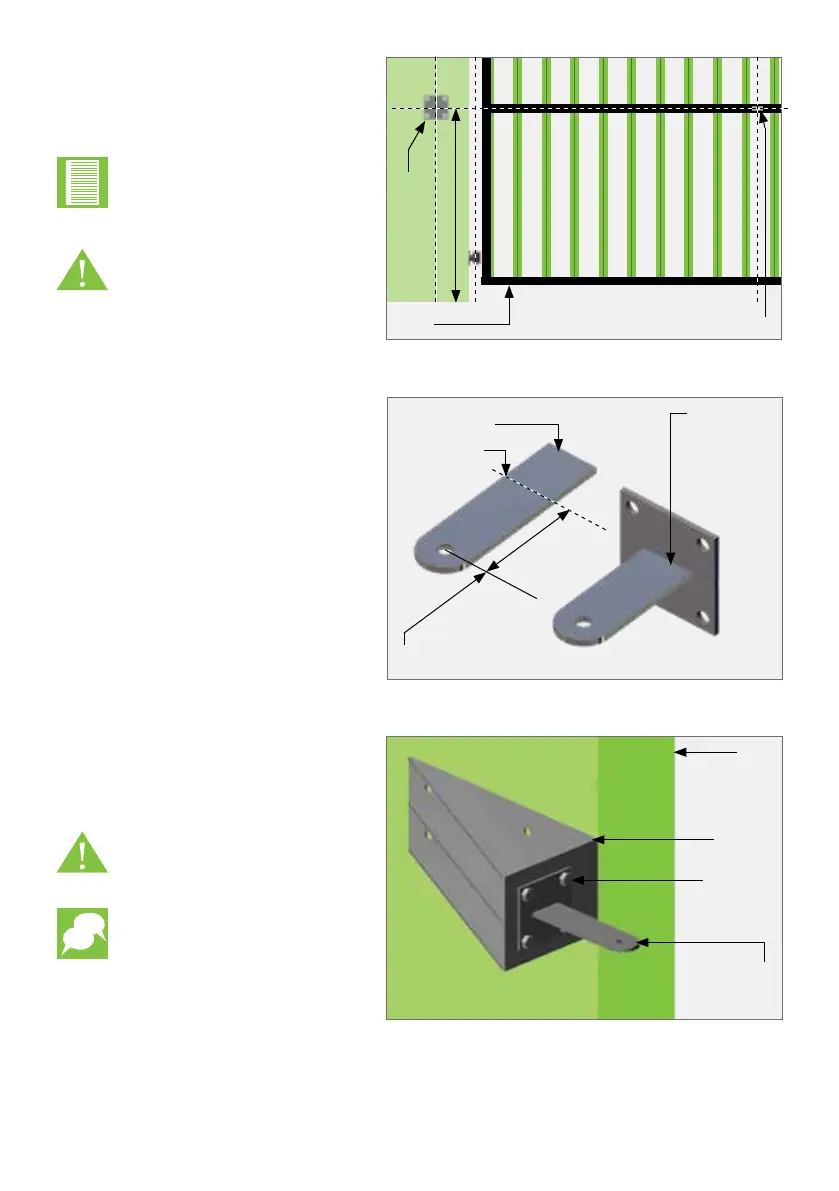

FIGURE 29. WALL BRACKET HEIGHT
Wall Bracket
Minimum 125mm
Gate Gate Bracket position
Determine a suitable height for the
Wall Bracket.
Mark the calculated length on the
Wall Bracket.
Cut o excess length.
Insert the Wall Bracket into the
mounting plate.
Weld the brackets together.
FIGURE 30. CUT AND WELD WALL BRACKET
Mark length
on bracket
Weld plates
together
Cut o
excess length
Wall Bracket
length
Take care to make sure
the operator is mounted
level.
Ensure that this mounting
height will allow the Gate
Bracket to be securely
mounted to the Gate Leaf.
OPERATOR INSTALLATION - OUTWARD-OPENINGSECTION 7
FIGURE 31
Wall
Mounting
bolt
Wall
Bracket
Sturdy
Custom
bracket
Mount the Wall Bracket according to
the A- and B-Values obtained in
Tables 19 or 20.
See page 18 for site
considerations.
It is critical that
the Wall Bracket is
securely mounted and is
adequately rigid.
To Next Page
