25

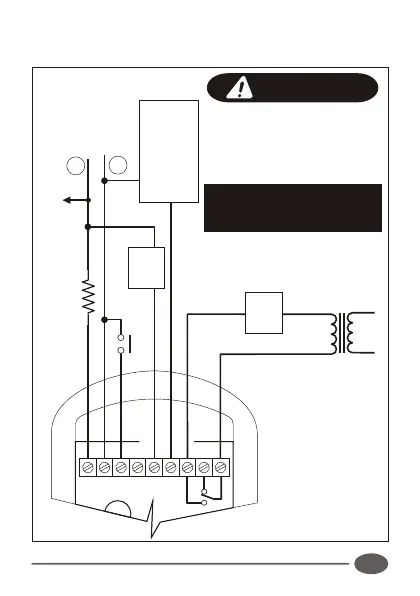

Typical Connection Diagram:
TO OTHER
EQUIPMENT
RESISTOR
OUTPUT 3
RELAY
D5 MOTOR
(Or other
negative triggered
equipment)
COM
TRG
POWER SUPPLY
12 - 24V DC/AC
+
_
12V AC
220V AC
1 2 3 4 5 6 7 8 9
OUTPUT 1
OUTPUT 2
DOOR
STRIKE
FREE EXIT
IMPORTANT
IF YOUR SUPPLY VOLTAGE TO THE
SMART GUARD EXCEEDS 24V AC OR
30V DC, FIT THE SUPPLIED 150R
RESISTOR IN SERIES WITH THE
SUPPLY WIRE AS SHOWN.
DO NOT USE THIS PRODUCT WITH
SUPPLY VOLTAGES GREATER THAN
30V AC OR 40V DC.
