Centurion Vantage - Step 8: Swing Gate to Open Position; Step 9: Secure Gate Bracket

page 40 www.CentSys.com
SECTION 10

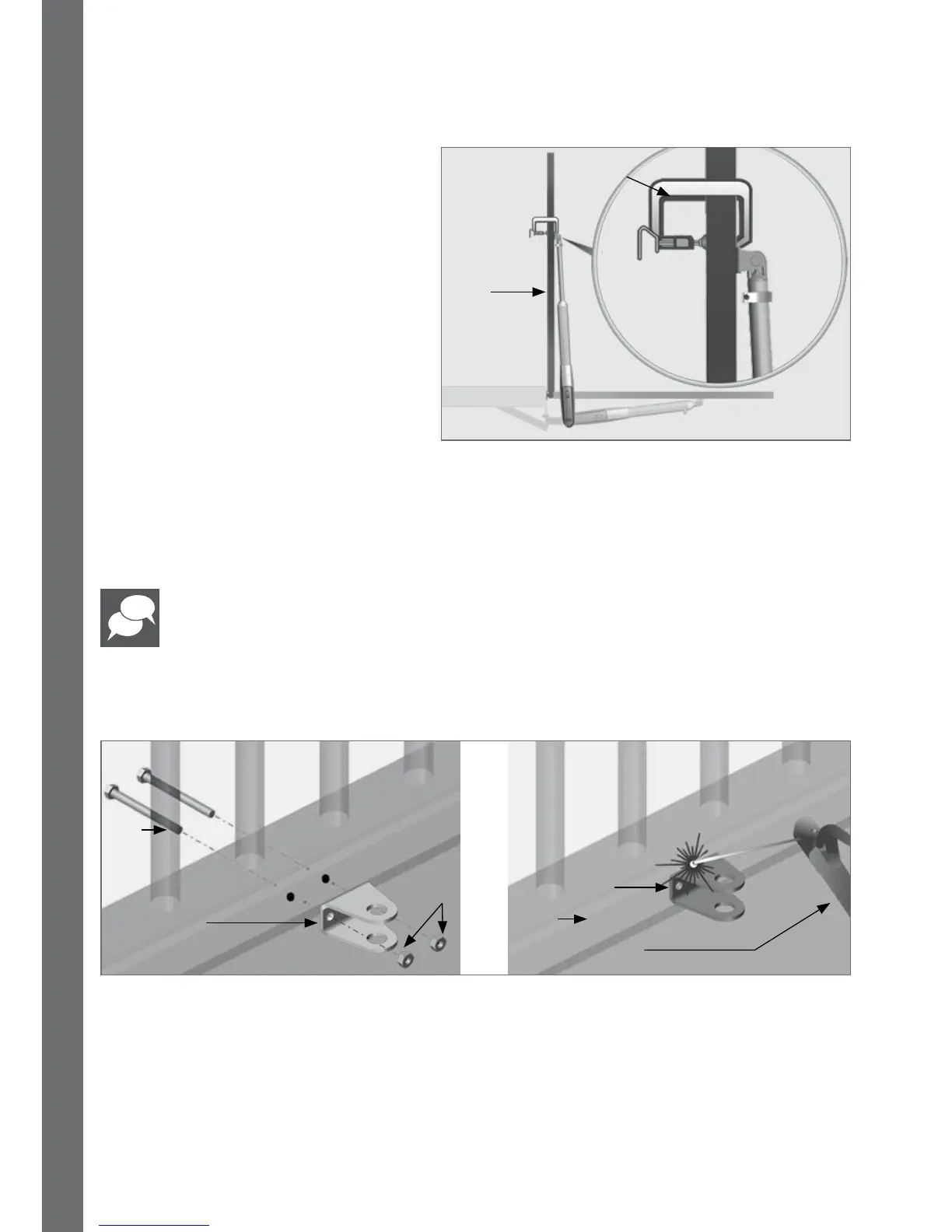

10.8. Step 8
Manually release the operator using
the key provided with the kit, and
swing the gate to the desired open
position.
FIGURE 35
G-clamp or
spot weld
Gate in
open
position
10.9. Step 9
If the gate opening angle is sucient and the operator is utilising the majority of its
stroke, then secure the Gate Bracket using the most appropriate means.
Remove the operator before welding, if welding is required.
If this is not the case or the operator does not have enough stroke for the gate to open
fully, re-check the A- and B-Values from Table 16 on page 36 to Table 17 on Page 37.
Gate Bracket
Welding machine
Bolt
Nuts
Gate
Gate Bracket
OR
OPERATOR INSTALLATION - OUTWARD OPENING GATES
FIGURE 36
