Centurion Vantage - Step 5: Fit Gate Bracket to Operator; Step 6: Fit Operator to Wall Bracket; Step 7: Position Gate Bracket Temporarily

page 39www.CentSys.com
SECTION 10

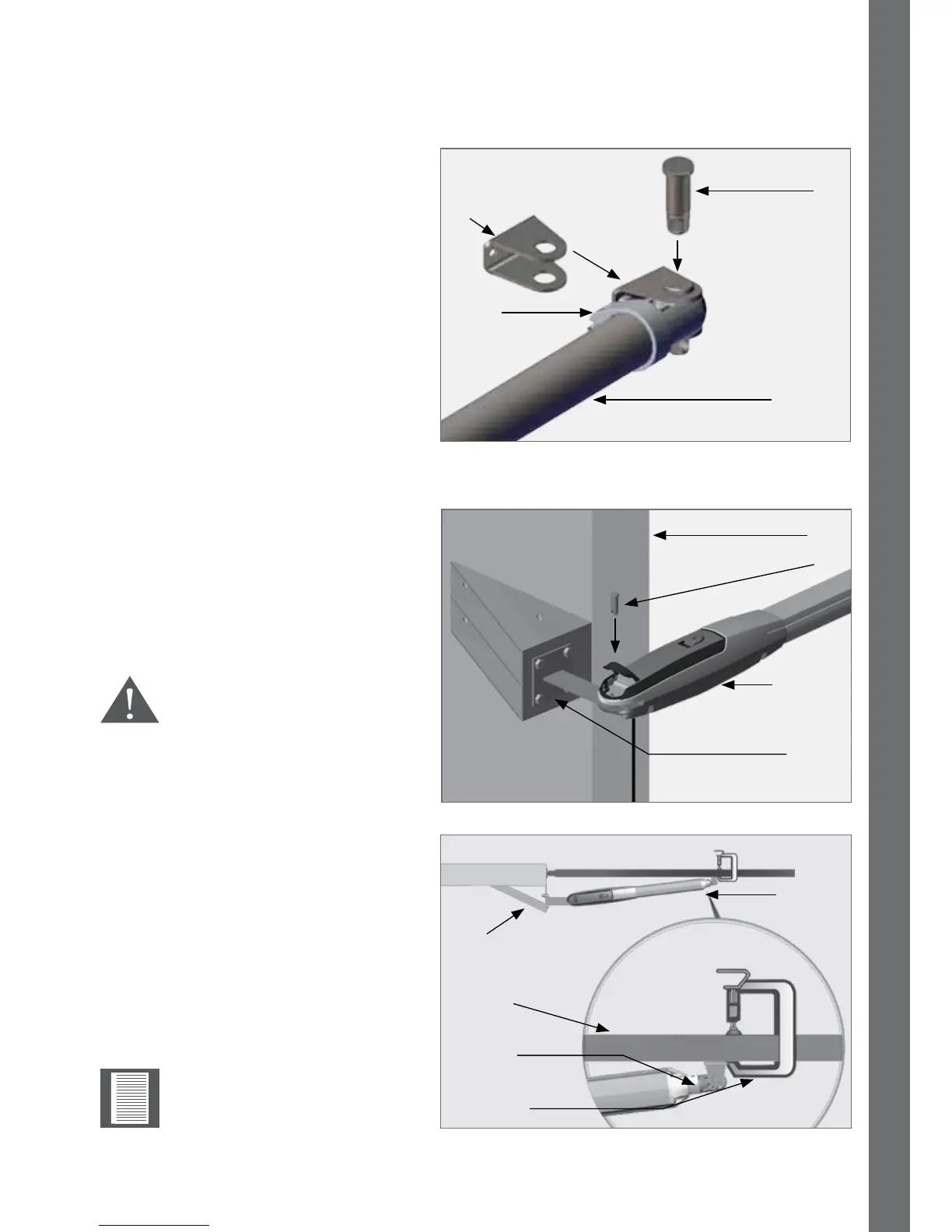

10.5. Step 5
Fit the Gate Bracket to the
VANTAGE.
FIGURE 32
Pin
Gate
Bracket
Origin
clamp
VANTAGE
operator
FIGURE 33
VANTAGE
operator
Wall
Pin
Wall
Bracket
FIGURE 34
Set the origin
clamp to
closed limit
G-clamp or
spot weld
Gate in closed
position
Wall
Bracket
VANTAGE
operator
10.6. Step 6
Fit the motor end of the operator to
the Wall Bracket.
Support the operator to
prevent damage
OPERATOR INSTALLATION - OUTWARD OPENING GATES
10.7. Step 7
Manually rotate the piston to the fully
retracted position, and then extend it
by half to one full turn.
With the gate in the closed position,
use a G-clamp or spot weld the Gate
Bracket in position to temporarily
hold the Gate Bracket in place.
The G-clamp should only
be used to secure the Gate
Bracket in place, and should
never be used as a means of
securing the operator piston
arm as this could result in
damage.
