5. Options and features
5.1 Accessory connections

Six Output Terminals are provided to support the connection of the most common
external accessories

The Output Terminals can be accessed by removing the Courtesy Lamp and
Control Box Covers. (Refer Section.5.6 for removal and replacement details)


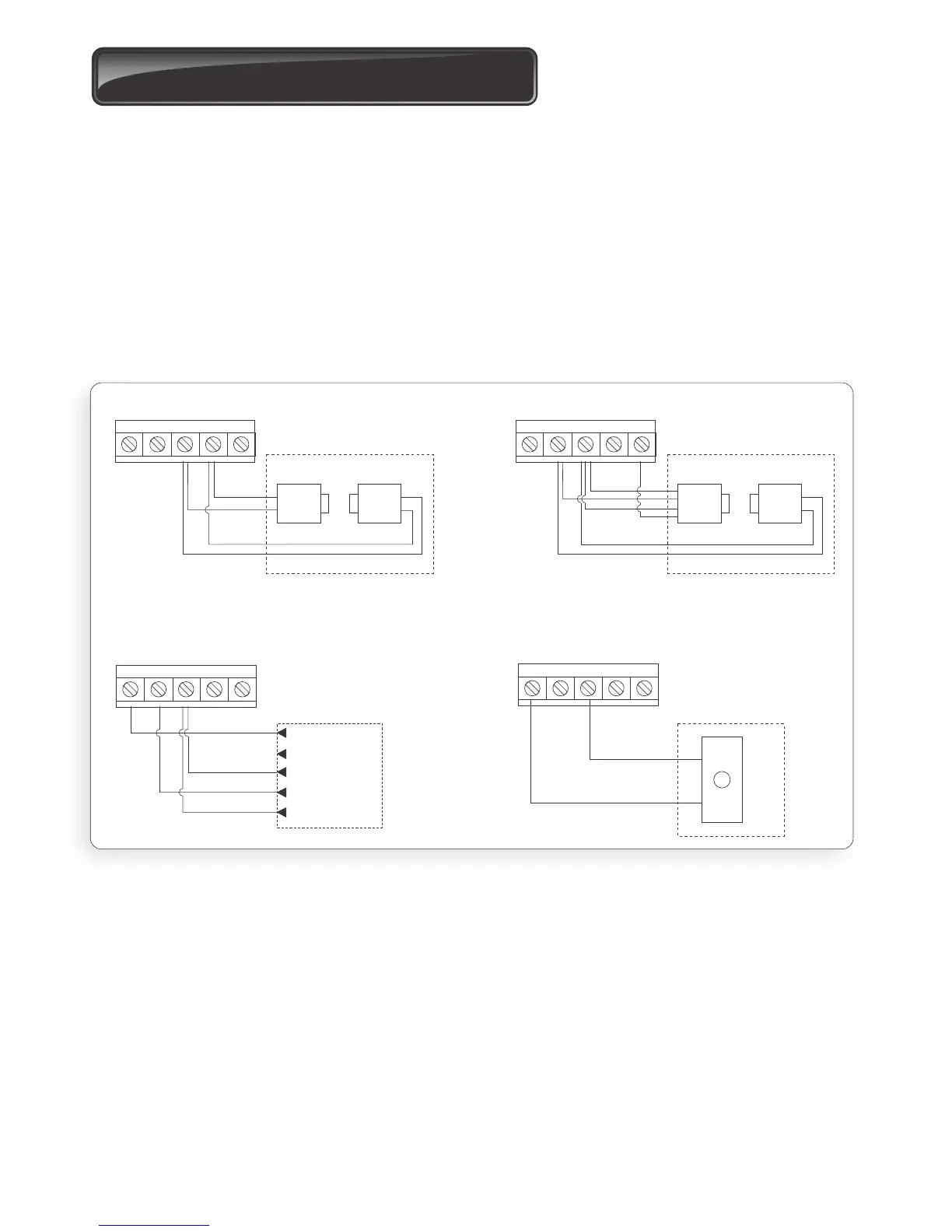

Connection Diagrams
a. XTrac two wire safety beam (Figure 14A)
b. CENTURION i5 or equivalent four wire Safety Beams (Figure.14B)
c. 24VDC universal receiver (Figure 15)
d. Wall switch (hard wired)(Figure 16)
5.2 Autoclose

Autoclose can enhance the security of your property by ensuring that your garage
door is never unintentionally left open

Autoclose will automatically close the garage door;
I. Three seconds after reaching the open limit point - provided that a person or
object has passed through the Safety Beams during the open cycle, or
II. Upon expiry of the pre set 30 seconds delay time – provided that a person or
car has not passed through the Safety Beams within the delay time.
Figure 14A
Wall switch - hard wired
Figure 16
Figure 14B
1 2 3 4 5
NO 24V COM SB2 SB4
Four Wire safety beam
Transmitter Receiver
-
+
COM
NO
-
+
1 2
3
4
5
NO 24V COM SB2 SB4
Two wire safety beams
Transmitter
Receiver
1
2 3
4 5
NO 24V COM SB2 SB4
Universal receiver
-
+
COM
NO
NC
1
2
3 4 5
NO 24V COM SB2 SB4
Figure 15
