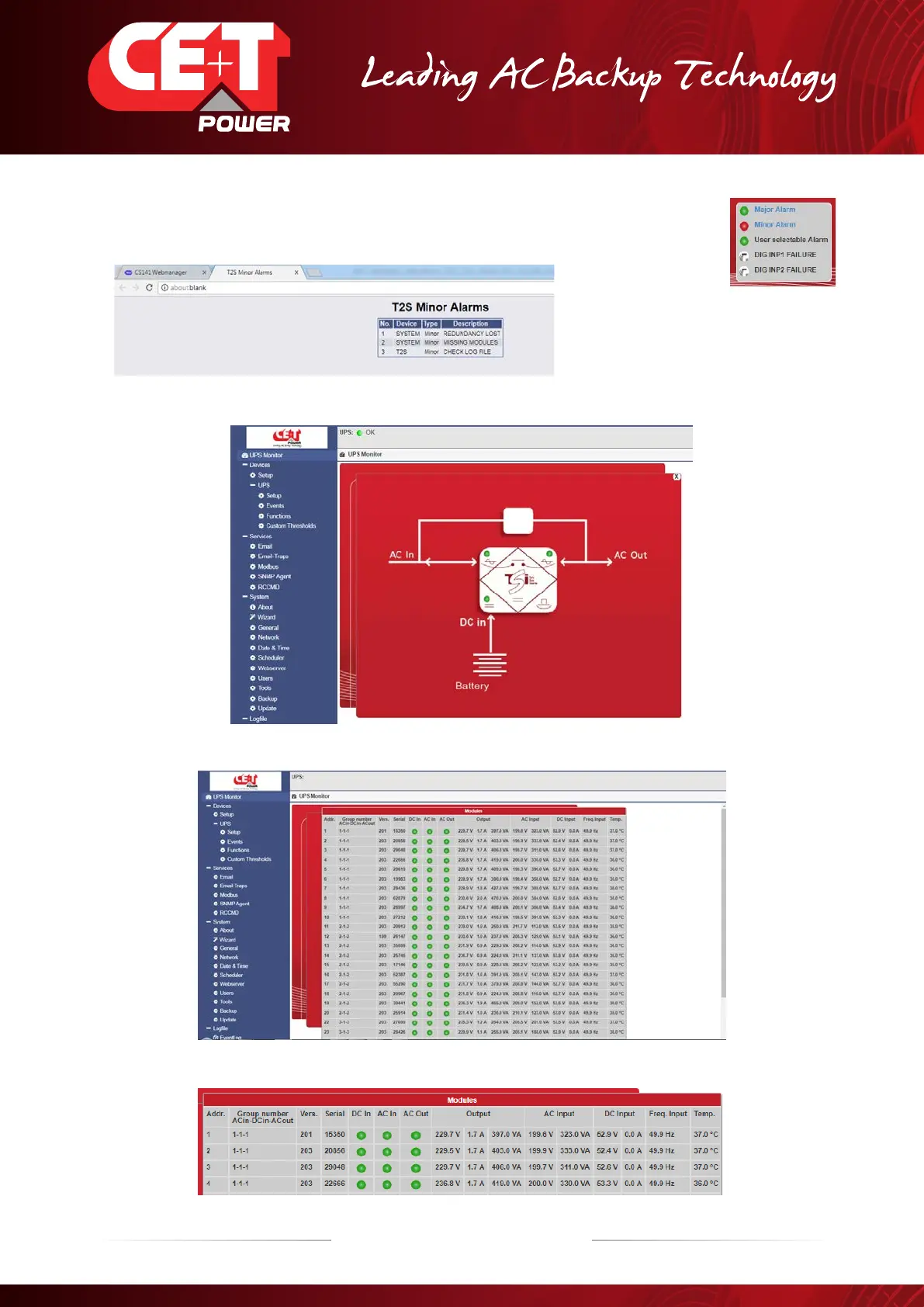

76 – Monitoring – User manual – v1.2
Monitoring - CanDis
4. Green LEDs mean there is no alarm at the moment. If LEDs turn red one or more alarms are present.
A click on the Major or Minor alarm line will provide the corresponding alarm in a new page.
(The following image is minor alarm).
5. Click on middle of the TSI Logo, the following pop up screen will appear.
6. Click on middle of the TSI Logo in the pop up screen gives the modules detail screen.
Inverter details are as follows:
To Next Page
