SECTION 5

PERFORMANCE

CESSNA

MODEL 172S NAV

III

ENDURANCE PROFILE

MINUTES RESERVE

GALLONS USABLE FUEL

CONDITIONS:

2550

Pounds

Recommended

Lean

Mixture

for

Cruise

All

Altitudes

Standard

Temperature

NOTE

0585T1005

This chart allows for the fuel used for engine start,

taxi, takeoff and

climb, and the time during climb.

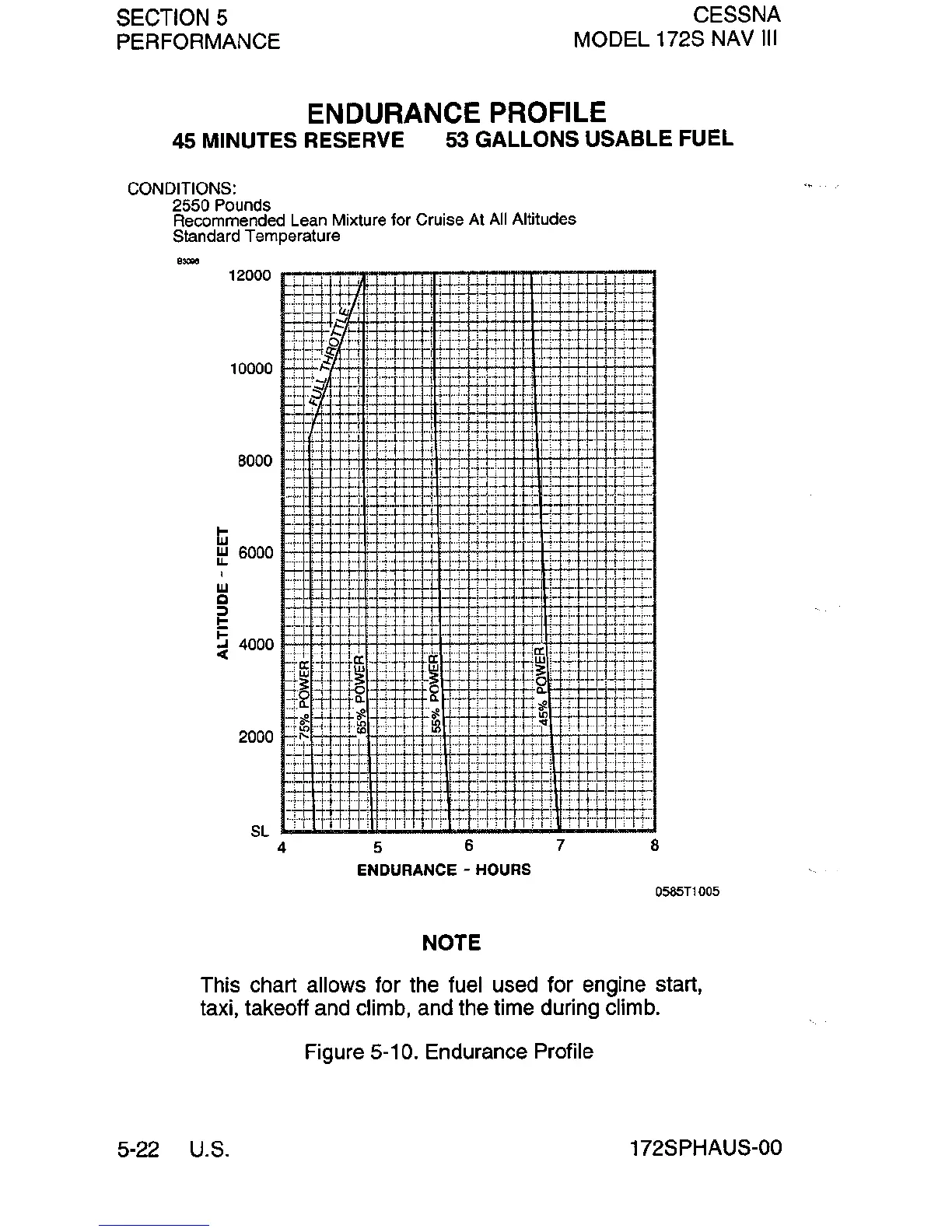

Figure 5-10. Endurance Profile

5-22 U.S.

172SPHAUS-OO
