CESSNA
SECTION
9 - SUPPLEMENTS
SUPPLEMENT 1
MODEL 172S NAV III
GENERAL (CONTINUED)
'"''
POINTER MODEL 4000-11
EMERGENCY LOCATOR TRANSMITIER
ON
1
~II D II~
RESET
/
4 3 2
5

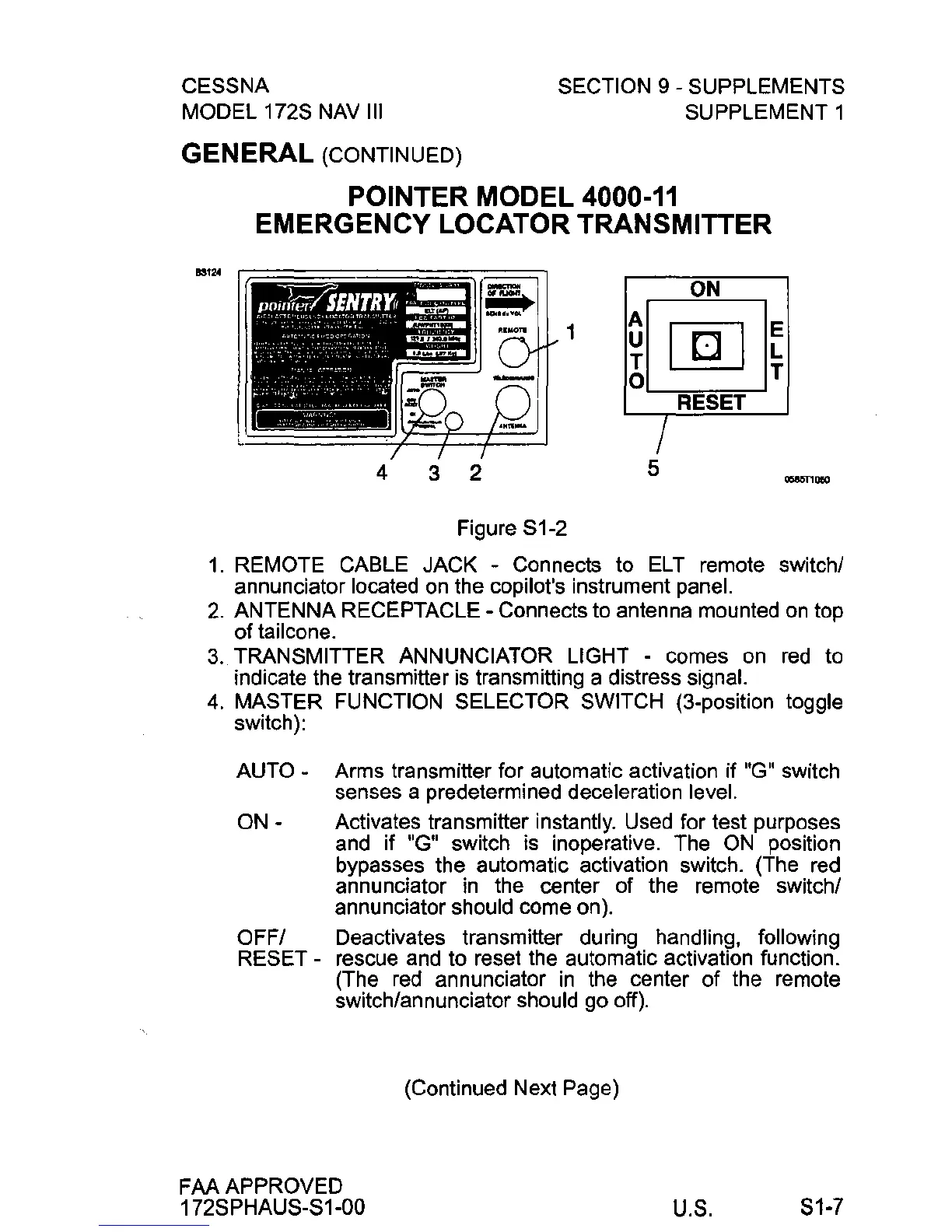

Figure S1-2
.,"'"''
1. REMOTE CABLE JACK - Connects to ELT remote switchl
annunciator
located on the copilot's instrument panel.
2. ANTENNA RECEPTACLE - Connects to antenna mounted on top
of
tailcone.
3. TRANSMITTER ANNUNCIATOR LIGHT - comes on red to
indicate the transmitter
is transmitting a distress signal.
4. MASTER FUNCTION SELECTOR SWITCH (3-position toggle
switch):
AUTO - Arms transmitter for automatic activation if "G" switch
senses a predetermined
deceleration level.
ON - Activates transmitter instantly. Used for test purposes
and if "G" switch is inoperative. The ON position
bypasses the automatic activation switch. (The
red
annunciator in the center of the remote switchl
annunciator
should come on).
OFFI Deactivates transmitter during handling, following
RESET - rescue and to reset the automatic activation function.
(The
red annunciator in the center of the remote
switch/annunciator
should go off).
FAA APPROVED
172SPHAUS-S1-00
(Continued Next Page)
