Cessna 172S Nav III User Manual

CESSNA
SECTION
9 - SUPPLEMENTS
SUPPLEMENT 1
MODEL 172S NAV III
GENERAL (CONTINUED)
In accordance with FAA regulations, the ELT's battery pack must be
replaced after 2 years shelf or service life or for any of the following
reasons:
.,,"
a. After the transmitter has been used in an emergency situation
(including any inadvertent activation of unknown duration).
b. After the transmitter has been operated for more than one
cumulative hour (e.g. time accumulated in several tests and
inadvertent activation
of known duration).
c. On or before battery replacement date. Battery replacement
date is marked on the battery pack and the label on the
transmitter.

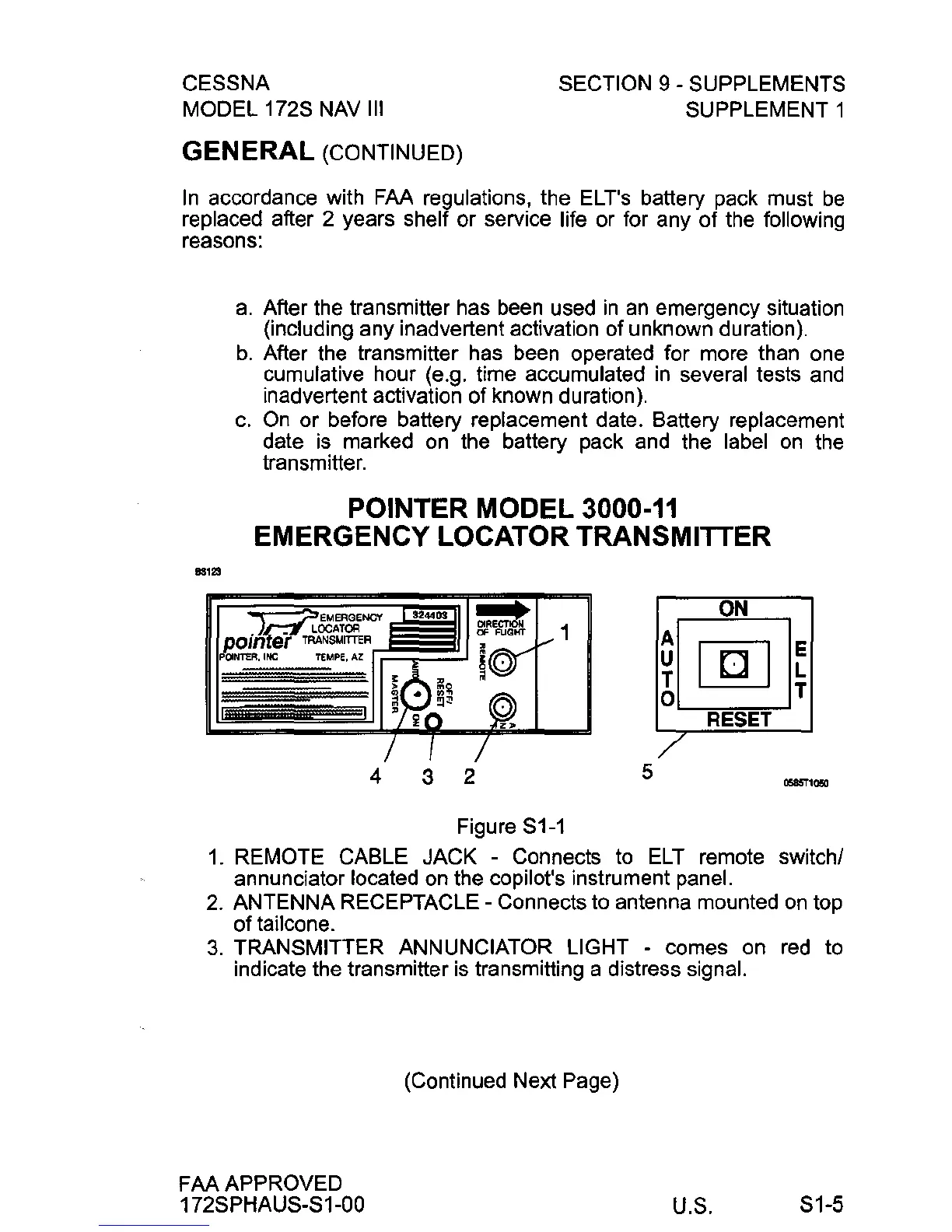

POINTER MODEL 3000-11
EMERGENCY LOCATOR TRANSMITTER
ON
1
ill D II~
4 3 2
Figure S1-1
/
5
RESET
... ,'"''
1. REMOTE CABLE JACK - Connects to ELT remote switch!
annunciator
located on the copilot's instrument panel.
2. ANTENNA RECEPTACLE - Connects to antenna mounted on top
oftailcone.
3. TRANSMITTER ANNUNCIATOR LIGHT - comes on red to
indicate the transmitter is transmitting a distress
signal.
FAAAPPROVED
172SPHAUS-S 1-00
(Continued Next Page)
U.S.
S1-5

Cessna 172S Nav III Specifications

General

Manufacturer	Cessna
Model	172S Nav III
Engine	Lycoming IO-360-L2A
Horsepower	180 hp
Cruise Speed	124 knots (143 mph, 230 km/h)
Service Ceiling	13, 500 ft (4, 115 m)
Takeoff Distance (Ground Roll)	960 ft (293 m)
Landing Distance (Ground Roll)	575 ft (175 m)
Seating Capacity	4
Type	Single-engine, high-wing
Propeller	2-blade, constant-speed
Fuel Capacity	56 gallons
Wingspan	36 ft 1 in
Length	27 ft 2 in
Height	8 ft 11 in
Stall Speed	47 knots
Range	640 nautical miles
Rate of Climb	720 ft/min (3.7 m/s)
Avionics	Garmin G1000
Maximum Takeoff Weight	2, 550 lbs (1, 157 kg)
