Cessna 172S Nav III User Manual

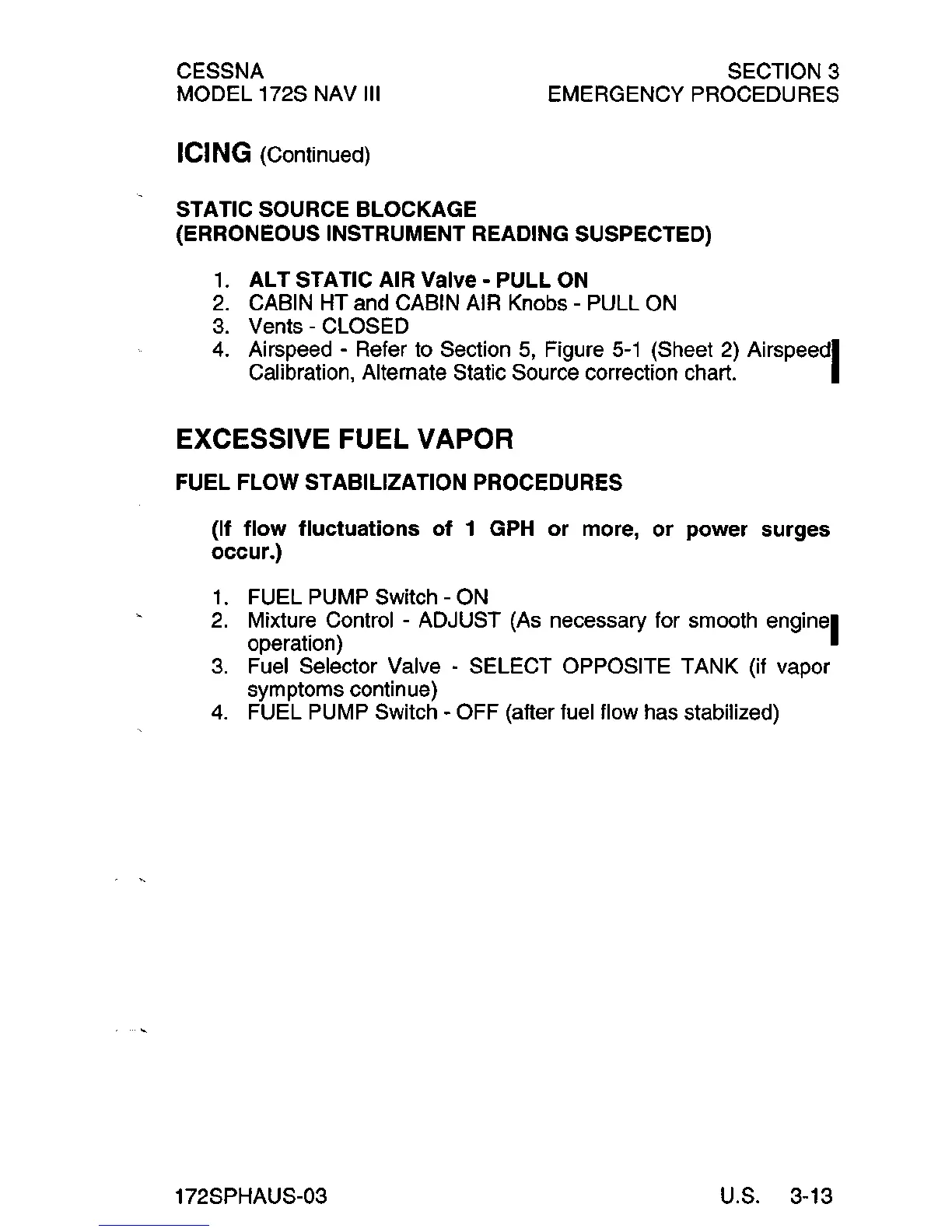

CESSNA
MODEL 172S NAV III
SECTION 3
EMERGENCY
PROCEDURES
ICI NG (Continued)
STATIC SOURCE BLOCKAGE
(ERRONEOUS INSTRUMENT READING SUSPECTED)
1. ALT STATIC AIR Valve - PULL ON
2. CABIN HT and CABIN AIR Knobs - PULL ON
3. Vents - CLOSED
4. Airspeed - Refer to Section 5, Figure 5-1 (Sheet 2) Airspeedl
Calibration, Alternate Static Source correction chart.
EXCESSIVE FUEL VAPOR
FUEL FLOW STABILlZATION PROCEDURES
(If
flow fluctuations of 1 GPH or more, or power surges
occur.)
1. FUEL PUMP Switch - ON
2. Mixture Control - ADJUST (As necessary for smooth enginel
operation)
3. Fuel Selector Valve· SELECT OPPOSITE TANK (if vapor
symptoms continue)
4. FUEL PUMP Switch - OFF (after fuel flow has stabilized)
172SPHAUS-03 U.S. 3-13

Cessna 172S Nav III Specifications

General

Manufacturer	Cessna
Model	172S Nav III
Engine	Lycoming IO-360-L2A
Horsepower	180 hp
Cruise Speed	124 knots (143 mph, 230 km/h)
Service Ceiling	13, 500 ft (4, 115 m)
Takeoff Distance (Ground Roll)	960 ft (293 m)
Landing Distance (Ground Roll)	575 ft (175 m)
Seating Capacity	4
Type	Single-engine, high-wing
Propeller	2-blade, constant-speed
Fuel Capacity	56 gallons
Wingspan	36 ft 1 in
Length	27 ft 2 in
Height	8 ft 11 in
Stall Speed	47 knots
Range	640 nautical miles
Rate of Climb	720 ft/min (3.7 m/s)
Avionics	Garmin G1000
Maximum Takeoff Weight	2, 550 lbs (1, 157 kg)
