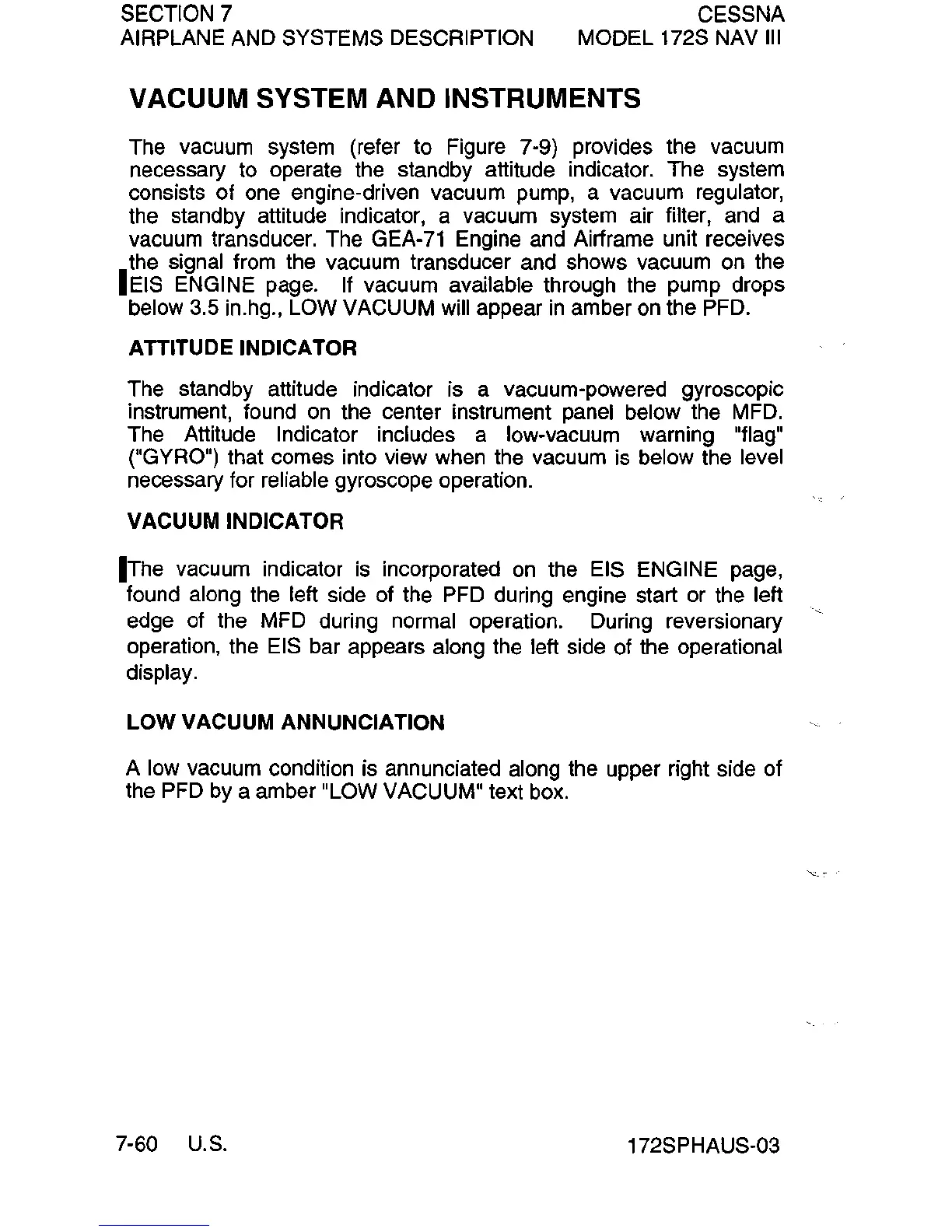

SECTION 7
AIRPLANE AND SYSTEMS DESCRIPTION
CESSNA
MODEL 172S NAV
III
VACUUM SYSTEM AND INSTRUMENTS
The vacuum system (refer to Figure 7-9) provides the vacuum
necessary to operate the standby attitude indicator. The system
consists of one engine-driven vacuum pump, a vacuum regulator,
the standby attitude indicator, a vacuum system air filter, and a
vacuum transducer. The
GEA-71
Engine and Airframe unit receives
the signal from the vacuum transducer and shows vacuum
on
the
IEIS
ENGINE page.
If
vacuum available through the pump drops
below 3.5 in.hg.,
LOW
VACUUM will appear
in
amber
on
the
PFD.
ATTITUDE INDICATOR
The standby attitude indicator is a vacuum-powered gyroscopic
instrument, found
on
the center instrument panel below the
MFD.
The Attitude Indicator includes a low-vacuum warning "flag"
("GYRO")
that comes into view when the vacuum is below the level
necessary for
reliable gyroscope operation.
VACUUM INDICATOR
IThe
vacuum indicator
is
incorporated
on
the
EIS
ENGINE page,
found along the left side of the
PFD
during engine start
or
the left
edge of the
MFD
during normal operation. During reversionary
operation, the
EIS
bar appears along the left side of the operational
display.
LOW VACUUM ANNUNCIATION
A low vacuum condition is annunciated along the upper right side of
the
PFD
by
a amber
"LOW
VACUUM" text
box.
7-60
U.S.
172SPHAUS-03
