Cessna 172S Nav III User Manual

CESSNA
MODEL 172S
NAV III
SECTION 7
AIRPLANE AND SYSTEMS DESCRIPTION
ELECTRICAL SYSTEM (Continued)
"'M
(/)
::0
[]J
a;
:;:;
c:
Switch
~I>"'b-_----.J
tfl STD BY
BATT
On/Off
Control
L--'O"r<>--v--+--7JTest Voltage
Sense
Test
Load
= =
Test LED Light (green)l
1r
121Test
iL_ ---~!:----,:SJ Annunciation
,
,
Battery : Fuse
:,5A
ToStandby (
Standby
Battery :
(/)
::0
[]J
1J
Ammeter ,
(MFD or PFD) .L- __ --+-: -oFu'-sD-e-
Current Shunt
:5A
~
lS 1>"'0------------'--.;0 Main Bus
c:s WARN : Voltage Sense
L _____________________________ _
077OT1S11l

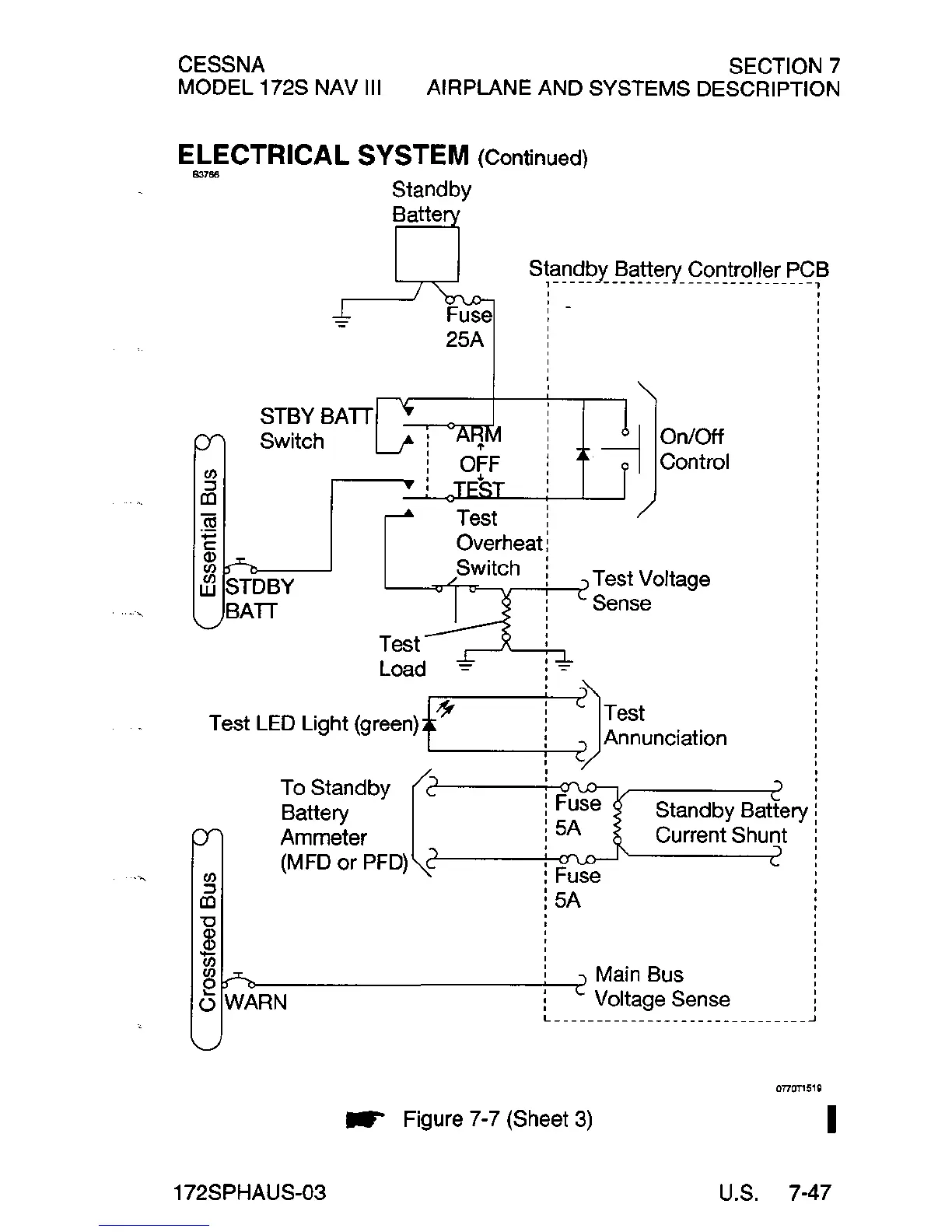

... Figure 7-7 (Sheet 3)
I
172SPHAUS-03
U.S.
7-47

Cessna 172S Nav III Specifications

General

Manufacturer	Cessna
Model	172S Nav III
Engine	Lycoming IO-360-L2A
Horsepower	180 hp
Cruise Speed	124 knots (143 mph, 230 km/h)
Service Ceiling	13, 500 ft (4, 115 m)
Takeoff Distance (Ground Roll)	960 ft (293 m)
Landing Distance (Ground Roll)	575 ft (175 m)
Seating Capacity	4
Type	Single-engine, high-wing
Propeller	2-blade, constant-speed
Fuel Capacity	56 gallons
Wingspan	36 ft 1 in
Length	27 ft 2 in
Height	8 ft 11 in
Stall Speed	47 knots
Range	640 nautical miles
Rate of Climb	720 ft/min (3.7 m/s)
Avionics	Garmin G1000
Maximum Takeoff Weight	2, 550 lbs (1, 157 kg)
