CET PMC-340 User Manual

CET Inc.
21
9600/19200/38400
CFG
Set Comm. Port Data Format
8N2/8O1/8E1/
8N1/8O2/8E2
8E1
dMd SET
Demand Parameters
PErIod
Set Demand Period
1 to 60 (min)
15
nUM
Set No. of Sliding Windows
1 to 15
15
PULS SET
Energy Pulse
LEd
Enable LED Energy Pulsing
OFF / P / Q
P
do
Enable DO Energy Pulsing
OFF / P IMP / P EXP /
P TOT / Q IMP / Q EXP /
Q TOT / PPS
5
/ DMD
6
/
TOU
7
P IMP
CnST
Select Pulse Constant
8
1/10/100/1000/3200
100
CLr SET
Clear Data
CLr EnGY
Clear All Energy
9
YES/NO
NO
CLr dMd
Clear All Demand
10
YES/NO
NO
CLr Mn
Clear All Max./Min.
11
YES/NO
NO
CLr dI
Clear All DI Counters
YES/NO
NO
TIME SET
Date and Time
dAT
Enter the Current Date
YY-MM-DD
/
Clk
Enter the Current Time
HH:MM:SS
/
InFo
View Meter Information (Read Only)
FW
Firmware Version
For example, 1.00.00
means the firmware
version is V1.10.00.
/
Pro
Protocol Version
e.g. 10 means V1.0
/
-
Firmware Update Date
e.g. 20140915
/
-
Meter Serial Number
e.g. 1409005094
/
FCnT
Counter for Important Setup Parameter
Changes via Front Panel
12
/
/
CCnT
Counter for Important Setup Parameter
Changes via Communications
12
/
/

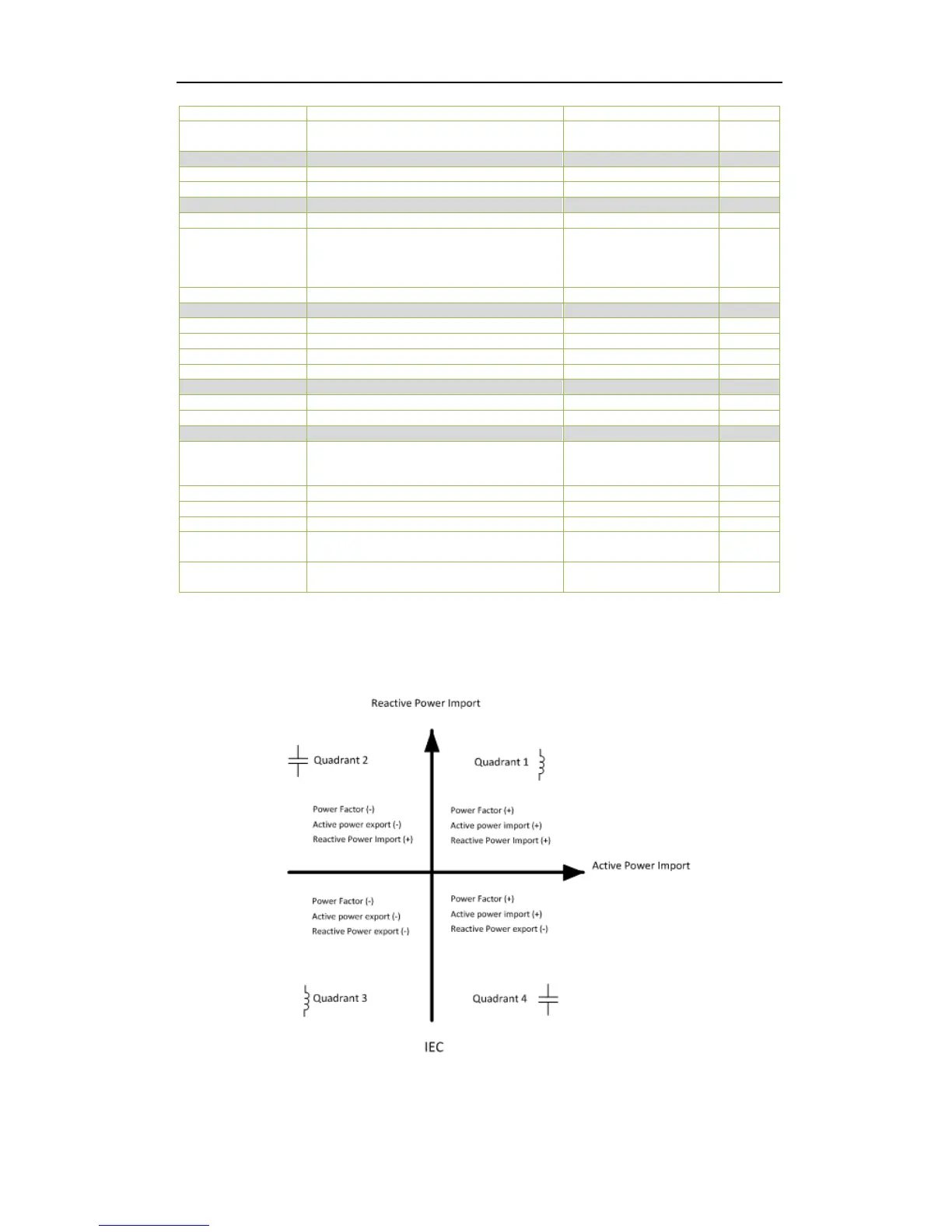

Table 3-3 Setup Parameters
Notes:
1) The wiring modes 1P2W L-N and 1P2W L-L are not supported by PMC-340A.
2) This screen only appears if the PMC-340 is equipped with CT Inputs.
3) Power Factor Convention
