CET PMC-340 User Manual

CET Inc.
18

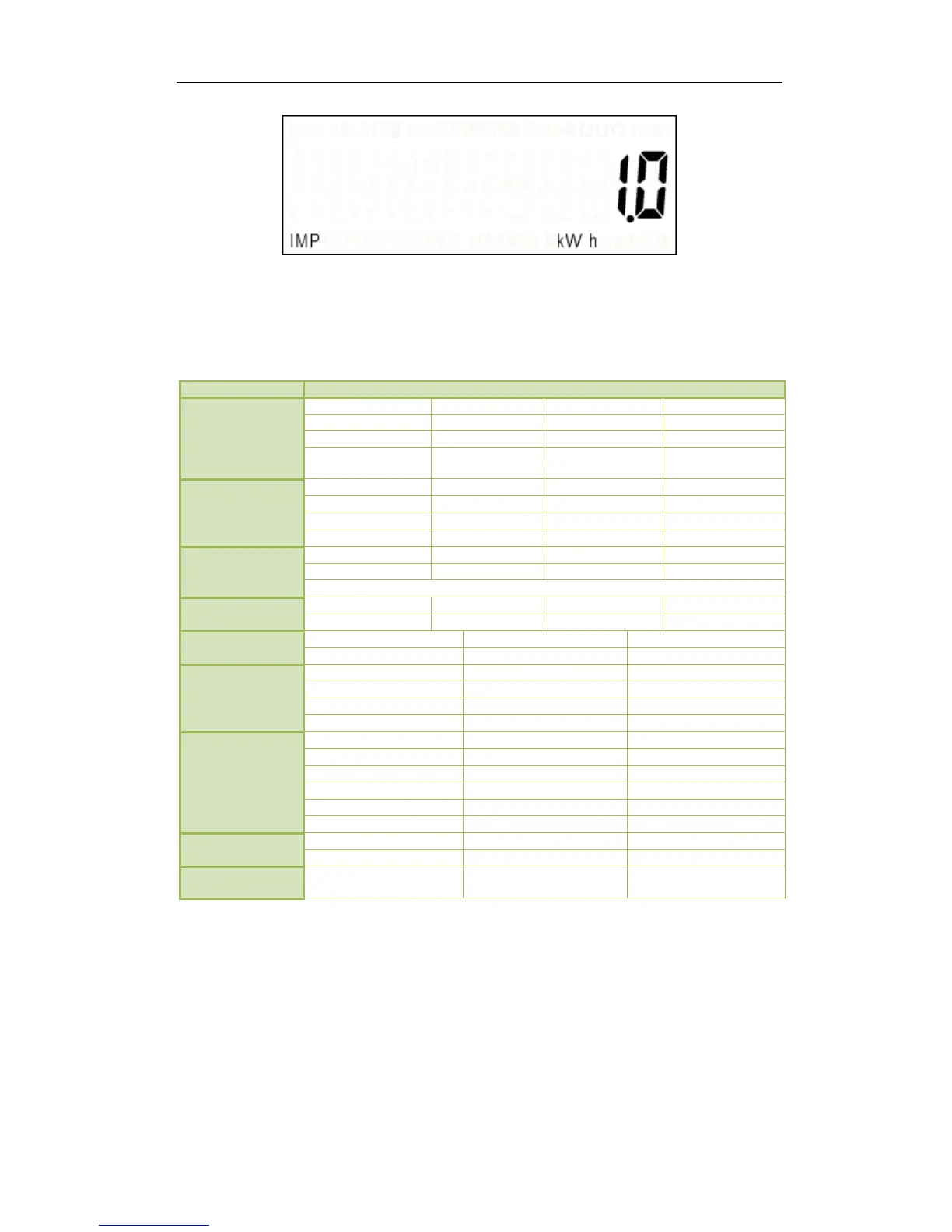

Figure 3-3 Default Display
The following table illustrates the menu options and the available measurements under each menu.
Depending on the Wiring Mode selected, certain measurements may not be available. For example,
the per-phase Uln, Uln Average, In, per-phase kW, kvar, kVA and PF measurements are not available
when the Wiring Mode is set to 3P3W or 1P2W L-L.
Menu
Measurements
U/I
(Voltage/Current)
Uan
Ubn
Ucn
Uln Average
Uab
Ubc
Uca
Ull Average
Ia
Ib
Ic
I Average
In
Frequency
Voltage
Unbalance
Current
Unbalance
PoWEr
(Power)
kWa
kWb
kWc
kW Total
kvara
kvarb
kvarc
kvar Total
kVAa
kVAb
kVAc
kVA Total
PFa
PFb
PFc
PF Total
EnErGy
(Energy)
kWh Import
kWh Export
kWh Net
kWh Total
kvarh Import
kvarh Export
kvarh Net
kvarh Total
kVAh Total
ToU EnEr6y
(TOU Energy)
T1 kWh Import
T1 kWh Export
T2 kWh Import
T2 kWh Export
T3 kWh Import
T3 kWh Export
T4 kWh Import
T4 kWh Export
rEAL dMd
(Demand)
Ia Demand
Ib Demand
Ic Demand
kW Total Demand
kvar Total Demand
kVA Total Demand
ToU dMd
(TOU DMD)
T1 kW Demand
T1 kvar Demand
T1 kVA Demand
T2 kW Demand
T2 kvar Demand
T2 kVA Demand
T3 kW Demand
T3 kvar Demand
T3 kVA Demand
T4 kW Demand
T4 kvar Demand
T4 kVA Demand
MAx dMd
(Max. DMD)
Ia Max. Demand
Ib Max. Demand
Ic Max. Demand
kW Total Max. Demand
kvar Total Max. Demand
kVA Total Max. Demand
T1 kW Max. Demand
T1 kvar Max. Demand
T1 kVA Max. Demand
T2 kW Max. Demand
T2 kvar Max. Demand
T2 kVA Max. Demand
T3 kW Max. Demand
T3 kvar Max. Demand
T3 kVA Max. Demand
T4 kW Max. Demand
T4 kvar Max. Demand
T4 kVA Max. Demand
THd
(THD)
Uan/Uab
1
THD
Ubn/Ubc
1
THD
Ucn/Uca
1
THD
Ia THD
Ib THD
Ic THD
dI CoUnTer
(DI Counter)
DI1
DI2
DI3
Table 3-4 PMC-340 Data Display Pages
Notes:
1) When the Wiring Mode is 3P3W or 1P2W L-L, the phase A/B/C Voltage THD/TOHD/TEHD/HDxx
is phase AB/BC/CA Voltage THD/TOHD/TEHD/HDxx.
3.6 Setup Configuration
3.6.1 Functions of buttons
The two front panel buttons take on different meanings in the Setup Configuration mode:
<↩>: Pressing this button for two seconds toggles between Data Display and Setup
