3.6.2 Setup Menu

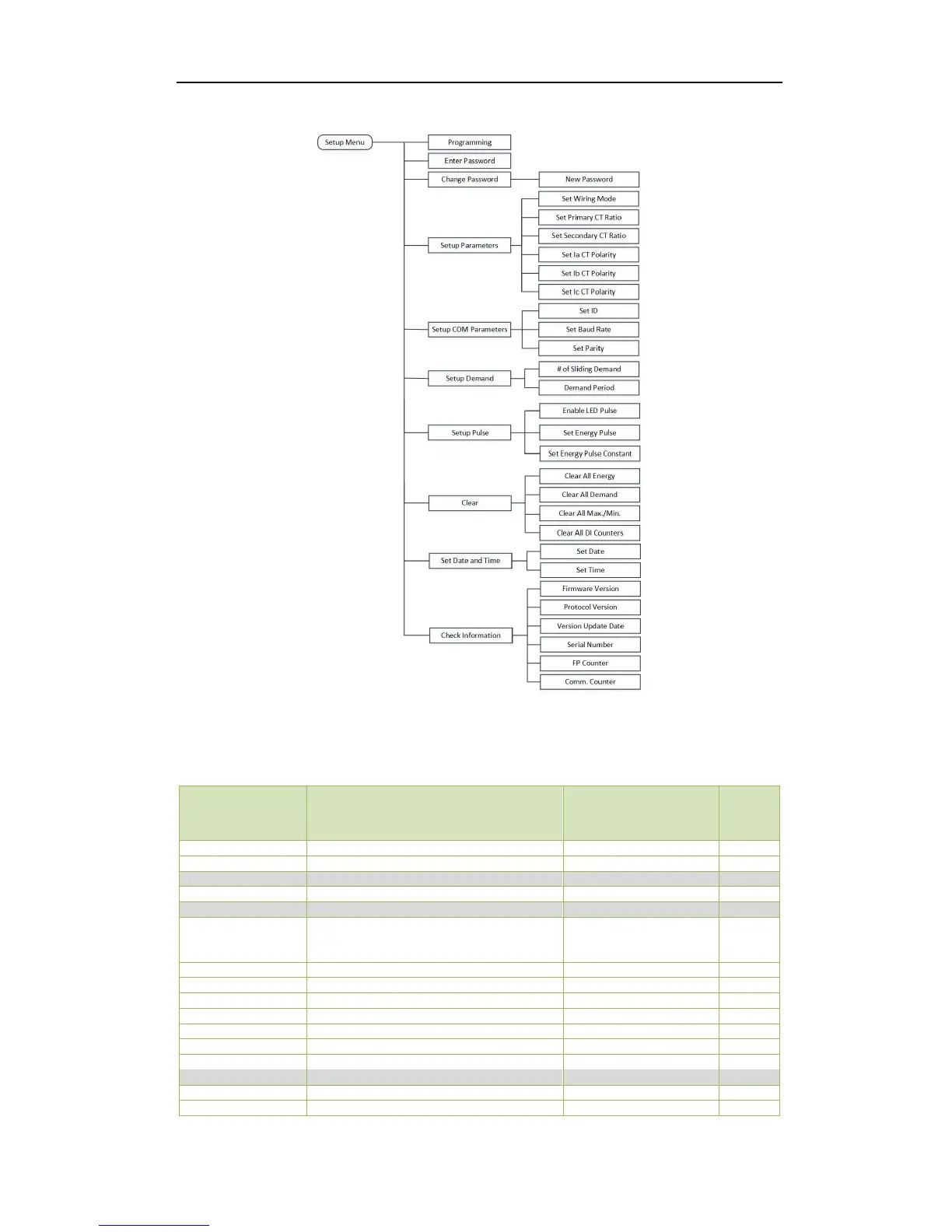

Figure 3-4 Setup Menu
3.6.3 Configuration
The Setup Configuration mode provides access to the following setup parameters:
Label
Description
Range
Default
Menu
Main Sub
ProGrAM
Setup Configuration
/
/
PW
Enter Password
0 to 9999
0
SET PW
Set New Password
Enter New Password
0 to 9999
0
SyS SET
Basic Parameters
TyPE
Set Meter’s wiring connection
1
DEMO/1P3W/3P3W/
3P4W/1P2W L-N/
1P2W L-L
3P4W
CT1
Set CT Primary Ratio
2
1 to 30,000
5
CT2
Set CT Secondary Ratio
2
1 to 5
5
I1 rEv
Reverse Phase A CT Polarity
YES/NO
NO
I2 rEv
Reverse Phase B CT Polarity
YES/NO
NO
I3 rEv
Reverse Phase C CT Polarity
YES/NO
NO
PF
Set PF Convention
3
IEC/IEEE/-IEEE
IEC
kvA
Set kVA Calculation Method
4
V=Vector, S=Scalar
V
CoM SET
Comm. Parameters
Id
Set Meter Address
1 to 247
100
bAUd
Set Baud Rate in Bits Per Second (bps)
1200/2400/4800/
9600
