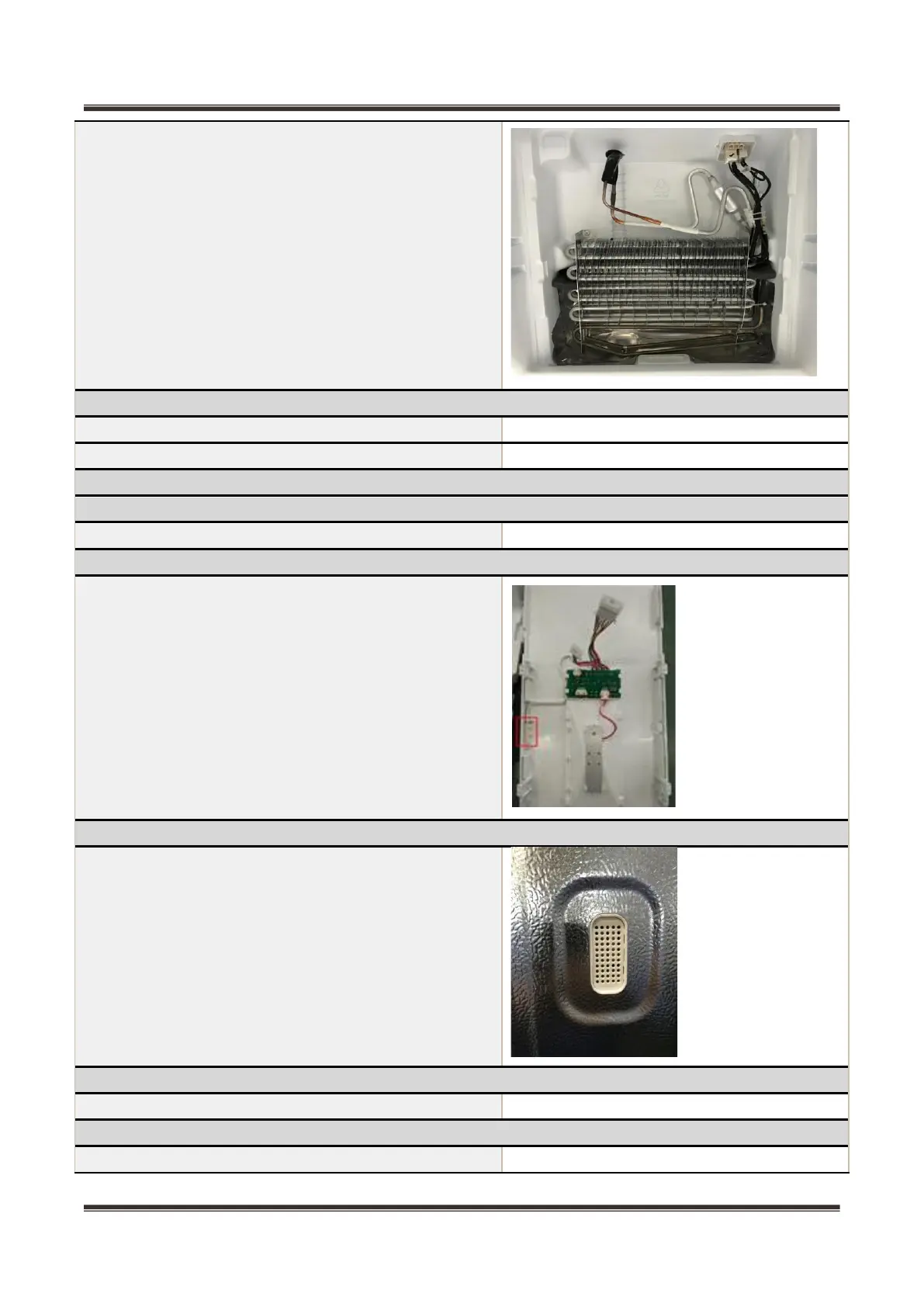

Defrost heater
The defrost heater is located at bottom of the evaporator.
1）Disconnect the connector of defrost heater.
2
）
Cut off the band which fixes the defrost heater.
3
）
Take off the defrost heater from the evaporator.
*Don’t break the welding of the evaporator in case that
only the defrost heater needs to be replaced.
Evaporator in refrigerating chamber
Evaporator in refrigerating chamber
Components on the evaporator
Sensor in freezing chamber
Sensor in freezing chamber
Sensor in refrigerating chamber
Before remove the sensor, the freezer duct assembly
should be removed
1
）
Remove the air duct assembly from the freezer.
2
）
Remove the sensor.
Ambient temperature sensor
Sensor position in the back of the box, with a word grant
open the lid；
Sensor in Variable temperature chamber
Sensor in Variable temperature chamber
