Challenger Lifts 4P14EFX - Cross Beam Components

Model 4P14 Flat Deck, Closed Front
Installation, Operation and Maintenance
18 Rev 08/11/17
4P14-X-IOM-A.doc
PARTS BREAKDOWN (continued)

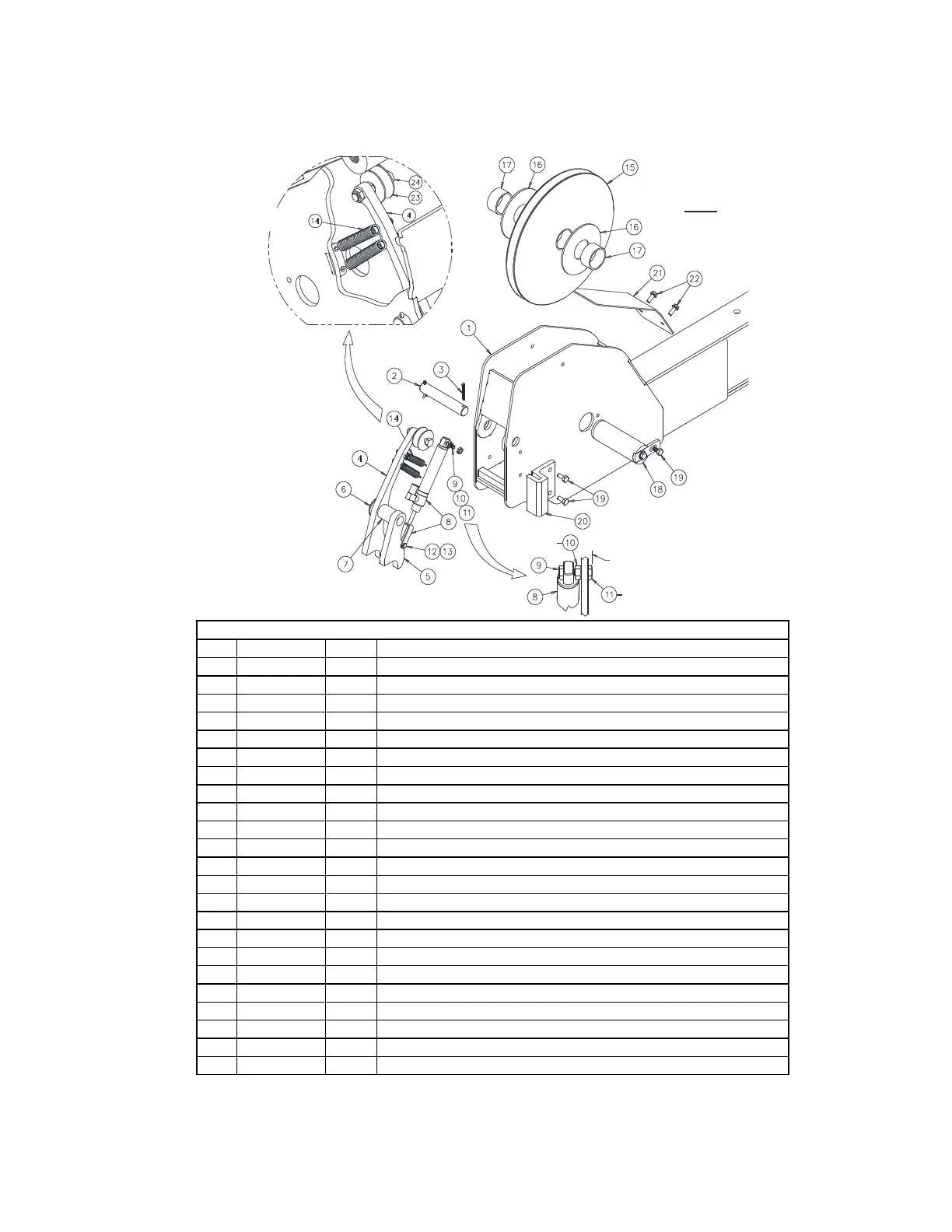

Fig D. Cross Beam
HOOK SPRING BEHIND
ITEM 4 BOLT HEAD
ITEMS 26 & 28
FLUSH THIS
SURFACE
INSTALLED w/
LOCTITE #242
INSTALLED w/
LOCTITE #242
NOTE:
ASSEMBLY
TYPICAL
BOTH ENDS
HOOK SPRING BEHIND
ITEM 4 BOLT HEAD
ITEMS 26 & 28
FLUSH THIS
SURFACE
INSTALLED w/
LOCTITE #242
INSTALLED w/
LOCTITE #242
NOTE:
ASSEMBLY
TYPICAL
BOTH ENDS
HOOK SPRING BEHIND
ITEM 4 BOLT HEAD
ITEMS 26 & 28
FLUSH THIS
SURFACE
INSTALLED w/
LOCTITE #242
INSTALLED w/
LOCTITE #242
NOTE:
ASSEMBLY
TYPICAL
BOTH ENDS
HOOK SPRING BEHIND
ITEM 4 BOLT HEAD
ITEMS 26 & 28
FLUSH THIS
SURFACE
INSTALLED w/
LOCTITE #242
INSTALLED w/
LOCTITE #242
NOTE:
ASSEMBLY
TYPICAL
BOTH ENDS
ITEM # PART # QTY/LIFT DESCRIPTION
1 JZQ7-04-01-00 2 CROSSBEAM WELD
2
B40127
4 LOCK PIVOT PIN
3 B40126 8 3mm x 38mm Lg. COTTER PIN
4 B40134 2 SLACK CABLE LATCH
5 B40131 4 PRIMARY LOCK PAWL
6 B40128 4 19mm WASHER
7 B40132 4 SPACER BUSHING
8
B40141
4 AIR CYLINDER ASSEMBLY
9 B40466 4 M6 x 28mm Lg HEX HEAD BOLT
10 B40467 4 M6 HEX NUT
11 B40144 4 M6 HEX JAM NUT
12 B40123 4 CLEVIS PIN
13 B40124 4 HAIR PIN COTTER PIN
14 B40139 8 EXTENSION SPRING
15 B40650 10 SHEAVE
16 B40053 4 1/8” THICK BEARING
17 B404038-X 8 SHEAVE SPACER BUSHING
18 B40116 4 SHEAVE PIN (CROSS BEAM)
19
B31188
16 M8 x 16mm Lg. HEX SOCKET HEAD CAP SCREW
20 40118 8 SLIDE BLOCK
21 JZQ7-04-02 4 SHEAVE GUARD
22 40120 8 1/4-20NC x 1/2" Lg. SELF TAPPING SCREW
23 JSZ5.5-02-05 4 ROLLER
24 B40137 4 RETAINING RING
Replace all worn, damaged, or broken parts with parts approved by Challenger Lifts Inc.
or with parts meeting Challenger Lifts Inc. specifications.
Contact your local Challenger Lifts Parts Distributor for pricing and availability.
(Call Challenger Lifts Inc. (502) 625-0700 for the Parts Distributor in your area)
