Model 4P14 Flat Deck, Closed Front
Installation, Operation and Maintenance
9 Rev 08/11/17
4P14-X-IOM-A.doc
D
ECAL PLACEMENT
43) Clean the column surface before placing any
decals.
44) Install safety decals (
NOTICE / CAUTION /
WARNING
) at the power unit as shown in Fig
14 below. An illustration of these safety
decals can be found on page 3.

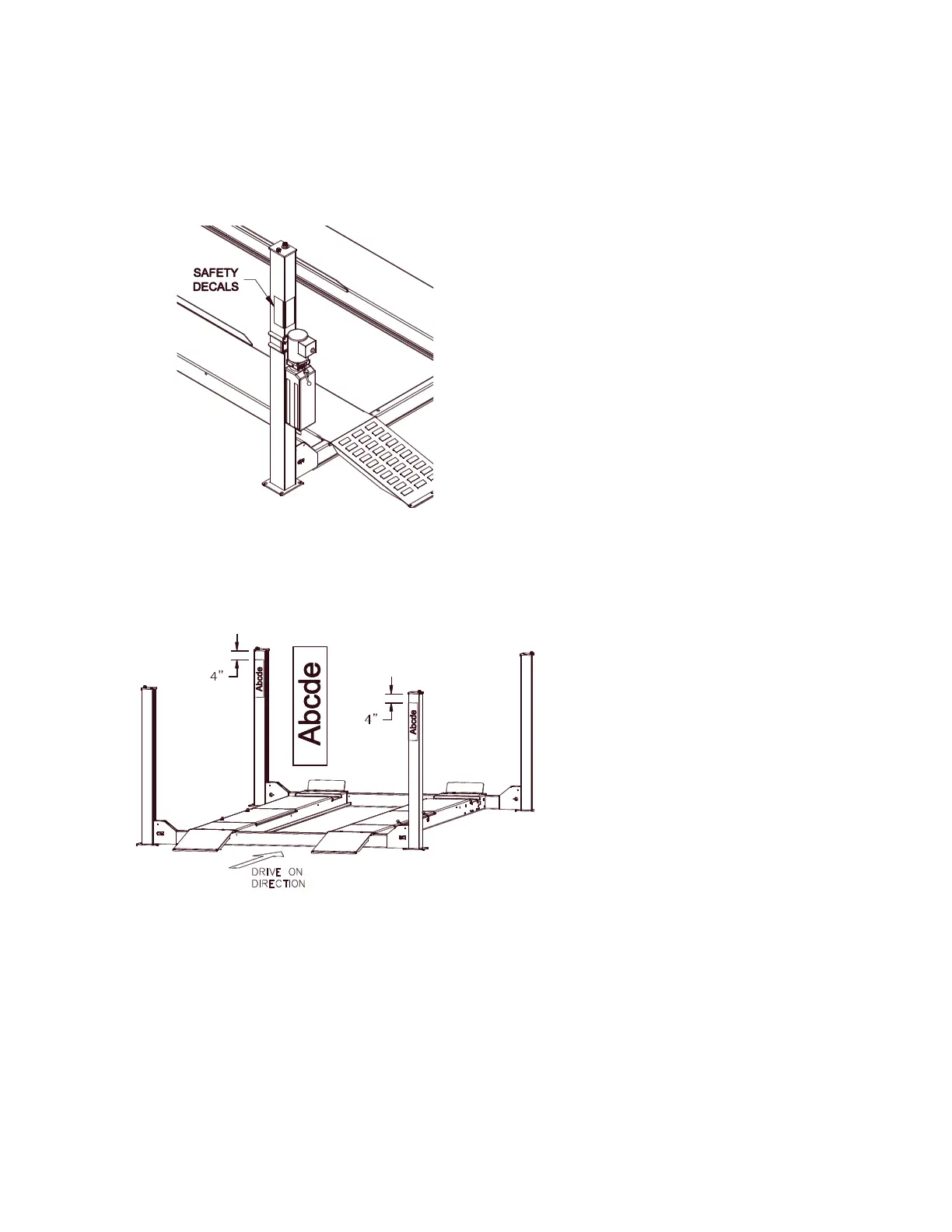

Fig 14 – Safety Decal Placement
45) Place a logo decal on the rear surface of
both the front driver side column and rear
passenger side column. Center each decal
left-to-right and position 4” from top of
column, Fig 15.
Fig 15 – Logo Decal Placement
