Model 4P14 Flat Deck, Closed Front
Installation, Operation and Maintenance
19 Rev 08/11/17
4P14-X-IOM-A.doc
PARTS BREAKDOWN (continued)

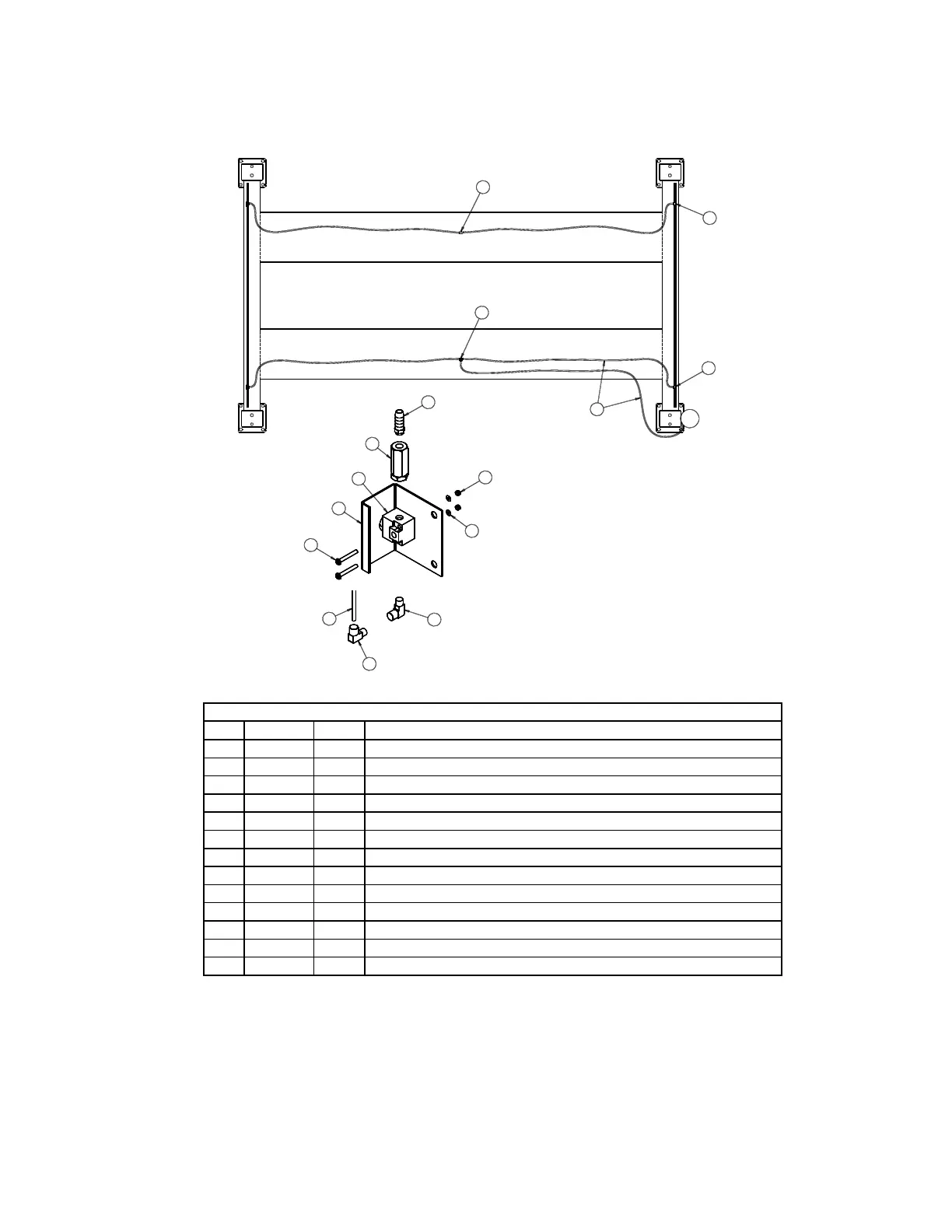

Fig F. Air Lock Release
9
7
10
8
1
2
6
5
FRONT
3
4
12
11
REAR
POWER UNIT
w/ AIR VALVE
ASS'Y
10
12
12
4
10
12
11
12
12
9
6
7
10
8
2
1
5
FRONT
POWER UNIT
w/ AIR VALVE
ASS'Y
REAR
3
FRONT
POWER UNIT
w/ AIR VALVE
ASS'Y
REAR
3
4
10
12
11
12
12
9
6
7
10
8
2
1
5
FRONT
POWER UNIT
w/ AIR VALVE
ASS'Y
REAR
3
4
10
12
11
12
12
9
6
7
10
8
2
1
5
ITEM #
PART # QTY/LIFT
DESCRIPTION
1
37015 1
BUTTON VALVE BRACKET
2
37016 1
AIR VALVE
3
40091 1
IN-LINE AIR FILTER
4
37021 1
HOSE BARB
5
37023 2
#8-32 HEX NUT
6
37024
2
#8 LOCK WASHER
7
37022 2
#8-32 x 1 1/4" Lg. PAN HD. SCREW
8
37020 1
1/8” NPT STREET ELBOW
9
B37019 1
1/8” NPTM x 4mm PUSH-LOCK 90 DEGREE ELBOW
10
B00901 60 ft.
4mm DIA. PLASTIC AIR LINE
11
B40445 1
4mm STRAIGHT UNION
12
B37032
5
4mm UNION TEE
B40090 1
Button Valve Bracket Assembly (Contains items: 1, 2, 3, 4, 5, 6, 7, 8)
Replace all worn, damaged, or broken parts with parts approved by Challenger Lifts Inc.
or with parts meeting Challenger Lifts Inc. specifications.
Contact your local Challenger Lifts Parts Distributor for pricing and availability.
(Call Challenger Lifts Inc. (502) 625-0700 for the Parts Distributor in your area)
To Next Page
