Industrial Duty Logic Operators
Logic Board Overview

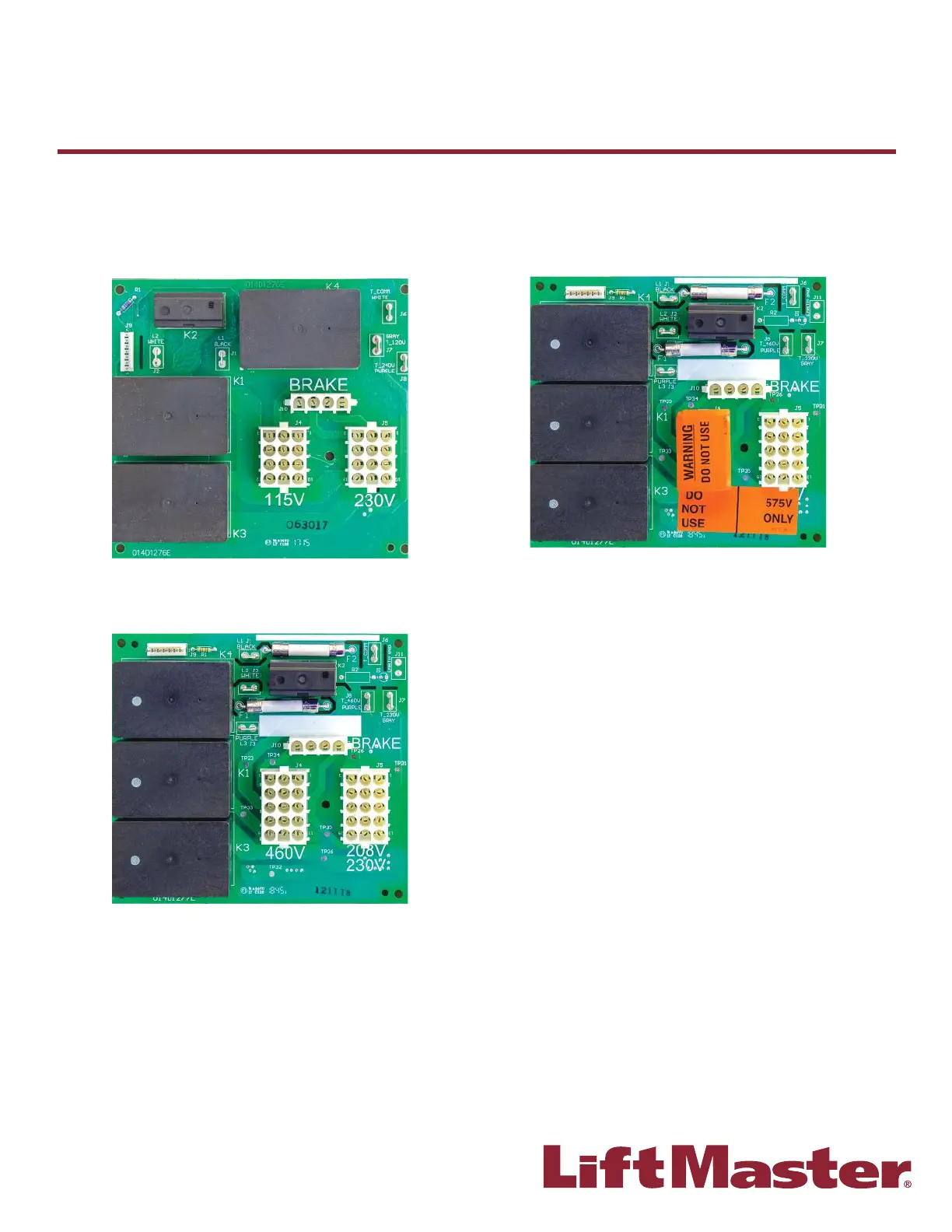

Logic 5.0 Power Board - Dual Voltage Connections
• Reduces stocking a wide variety of operators due to range of potentially required voltages.
• Minimizes lost time if operator does not meet predetermined job site voltage requirements.
3 Phase Power Board 575V
Service Kit# ...................................... K001D8397-1
1 Phase Power board - 115/230V, N4/N4X
Service Kit#
.............................................................................................................................................................................K001D8398
3 Phase Power board - 230/460/575V, N4/N4X
Service Kit#
.........................................................................................................................................................................K001D8116-1
N4 & N4X Electrical Box Board Requirements
The N4 & N4X Electrical Boxes require specifi c power boards.
When installing power boards for the N4 or N4X Electrical boxes, choose one of the compatible power boards outlined
below that fi t your specifi c voltage requirements.
1 Phase Power Board 115/230V
Service Kit# ...................................... K001D8396-1
3 Phase 208/230/460V
Service Kit# ..........................................K001D8397
