POSITION THE EXTENSION BRACKET TO POST BRACKET
Right-Hand Gate
Left-Hand Gate

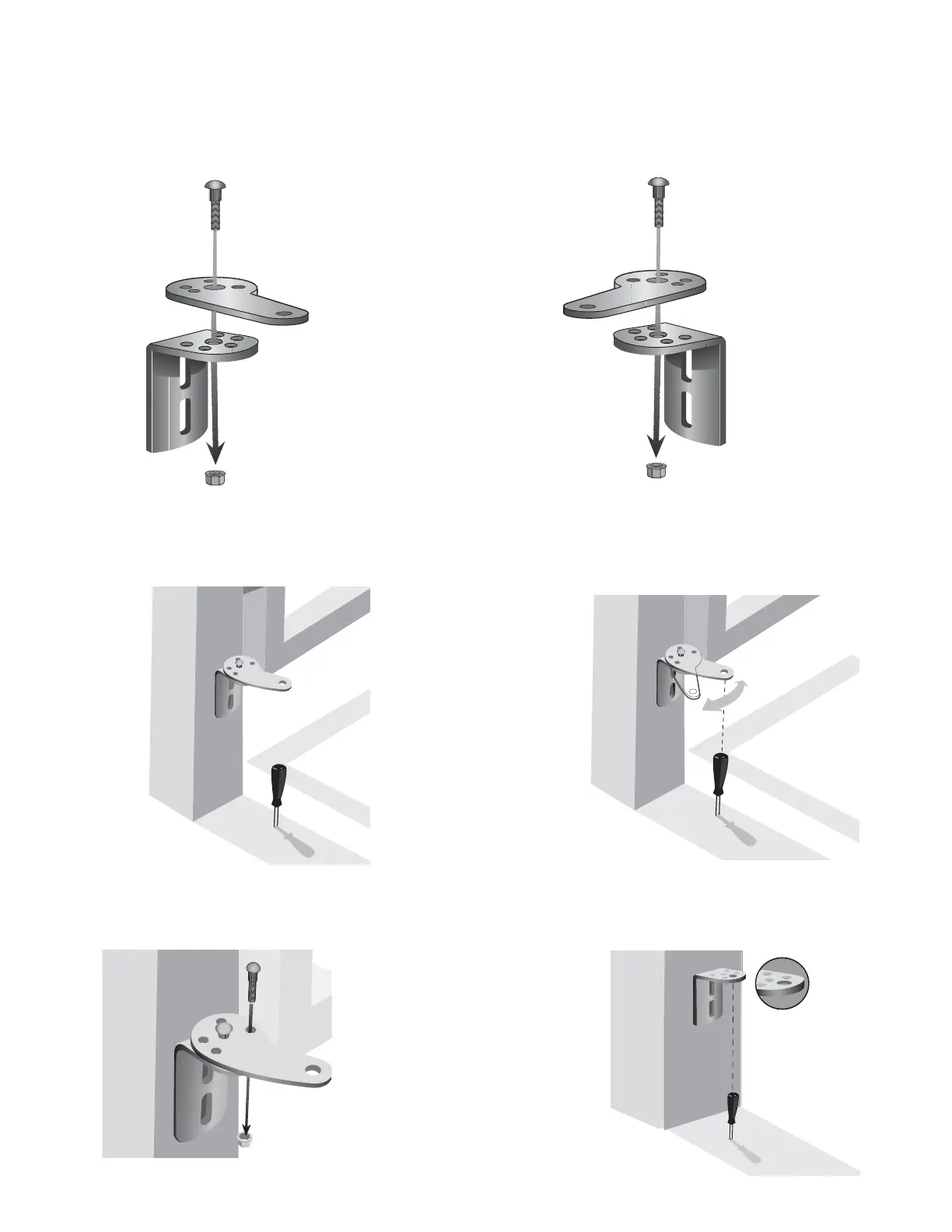

Hold post bracket in desired position. Align extension bracket to a position as CLOSE AS POSSIBLE
above the marker.
Assemble post bracket by placing the extension bracket on top of post bracket. Insert bolt through
brackets and loosely secure with 3/8" serrated fl ange nut. DO NOT TIGHTEN AT THIS TIME.
3
5/16" Ribbed Neck Bolt
5/16" Serrated Flange Nut
Installation 14
Once the extension bracket is in the desired location,
insert 5/16" ribbed neck bolt with the serrated flange
nut. DO NOT TIGHTEN AT THIS TIME.
FOR 6" AND LARGER POSTS
An extension bracket is not necessary if the operator
is being installed on a 6" (15 cm) or larger post.
Post Bracket
Post Bracket
3/8" Ribbed Neck Bolt
3/8" Ribbed Neck Bolt
3/8" Serrated Flange Nut
3/8" Serrated Flange Nut
To Next Page
