Introduction 4
Screwdriver
Adjustable End Wrench
Tape Measure
2
1
Pencil
Carpenter's Level
Clamps
Phillips Head Screwdriver
Deep Well Sockets
and Wrench
1/2", 5/8", 7/16", 9/16"
and 1/4"
Hammer
Drill
Drill Bits
1/2", 3/16", 5/16"
and 5/32"
Wire Cutters (Optional) Wire Strippers (Optional)
Welder (Optional)

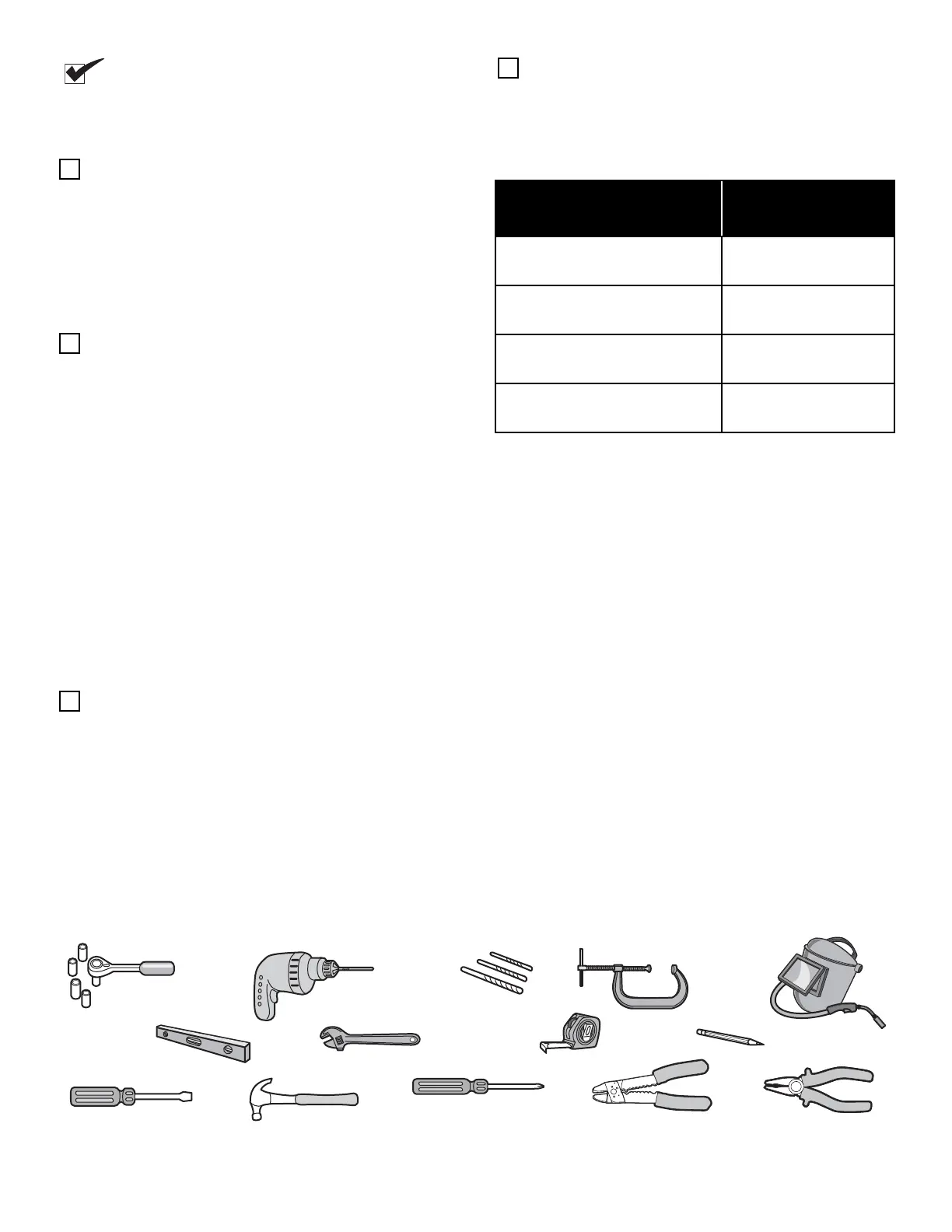

Tools Needed
During assembly, installation and adjustment of the
operator, instructions will call for tools as illustrated
below.
CONTROL BOX MOUNTING HARDWARE
• Mounting to Wood:
Four #8 x 1-1/2" wood screws
• Mounting to Brick/Cement/Masonry:
Four 1/4" masonry screws 1-3/4" long
• Mounting to Metal:
Four #10-32 machine screws with washers and
lock nuts
GATE BRACKET MOUNTING HARDWARE
For 1 or 2 inch circular or square tubular constructed
gates, use the following U-bolts with associated fl at
washers and hex nuts:
• 1" use 5/16-18 x 2-3/16" U-bolt (2)
• 2" use 5/16-18 x 3-3/16" U-bolt (2)
To secure the bracket to the gate, use the following
hardware: 1/4-20 x 3" hex head bolt with associated fl at
washers, lock washers and hex nuts (2).
For gates with fl at mounting surfaces and a maximum
thickness 2", an alternate to using U-bolts would be:
5/16-18 x 3" hex head bolt with associated fl at washers,
lock washers and hex head nuts (4).
For chain link fences or other types with circular rails,
it is best to attach a vertical support panel connecting
the top rail to the bottom rail. The gate bracket can then
be mounted to this vertical panel using the same bolts,
washers and nuts as mentioned above.
POST BRACKET MOUNTING HARDWARE
Two 3/8-16 x 6" carriage bolts with fl at washers, lock
washers and lock nuts.
THE PROTECTOR SYSTEM
®
SAFETY SENSORS
Two pair of UL listed, outdoor, infrared safety sensors.
• LiftMaster Model 50-220
See page 25 for more information.
Additional Items For Purchase
The following items are REQUIRED to complete
the installation:
* UL Listed, Stranded, Direct Burial, UV Resistant Wire
Installed per the National Electric Code, NEC.
Distance from indoor AC
Outlet to Control Box
Wire Gauge Needed
100 ft. (30.5 m) or less 16 gauge
100 - 150 ft. (30.5 - 45.7 m)
14 gauge*
150 - 250 ft. (45.7 - 76.2 m)
12 gauge*
250 ft. (76.2 m) and above Not Recommended
