Chamberlain LA100 - Entrapment Zone Safety Sensor Placement

The Protector System
®
SAFETY SENSORS MODEL 50-220
This is a required accessory for secondary entrapment protection (not provided). To order call: 1-800-528-2806 or visit
our website www.liftmaster.com.
When properly connected and aligned, the sensor will detect an obstacle in the path of its electronic beam and not allow
the gate to move or stop the gate when moving.
Inside Property
ENTRAPMENT ZONE
Safety Sensors
EntrapmentEntrapment
DangerDanger
Entrapment Zone
Entrapment
Danger
Inside Property
Outside Property
CLOSE
Safety Sensors
Entrapment ZoneEntrapment Zone

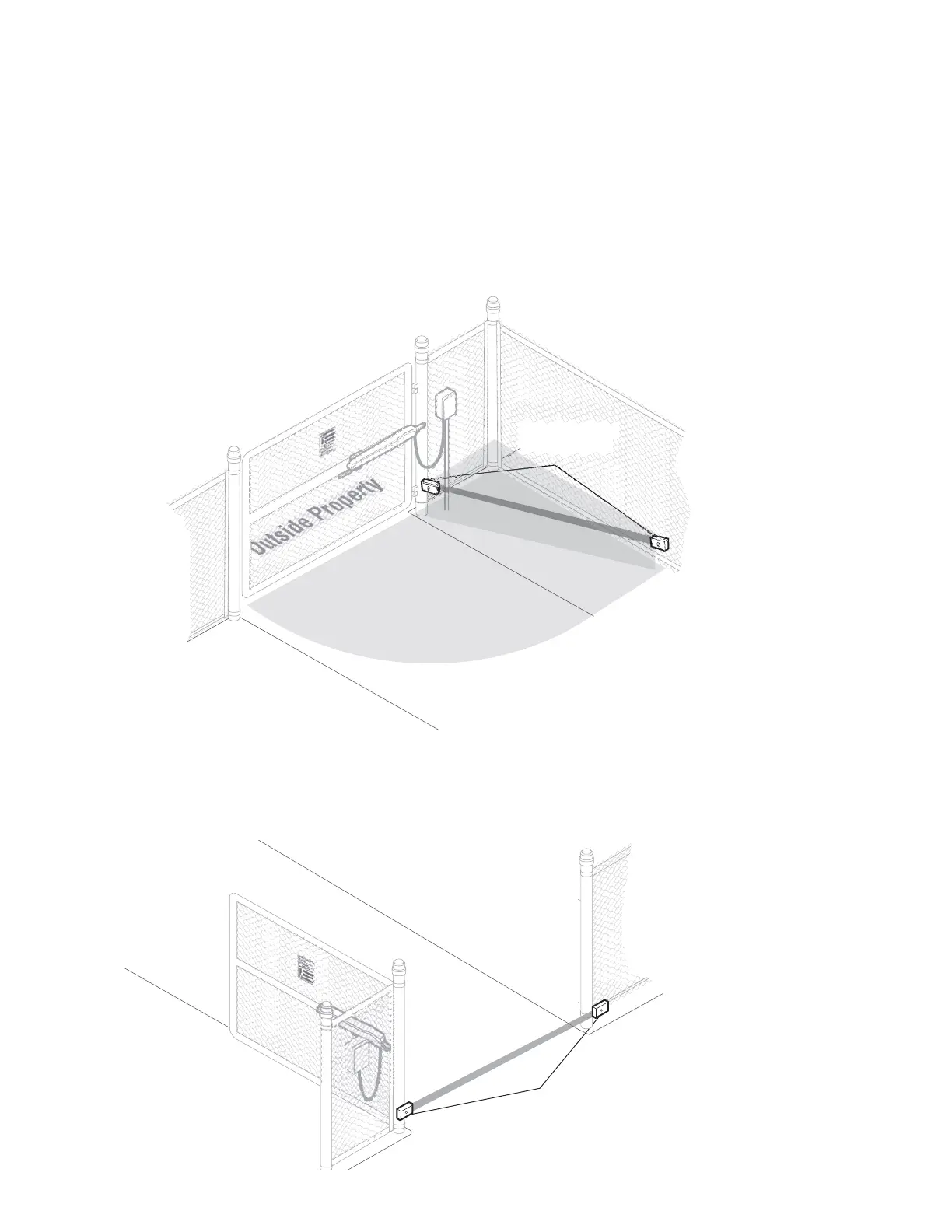

Entrapment Zone Safety Sensor Placement
ENTRAPMENT ZONE:
An area where an object could be caught or held in position that increases the risk of injury.
CLOSE Safety Reversing Sensor Placement
25 Programming
