22
OPERATOR POWER SOURCE
DIRECT PLUG-IN TRANSFORMER (120 VAC)
Wire Gauge 14 350 feet (107 m)
Wire Gauge 12 525 feet (160 m)
Wire Gauge 10 850 feet (259 m)
OR
EXTERNAL PLUG-IN TRANSFORMER (24 VAC)
Wire Gauge 18 150 feet (46 m)
Wire Gauge 16 250 feet (76 m)
Wire Gauge 14 400 feet (122 m)
Wire Gauge 12 600 feet (183 m)
Wire Gauge 10 1,000 feet (305 m)
NOTE: Use copper conductors ONLY.

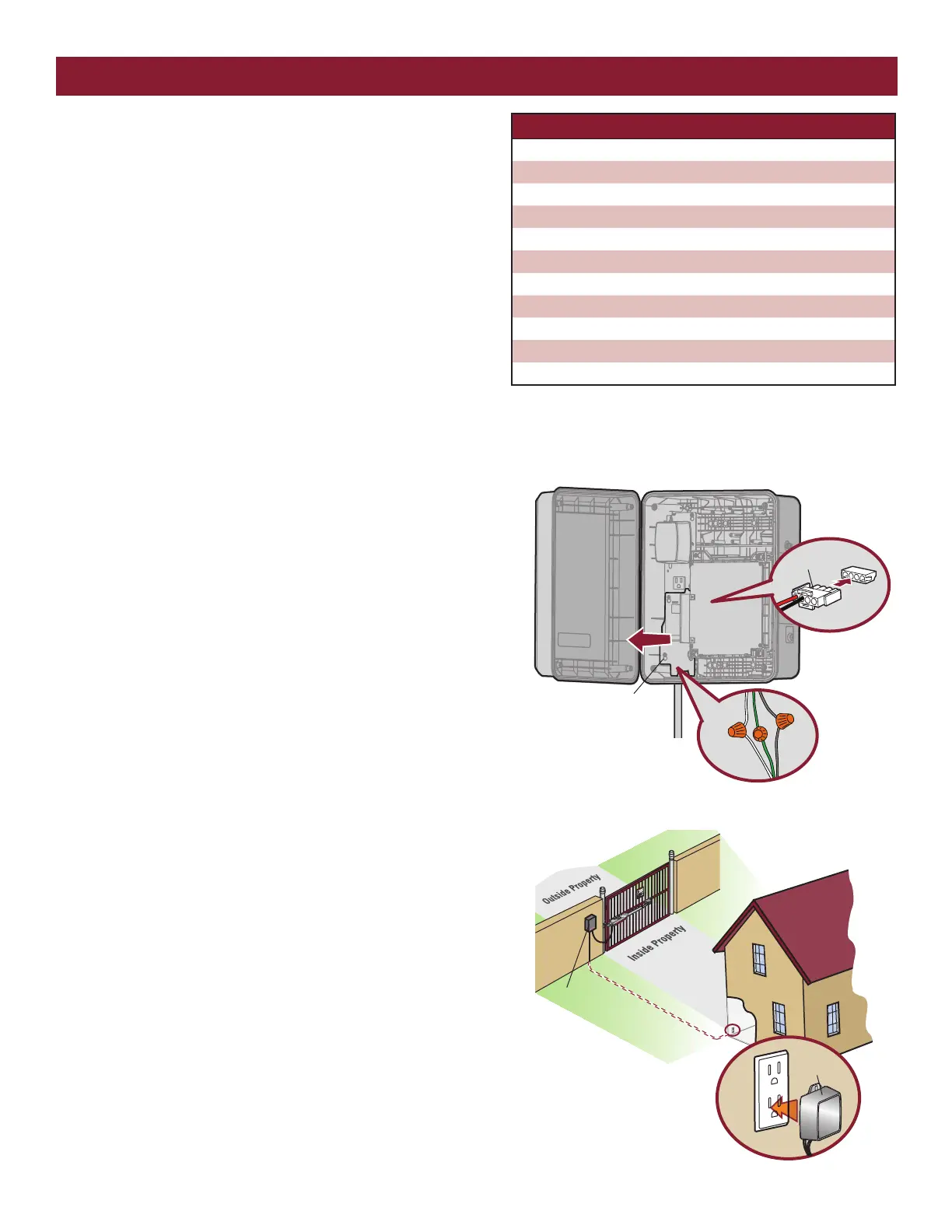

INSTALLATION
STEP 10
POWER WIRING
SOLAR APPLICATIONS: For solar applications refer to Solar Panels
section in the Appendix. Follow the directions according to your
application.
NOTE: All power wiring should be on a dedicated circuit, calculated using
NEC guidelines. Local codes and conditions must be reviewed for
suitability of wire installation.
1. Turn off the AC power from the main power source circuit breaker.
2. Run the AC power wires to the control box.
3. Remove the junction box cover.
4. Connect the green wire to the earth ground rod wire using a wire nut.
5. Connect the white wire to NEUTRAL using a wire nut.
6. Connect the black wire to HOT using a wire nut.
7. Replace the junction box cover. Ensure the wires are not pinched.
8. Plug the J15 plug into the control board. The control board will
power up.
NOTE:
You may see a small spark when plugging the J15
plug into the board.
9. Turn ON AC power to the operator.
Junction Box Cover
STANDARD CONTROL BOX
J15 Plug
EXTERNAL PLUG-IN TRANSFORMER
Control Box
Transformer
To Next Page
