DIAGNOSTICS
GND
L
N
Battery
12V 7AH
Battery
12V 7AH
Field Wiring
Black
Red
To J15
Primary Operator
Secondary Operator
Input Power Connection
Accessory
Power Outlets
Attach to Metal Chassis
Attach to Outlet
Metal Chassis With
a Single Screw
Black
Red
Transformer
(Optional)
Coaxial Antenna Cable
Antenna
Photoelectric Sensors
Edge
Edge
Photoelectric Sensors
Alarm
White
White
Yellow
Reset Switch
Red
Black
Two 12V Solar Panels in Series
Black
Red
Blocking
Diode

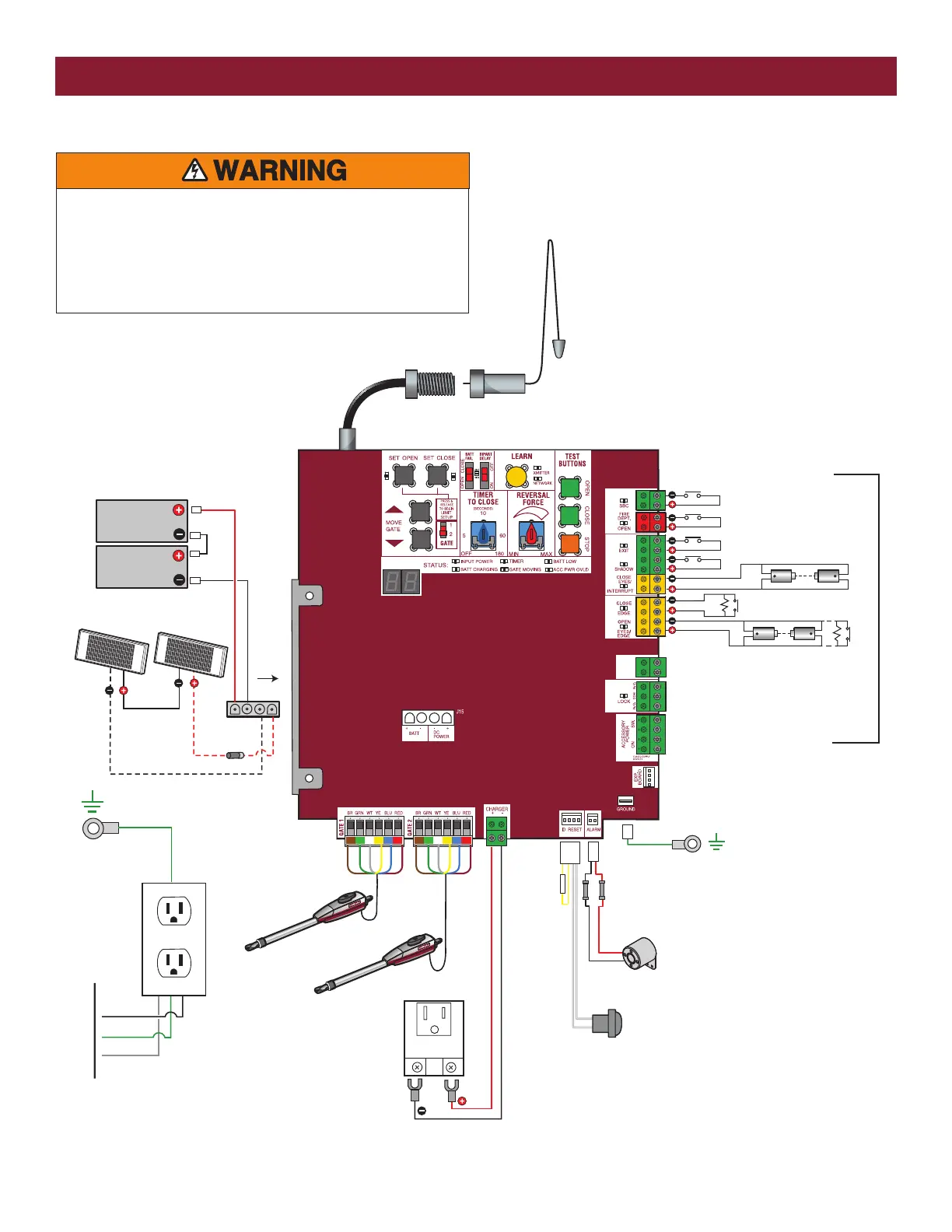

WIRING DIAGRAM
To protect against fire and electrocution:
• DISCONNECT power (AC or solar and battery) BEFORE installing or
servicing operator.
For continued protection against fire:
• Replace ONLY with fuse of same type and rating.
STANDARD CONTROL BOX
