INTRODUCTION
Usage Classification Class I, II, & III
Main AC Supply 120 Vac, .5 Amps (6.5 Amps including Accessory Outlets)
System Operating Voltage 24 Vdc Battery Run / Direct Plug-in Transformer Charge
Accessory Power 24 Vdc, 500mA max. for ON + SW (switched)
Solar Power Max 24 Vdc at 60 watts max.
Maximum Gate Weight/Length 850 lbs. (385.6 kg) / 10 ft (3.0 m)
750 lbs. (340.2 kg) / 12 ft (3.7 m)
650 lbs. (294.8 kg) / 14 ft (4.3 m)
550 lbs. (249.5 kg) / 16 ft (4.9 m)
90 Degree Travel Time* 15-18 seconds
Maximum Travel Range* 115 degrees
Maximum Daily Cycle Rate 100 cycles / day
Maximum Duty Cycle 4 min on
Operating Temperature -20°C to 60°C (-4°F to 140°F)
Expansion Board Optional
Inherent Entrapment Protection (Type A) Dual - RPM and Current Sense
External Entrapment Protection (Type B1 and/or Type B2) 3 inputs per board - any combination of up to 3 photoelectric sensors and up to 2
edge sensors
*Travel time and range are affected by A and B mounting dimensions

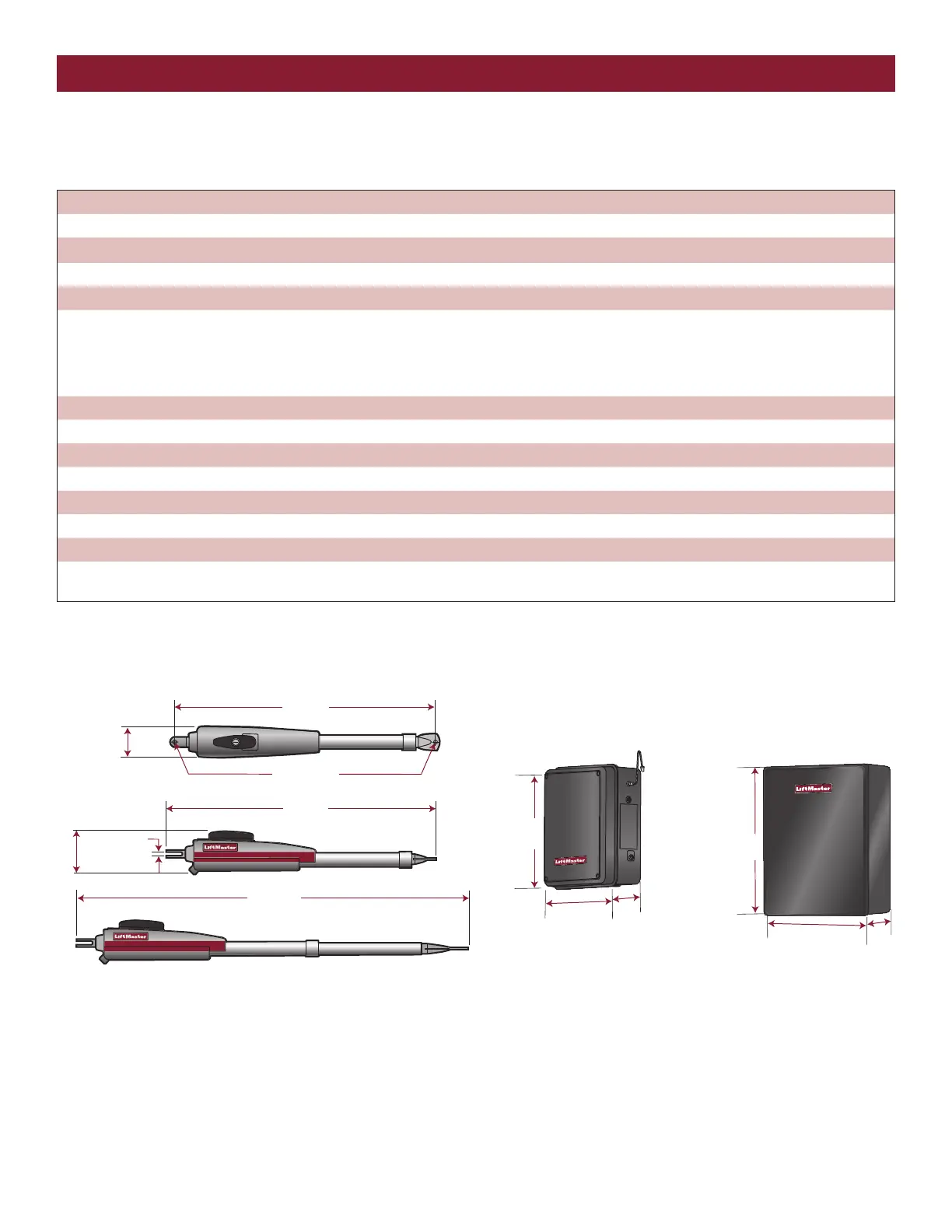

SPECIFICATIONS
This model is intended for use in vehicular swing gate applications:
Weight: 13.2 lbs. (6 kg.)
36-5/16"
(92.2 cm)
1/2" DIA.
(1.3 cm DIA.)
4-1/2"
(11.2 cm)
1/4"
(0.635 cm)
37-3/8"
(94.9 cm)
53-1/2"
(136 cm)
4"
(10.2 cm)
Standard Control Box
16-7/16"
(41.8 cm)
14-3/8"
(36.5 cm)
Large Metal Control Box
6-9/16"
(16.7 cm)
20-3/4"
(52.7 cm)
17-3/16"
(43.7 cm)
6-3/16"
(15.7 cm)
