Chamberlain SL585501U - CONTROL BOARD OVERVIEW; CONTROL BOARD REFERENCE; LEARN BUTTON; DIAGNOSTIC DISPLAY

26

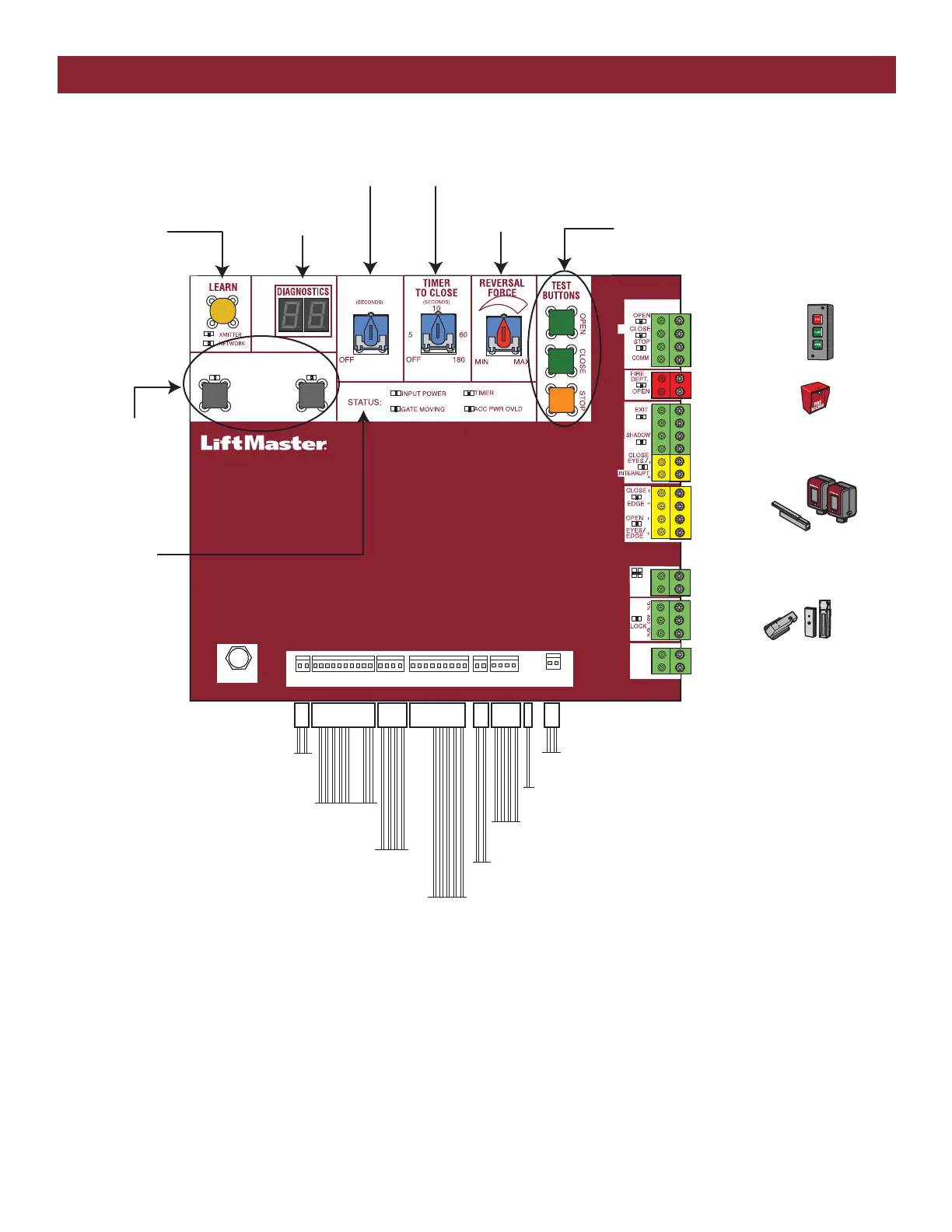

CONTROL BOARD OVERVIEW
COMM
LINK
BA
ANTENNA
CURRENT
SENSOR
MOTOR DRIVE
RPM & LIMITS
ALARM
EXP.
BOARD
24 VAC IN
CLASS 2 SUPPLY
24 VAC
500 mA MAX
ID RESET
GND
BIPART
DELAY
2
4
6
8
OPEN
LEFT
OPEN
RIGHT
HANDING
HANDING BUTTONS
Pages 22, 27
BIPART
DELAY
Page 27
LEARN BUTTON
Pages 27, 36-37
TEST BUTTONS
Pages 28, 41
CONTROL STATION
TERMINALS
Page 29
EXPANSION BOARD CONNECTION
Factory installed.
ACCESSORY POWER
TERMINALS
LOCK TERMINALS
Page 30
DUAL GATE TERMINALS
For dual gate connection.
EYES/EDGE TERMINALS
Page 30
LOOP TERMINALS
Page 29
FIRE DEPARTMENT
TERMINALS
Page 29
DIAGNOSTIC DISPLAY
Pages 27, 41-43
TIMER-TO-CLOSE
Page 27
FORCE DIAL
Page 28
STATUS LEDS
Page 28
GROUND
POWER
ALARM
Factory installed.
RPM SENSOR AND LIMITS
Factory installed.
MOTOR
Factory installed.
PRODUCT ID AND RESET
Factory installed.
CONTROL BOARD REFERENCE
CURRENT SENSOR
Factory installed
