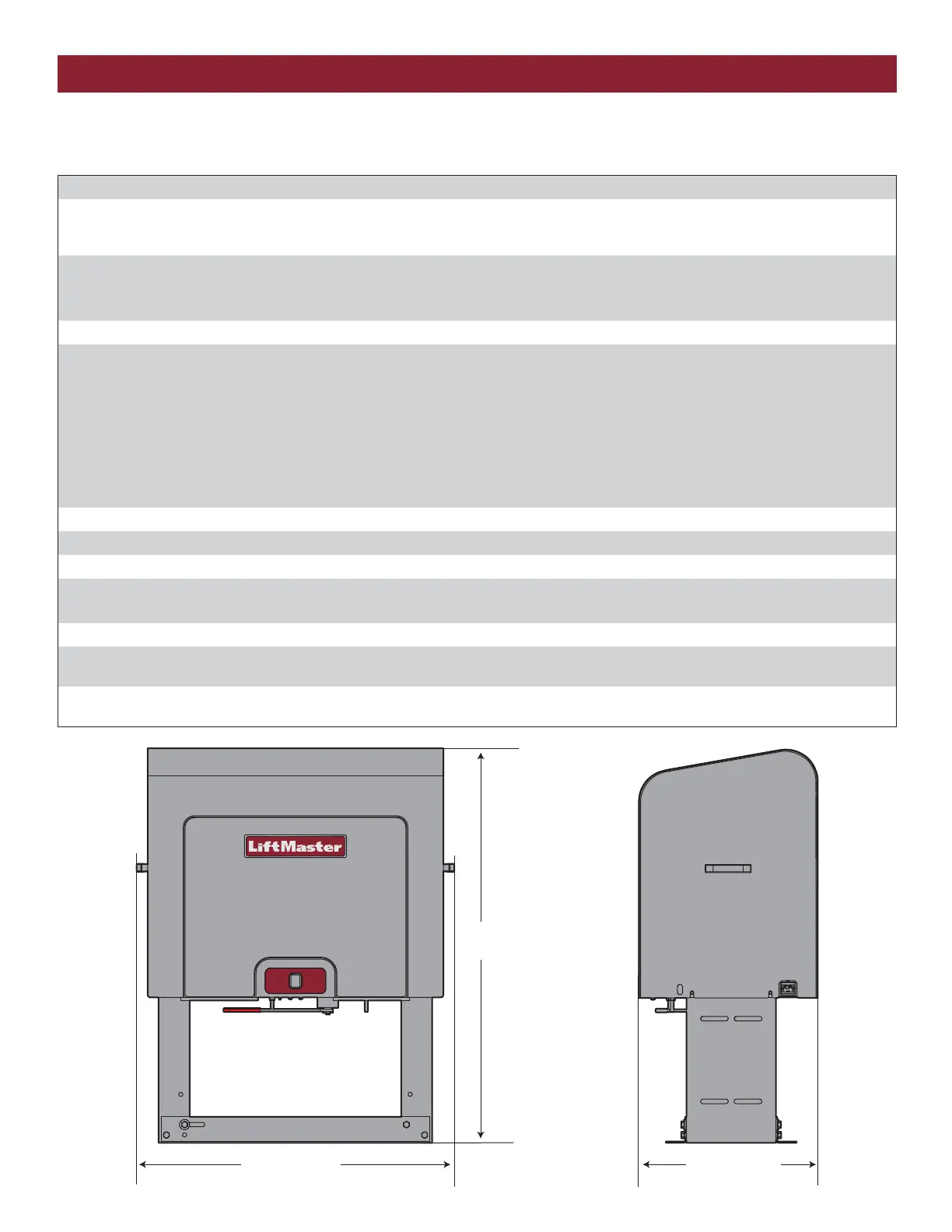

OPERATOR SPECIFICATIONS
This model is intended for use in vehicular slide gate applications:
INTRODUCTION
Usage Classification Class I, II, III, and IV
Accessory Power Main Control Board: 24 Vac, 500 mA max.
Terminal Strip: 24 Vac, 2.2 A max. for 120/208-240 Vac, Single Phase and 208-240/480 Vac Three Phase
24 Vac, 1.3 A max. for 575 Vac, Three Phase
Maximum Gate Weight 1/2 HP (1 Phase and 3 Phase): 1000 lbs.
1 HP (1 Phase and 3 Phase): 1600 lbs.
1-1/2 HP (1 Phase): 1900 lbs.
Minimum Gate Travel Distance 4 feet (1.2 m)
Maximum Gate Travel Distance 1/2 HP (1 Phase and 3 Phase): Cantilever ................................25 feet
OH Roller ................................45 feet
V-Track ...................................35 feet
1 HP (1 Phase and 3 Phase): Cantilever ...................................35 feet
OH Roller ...................................70 feet
V-Track ......................................50 feet
1-1/2 HP (1 Phase): Cantilever ..................................................40 feet
OH Roller ..................................................75 feet
V-Track .....................................................55 feet
Maximum Gate Travel Speed 1 foot/second
Maximum Daily Cycle Rate Continuous
Maximum Duty Cycle Continuous
Operating Temperature Without Heater: -20°C to 60°C (-4°F to 140°F)
With Optional Heater: -40°C to 60°C (-40°F to 140°F)
Expansion Board Provided
Inherent Entrapment Protection
(Type A)
RPM
External Entrapment Protection
(Type B1 and/or Type B2)
3 inputs per board - any combination of up to 3 photoelectric sensors and up to 2 edge sensors
30.6" (77.7 cm)
38"
(96.5 cm)
18" (45.7 cm)
