11 Typical Installation - Trolley

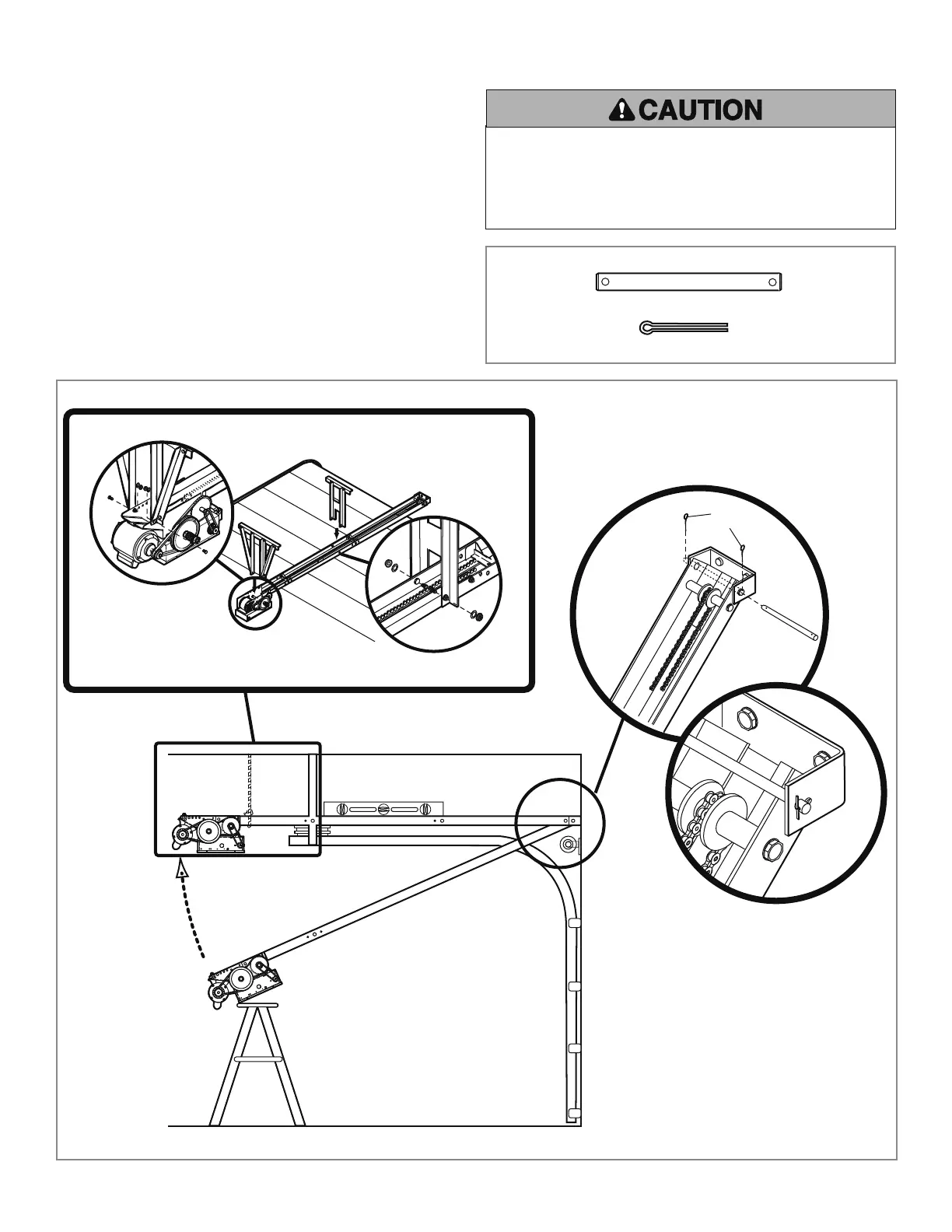

ATTACH THE TRACK TO THE HEADER BRACKET AND HANG THE OPERATOR
4
Secure the operator using the appropriate fasteners and
locking hardware to support the weight of the operator.
1
4
3
2
To avoid possible SERIOUS INJURY from a falling operator:
• Fasten the operator SECURELY to structural supports of the
building.
• Concrete anchors MUST be used if installing ANY brackets
into masonry.
1
Align the track with the header bracket.
2
3
Insert the clevis pin through the track and header bracket
holes. Secure with the fasteners.
Swing the operator up and ensure the operator is level.
HARDWARE
Clevis Pin (1)
Cotter pins (2)
A
A
B
B
To Next Page
